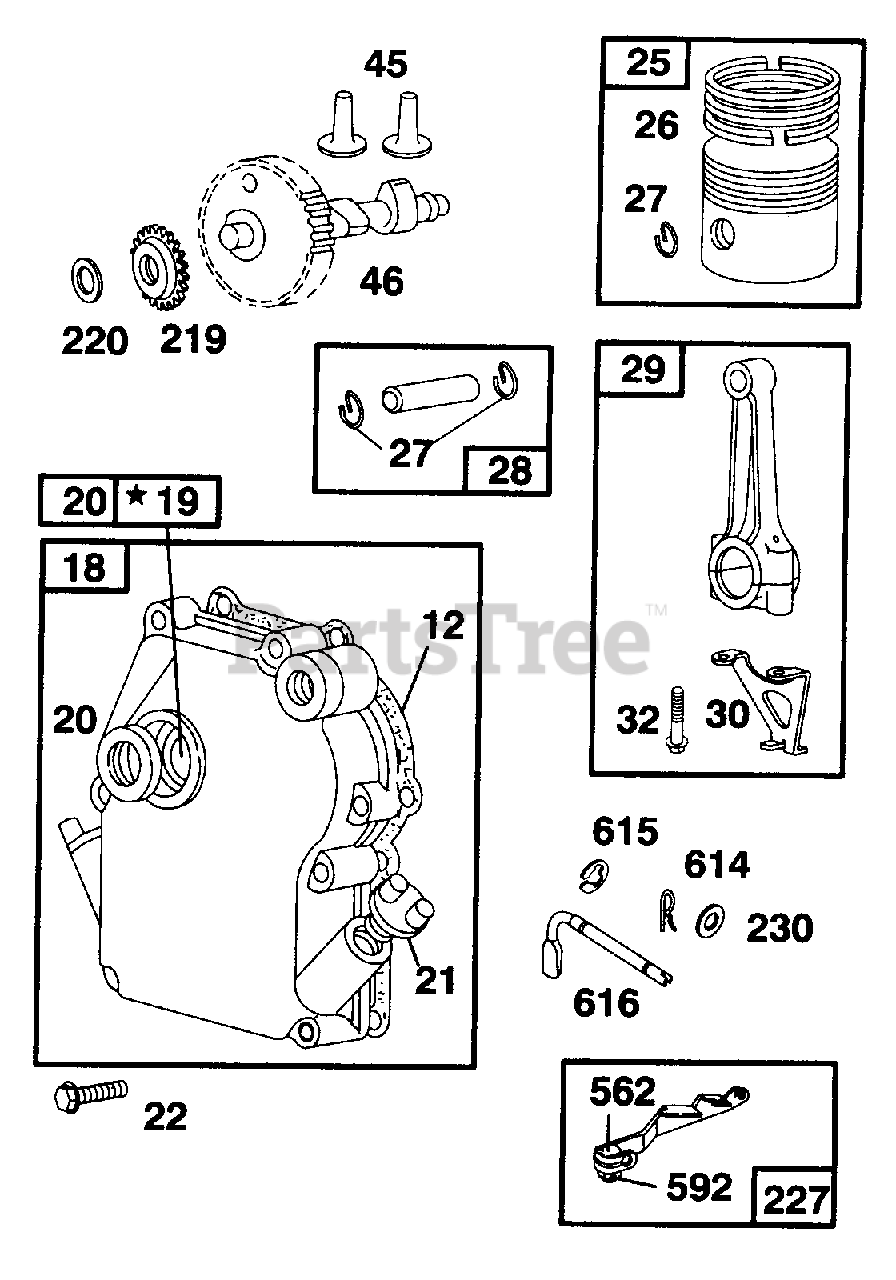

685 (243-685-100) - Cub Cadet Walk-Behind Blower (1993) B&S 5 HP Crankcase and Piston Ass'y Parts Diagram

Walk-Behind Blower

B&S 5 HP Crankcase and Piston Ass'y Parts Diagram

  • Title

12

Cub Cadet BS-270080

Gasket--Crankcase (.015" Thick, Std.)

$

$

Not available

Cub Cadet BS-270125

Gasket--Crankcase (.005" Thick)

$9.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270126

Gasket--Crankcase (.009" Thick)

$8.49

$

In Stock, only 2 left!

0

18

Cub Cadet BS-493916

Cover Ass'y.--Crankcase

$

$

Not available

19

Cub Cadet BS-495660

Bushing--Crankcase Cover

$

$

Not available

20

Cub Cadet BS-298504

Seal--Oil
(Superseded to BS-495307S)

$8.99

$

In Stock, only 1 left!

0

21

Cub Cadet BS-66768

Plug--Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-94682

Screw Cover Mtg.

$

$

Not available

25

Cub Cadet BS-298904

Piston Ass'y. (Std.)

$82.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298905

Piston Assembly (.010" O.S.)

$50.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298906

Piston Assembly (.020" O.S )

$

$

Not available

Cub Cadet BS-298907

Piston Assembly (.030" O.S.)

$

$

Not available

26

Cub Cadet BS-298982

Ring Set--Piston Std.

Note: For Chrome Ring Set (Standard Size), Part No. BS-299742

$48.99

$

In Stock, Qty 8

0

Cub Cadet BS-298983

Ring Set--Piston (.010" O.S.)

Note: For Chrome Ring Set (Standard Size), Part No. BS-299742

$

$

Not available

Cub Cadet BS-298984

Ring Set--Piston (.020" O.S.)

Note: For Chrome Ring Set (Standard Size), Part No. BS-299742

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298985

Ring Set--Piston (.030" O.S.)

Note: For Chrome Ring Set (Standard Size), Part No. BS-299742

$23.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock--Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Ass'y.--Piston (Standard)

$8.99

$

In Stock, only 2 left!

0

Cub Cadet BS-298908

Pin Ass'y.--Piston (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-299430

Rod Ass'y.--Connecting

Note: For Conn. Rod With .020" Undersize Crankpin Bore Order No. BS-390459.

$40.99

$

In Stock, only 1 left!

0

30

Cub Cadet BS-221890

Dipper--Conn. Rod
(Superseded to BS-691759)

$8.49

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-94745

Screw--Conn. Rod

$

$

Not available

45

Cub Cadet BS-260642

Tappet--Valve

$

$

Not available

46

Cub Cadet BS-212733

Gear--Cam

$

$

Not available

219

Cub Cadet BS-494845

Gear--Governor

$

$

Not available

220

Cub Cadet BS-221551

Washer--Thrust
(Superseded to BS-691724)

$5.49

$

In Stock, only 2 left!

0

227

Cub Cadet BS-490374

Lever Ass'y.--Governor

$

$

Not available

230

Cub Cadet BS-222450

Washer--Gov. Lever
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

562

Cub Cadet BS-92613

Bolt--Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut--Hex

$

$

Not available

614

Cub Cadet BS-93306

Pin--Cotter

$

$

Not available

615

Cub Cadet BS-93307

Retainer E-Ring

$5.99

$

In Stock, only 3 left!

0

616

Cub Cadet BS-231077

Crank--Governor

$

$

Currently unavailable

Cub Cadet BS-495603

Gasket Set

$32.99

$

In Stock, Qty 20+

0

Cub Cadet BS-299742

Chrome Ring Set (Standard Size)

$

$

Not available

Cub Cadet BS-390459

.020" Undersize Crankpin Bore

$

$

Not available
