684190 - Toro Rear Grass Catcher Assembly HOUSING AND SHROUD GROUP MODELS S21ZSM & S21ZSR Parts Diagram

Rear Grass Catcher Assembly

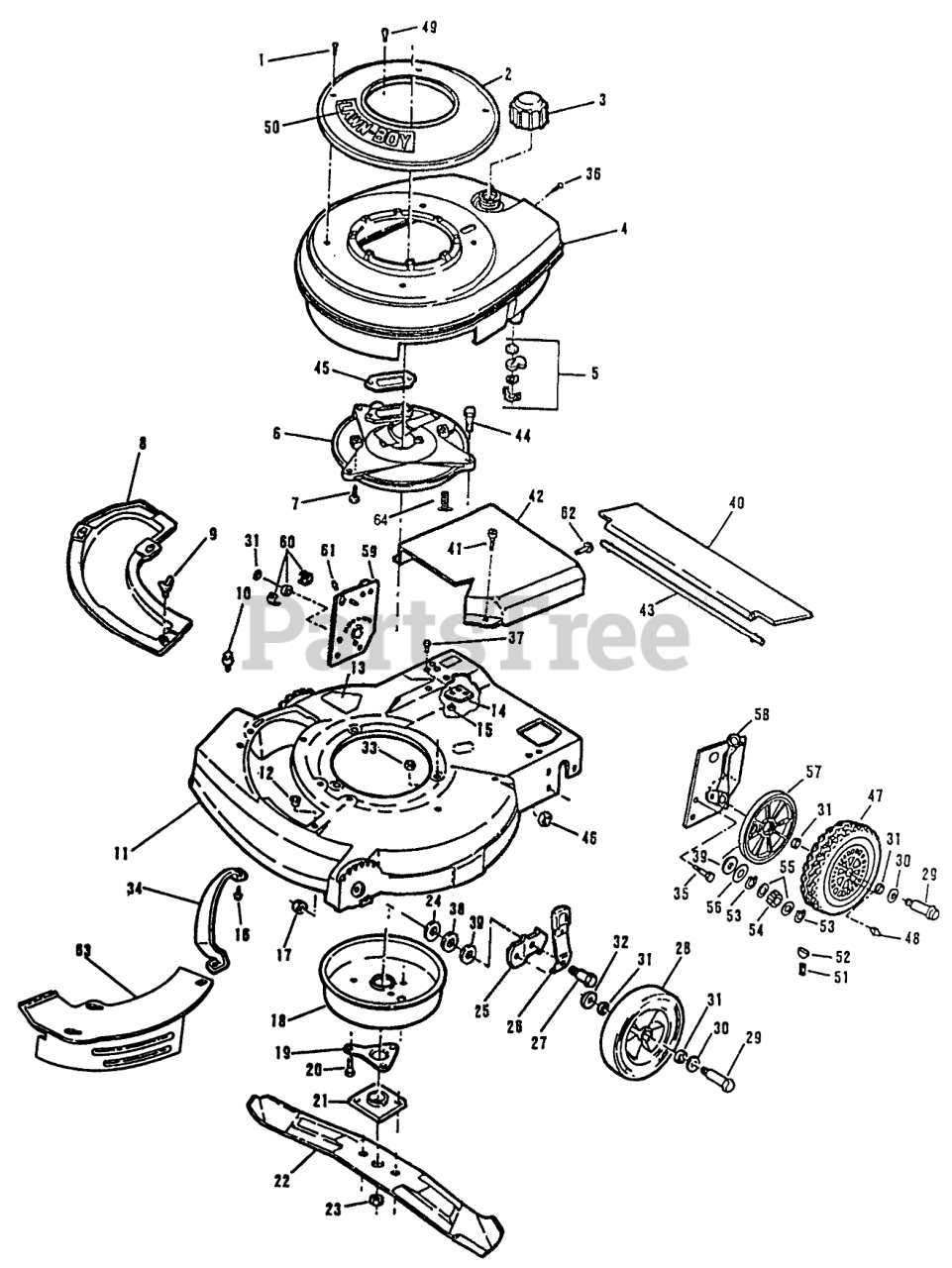

HOUSING AND SHROUD GROUP MODELS S21ZSM & S21ZSR Parts Diagram

  • Title

1

Toro 611395

SCREW S
(Superseded to 611543)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

2

Toro 684570

STARTER BASE&NUTB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Toro 682755

FUEL CAP & INSERT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

Toro 607213

GASKET S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

Toro 607213

GASKET S

Note: Parts shown with bullet included with assembly above. (

$1.99

$

In Stock, Qty 20+

0

Toro 607213

GASKET S

Note: ) For Model S21ZSM Only.

$1.99

$

In Stock, Qty 20+

0

Toro 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 11

0

Toro 609150

BAFFLE - FOAM SM

Note: Parts shown with bullet included with assembly above. (

$6.49

$

In Stock, Qty 11

0

Toro 609150

BAFFLE - FOAM SM

Note: ) For Model S21ZSM Only.

$6.49

$

In Stock, Qty 11

0

4

Toro 683916

Shroud-Engine
(Superseded to 16-5539)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Toro 681818

SHUT OFF VALVE KIT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Toro 681818

SHUT OFF VALVE KIT

Note: Parts shown with bullet included with assembly above. (

$

$

Not available

5

Toro 681818

SHUT OFF VALVE KIT

Note: ) For Model S21ZSM Only.

$

$

Not available

6

Toro 611802

PLATE F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$243.99

$

In Stock, only 1 left!

0

7

Toro 607601

SCREW V

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

8

Toro 607560

CoverPlate
(Superseded to 95-7052)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$36.99

$

In Stock, only 1 left!

0

9

Toro 606733

WING SCREW LAWRE
(Superseded to 109-1063)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

10

Toro 607809

Bolt
(Superseded to 614677)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 12

0

11

Toro 684517

Housing Assembly
(Superseded to 684691)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1035.99

$

Usually ships in 3-6 days

0

12

Toro 604604

Grommet
(Superseded to 94-1610)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 9

0

12

Toro 604604

Grommet
(Superseded to 94-1610)

Note: Parts shown with bullet included with assembly above. (

$1.49

$

In Stock, Qty 9

0

12

Toro 604604

Grommet
(Superseded to 94-1610)

Note: ) For Model S21ZSM Only.

$1.49

$

In Stock, Qty 9

0

13

Toro 610640

Decal
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

13

Toro 610640

Decal
(Superseded to 43-8480)

Note: Parts shown with bullet included with assembly above. (

$6.99

$

In Stock, Qty 6

0

13

Toro 610640

Decal
(Superseded to 43-8480)

Note: ) For Model S21ZSM Only.

$6.99

$

In Stock, Qty 6

0

14

Toro 613042

BOLSTER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Toro 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

16

Toro 608418

Screw
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

17

Toro 603733

Nut
(Superseded to 603773)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

18

Toro 682876

MUFFLER COVER F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$165.99

$

Usually ships in 3-6 days

0

19

Toro 609786

SUPPORT F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

20

Toro 609471

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

21

Toro 677525

PLATE AND COLLAR ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

22

Toro 683682

21" Blade
(Superseded to 612543-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

23

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

24

Toro 608834

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

25

Toro 608833

Bracket
(Superseded to 608833-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

26

Toro 153444

SPRING ARM ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Toro 610646

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

28

Toro 684135

WHEEL&TIRE 6"
(Superseded to 105-8618)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$51.99

$

Usually ships in 3-6 days

0

29

Toro 603441

BOLT WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

30

Toro 605256

WASHER-PLAIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

31

Toro 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

32

Toro 603620

WASHER WROUGHT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

33

Toro 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

34

Toro 608175

BAR-TOE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$77.99

$

Usually ships in 3-6 days

0

35

Toro 610404

Screw
(Superseded to 146209)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

36

Toro 608997

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

37

Toro 609891

Screw
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Toro 146014

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Toro 146015

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

40

Toro 614315

SHIELD-TRAILING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

41

Toro 606452

SCREW SEMS TRM HEX HD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Toro 613060

COVER DRIVE PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Toro 614314

ROD-TRAILING SHIELD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Toro 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

45

Toro 609420

Gasket
(Superseded to 93-1233)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 6

0

46

Toro 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

47

Toro 683626

WHEEL AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Toro 611831

FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

48

Toro 611831

FITTING LINCOLN

Note: Parts shown with bullet included with assembly above. (

$8.49

$

Usually ships in 3-6 days

0

48

Toro 611831

FITTING LINCOLN

Note: ) For Model S21ZSM Only.

$8.49

$

Usually ships in 3-6 days

0

Toro 145439

BUSHING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 145439

BUSHING

Note: Parts shown with bullet included with assembly above. (

$

$

Not available

Toro 145439

BUSHING

Note: ) For Model S21ZSM Only.

$

$

Not available

49

Toro 612428

SCREW SEMS SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

50

Toro 614265

APPLIQUE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Toro 612067

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

52

Toro 612066

KEY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

53

Toro 607676

RET RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

54

Toro 612064

PINION BROCKWAY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$29.99

$

Usually ships in 3-6 days

0

55

Toro 612068

SPACER/GR ALGHNY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$18.99

$

Usually ships in 3-6 days

0

56

Toro 608030

THRUST WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

57

Toro 613512

W/COVER WHITE PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Toro 684588

HEIGHT ADJ AY-LH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 683195

REAR AXLE BEARING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 683195

REAR AXLE BEARING

Note: Parts shown with bullet included with assembly above. (

$

$

Not available

Toro 683195

REAR AXLE BEARING

Note: ) For Model S21ZSM Only.

$

$

Not available

Toro 603615

FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 603615

FITTING LINCOLN

Note: Parts shown with bullet included with assembly above. (

$

$

Not available

Toro 603615

FITTING LINCOLN

Note: ) For Model S21ZSM Only.

$

$

Not available

59

Toro 684587

HEIGHT ADJ AY-RH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Toro 683195

REAR AXLE BEARING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Toro 683195

REAR AXLE BEARING

Note: Parts shown with bullet included with assembly above. (

$

$

Not available

60

Toro 683195

REAR AXLE BEARING

Note: ) For Model S21ZSM Only.

$

$

Not available

61

Toro 603615

FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Toro 603615

FITTING LINCOLN

Note: Parts shown with bullet included with assembly above. (

$

$

Not available

61

Toro 603615

FITTING LINCOLN

Note: ) For Model S21ZSM Only.

$

$

Not available

62

Toro 613028

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Toro 681906

Mulcher Plate Kit w/Decal
(Superseded to 92-8630)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 614334

Decal-Mulcher Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

Toro 614334

Decal-Mulcher Plate

Note: Parts shown with bullet included with assembly above. (

$

$

Currently unavailable

Toro 614334

Decal-Mulcher Plate

Note: ) For Model S21ZSM Only.

$

$

Currently unavailable

64

Toro 613500

SCREW-SEMS F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.49

$

Usually ships in 3-6 days

0
