684190 - Toro Rear Grass Catcher Assembly HOUSING AND SHROUD GROUP MODELS: M21EMRB, C & D Parts Diagram

Rear Grass Catcher Assembly

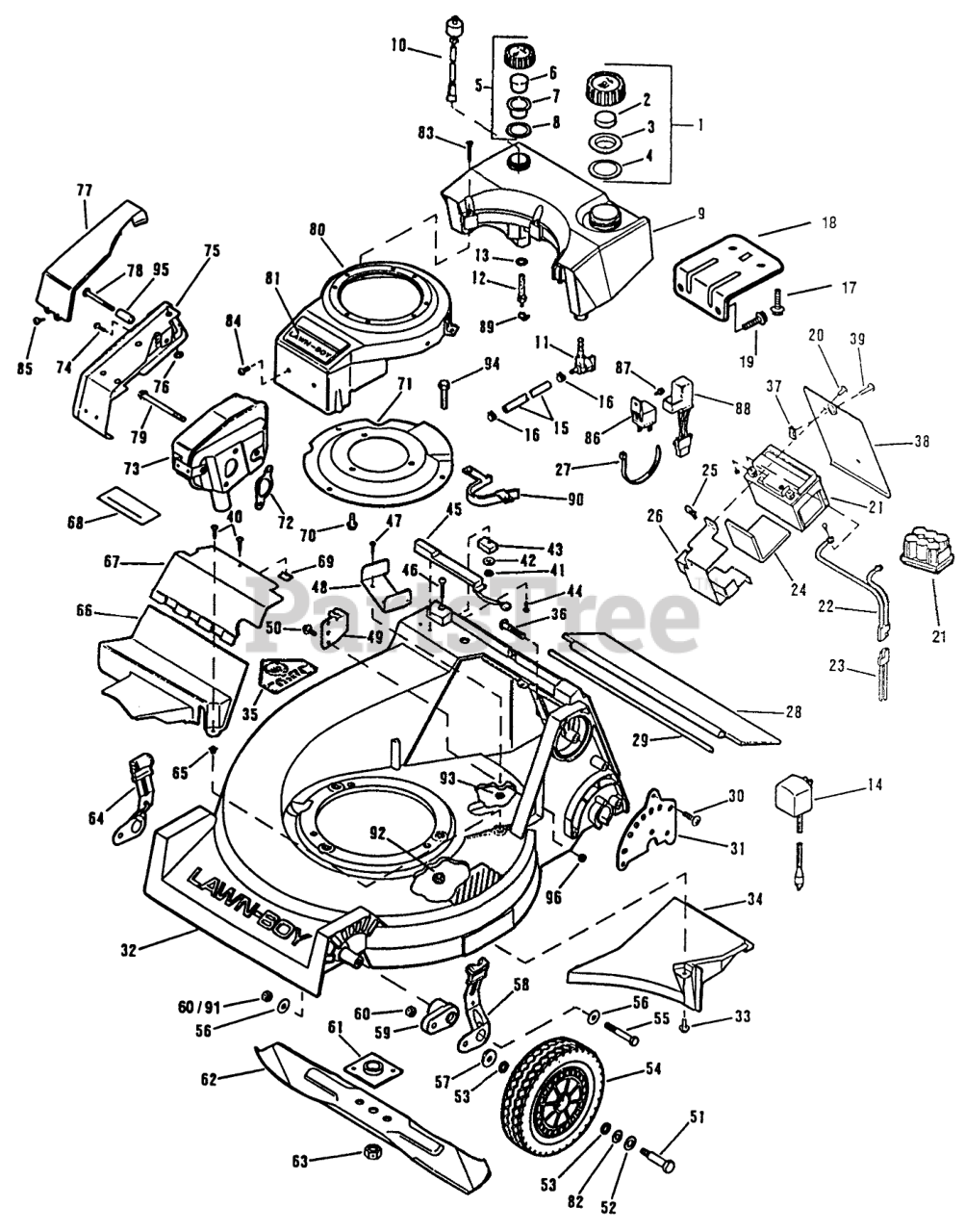

HOUSING AND SHROUD GROUP MODELS: M21EMRB, C & D Parts Diagram

  • Title

1

Toro 684104

CAP AY - FUEL M

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Toro 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 11

0

2

Toro 609150

BAFFLE - FOAM SM

Note: NOTE: Parts shown with bullet included with assembly above.

$6.49

$

In Stock, Qty 11

0

3

Toro 613310

Cover
(Superseded to 614271)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

3

Toro 613310

Cover
(Superseded to 614271)

Note: NOTE: Parts shown with bullet included with assembly above.

$5.49

$

Usually ships in 3-6 days

0

4

Toro 613311

GASKET-FUELCAP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Toro 613311

GASKET-FUELCAP SM

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

5

Toro 684105

CAP AY. OIL M

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Toro 611114

FILTER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

6

Toro 611114

FILTER S

Note: NOTE: Parts shown with bullet included with assembly above.

$3.99

$

Usually ships in 3-6 days

0

7

Toro 613312

Cover
(Superseded to 614272)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Toro 613312

Cover
(Superseded to 614272)

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

8

Toro 613313

GASKET, OILCAP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Toro 613313

GASKET, OILCAP SM

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

9

Toro 684375

Fuel/Oil Tank
(Superseded to 93-1208)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Toro 684395

Fuel/Oil Tank (BMRC & D)
(Superseded to 93-1208)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Toro 684376

SWITCH AY-OIL S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$131.99

$

Usually ships in 3-6 days

0

10

Toro 684376

SWITCH AY-OIL S

Note: NOTE: Parts shown with bullet included with assembly above.

$131.99

$

Usually ships in 3-6 days

0

10

Toro 684357

SWITCH AY,OIL S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Toro 684357

SWITCH AY,OIL S

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

11

Toro 684093

Shut-OffValve-Fuel

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Toro 684093

Shut-OffValve-Fuel

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

12

Toro 684336

OIL FITTING/FIL SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Toro 684336

OIL FITTING/FIL SM

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

13

Toro 613948

O-RING SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Toro 684180

Battery Charger
(Superseded to 99-6049)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$213.99

$

Usually ships in 3-6 days

0

15

Toro 613531

GAS LINE SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Toro 613489

HOSE CLAMP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

17

Toro 614181

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Toro 614182

Fuel Tank Bracket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Toro 613111

SCREW-HEX W.H. SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

20

Toro 800019

Bolt
(Superseded to 614512)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Toro 683637

Battery-12V
(Superseded to 55-7520)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$200.99

$

Usually ships in 3-6 days

0

22

Toro 684250

HARNESS AY-BATT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Toro 684250

HARNESS AY-BATT

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

23

Toro 684562

WIRE HARNESS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$274.99

$

Usually ships in 3-6 days

0

24

Toro 612510

PAD-BATTERY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.49

$

In Stock, only 1 left!

0

24

Toro 613343

PAD-BATTERY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Toro 604227

SPEED NUT ARDEN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Toro 613344

BRACKET B'TRY ARGO

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Toro 614249

TIE-CABLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

27

Toro 320107

Tie Wrap
(Superseded to 614249)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

28

Toro 613322

Trailing Shied
(Superseded to 99-6408)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Toro 610026

ROD ADVANCE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Toro 613381

SCREW-BUTTON HEAD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 1 left!

0

31

Toro 613323

PLATE HGT CMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$40.99

$

Usually ships in 3-6 days

0

32

Toro 684467

Housing Assy
(Superseded to 684688)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1574.99

$

Usually ships in 3-6 days

0

32

Toro 684229

Housing Assembly
(Superseded to 684689)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Toro 608418

Screw
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

33

Toro 608418

Screw
(Superseded to 46-6811)

Note: NOTE: Parts shown with bullet included with assembly above.

$3.49

$

In Stock, only 3 left!

0

34

Toro 613289

CHUTE BAFFLE NYL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Toro 613289

CHUTE BAFFLE NYL

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

35

Toro 610640

Decal
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

35

Toro 610640

Decal
(Superseded to 43-8480)

Note: NOTE: Parts shown with bullet included with assembly above.

$6.99

$

In Stock, Qty 6

0

36

Toro 613321

BOLT - RIBBED NECK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Toro 613321

BOLT - RIBBED NECK

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

Toro 613910

WASHER
(Superseded to 5-3177)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

Toro 613910

WASHER
(Superseded to 5-3177)

Note: NOTE: Parts shown with bullet included with assembly above.

$2.49

$

Usually ships in 3-6 days

0

37

Toro 613340

SPEED NUT LARSON

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

38

Toro 613346

DOOR-ACCESS ELECT.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Toro 613339

SCREW-CROSS RECESS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Toro 609807

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 608997

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

41

Toro 130450

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Toro 613625

LOCKWASHER #10

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Toro 684193

MAGNET ASSY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Toro 613749

SCREW-STAINLESS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 613028

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Toro 684366

SWITCH ASSEMBLY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684192

SWITCH AY DELTA

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Toro 303724

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 605119

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

47

Toro 606691

SCREW TH FORM TEB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Toro 613528

Belt Guide

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

49

Toro 613580

ANCHOR-CABLE
(Superseded to 115-4453)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Toro 609891

Screw
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Toro 614139

BOLT WHEEL QUAL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Toro 605256

WASHER-PLAIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

53

Toro 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

54

Toro 683179

WHEEL&TIRE 8" TRI

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$104.99

$

In Stock, only 2 left!

0

55

Toro 613320

SCREW - HEX HEAD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Toro 610361

WASHER PLAIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

57

Toro 608834

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

58

Toro 684220

KNOB & SPRING CMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Toro 613917

ARM HGT ADJ BLACK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$106.99

$

Usually ships in 3-6 days

0

Toro 613319

FRT HEIGHT ADJ ARM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Toro 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

Toro 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

61

Toro 677525

PLATE AND COLLAR ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

62

Toro 683682

21" Blade
(Superseded to 612543-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

63

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

64

Toro 684219

KNOB & SPRING CMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

65

Toro 611380

NUT-CLIP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

66

Toro 613532

COVER-DRIVE-LOWER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

67

Toro 684547

COVER-UPPER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

68

Toro 613840

DECAL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

68

Toro 613840

DECAL

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

69

Toro 613341

NUT-SPEED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

70

Toro 613483

SCREW SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

71

Toro 613206

PLATE SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$147.99

$

Usually ships in 3-6 days

0

72

Toro 613266

GASKET - EXH SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

73

Toro 684091

Muffler
(Superseded to 684579)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

74

Toro 700056

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

75

Toro 684157

MUFFLER GUARD AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$203.99

$

Usually ships in 3-6 days

0

76

Toro 613329

NUT-PUSH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

76

Toro 613329

NUT-PUSH

Note: NOTE: Parts shown with bullet included with assembly above.

$2.49

$

Usually ships in 3-6 days

0

77

Toro 613378

COVER MUFFLER CP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

77

Toro 613378

COVER MUFFLER CP

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

78

Toro 613372

SCREW SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

79

Toro 613282

SCREW-SEMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

80

Toro 684429

Shroud and Applique
(Superseded to 93-1219)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

81

Toro 614041

APPLIQUE SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

81

Toro 614041

APPLIQUE SM

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

82

Toro 146015

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

83

Toro 613330

Screw-FuelTank

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

84

Toro 613281

SCREW SM
(Superseded to 3274-31)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

85

Toro 613576

SCREW SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

86

Toro 682776

RELAY E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

87

Toro 607745

SCREW SM
(Superseded to 613269)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

88

Toro 684246

ELECTRONIC CUP ASSY. E
(Superseded to 100-2927)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

89

Toro 613516

CLAMP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

90

Toro 613557

GUIDE-BELT SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

91

Toro 603773

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

92

Toro 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

93

Toro 611258

NUT C/LOCK E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

94

Toro 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

95

Toro 613371

SPACER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

96

Toro 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0
