684190 - Toro Rear Grass Catcher Assembly HOUSING AND SHROUD GROUP MODEL S19ZPNB Parts Diagram

Rear Grass Catcher Assembly

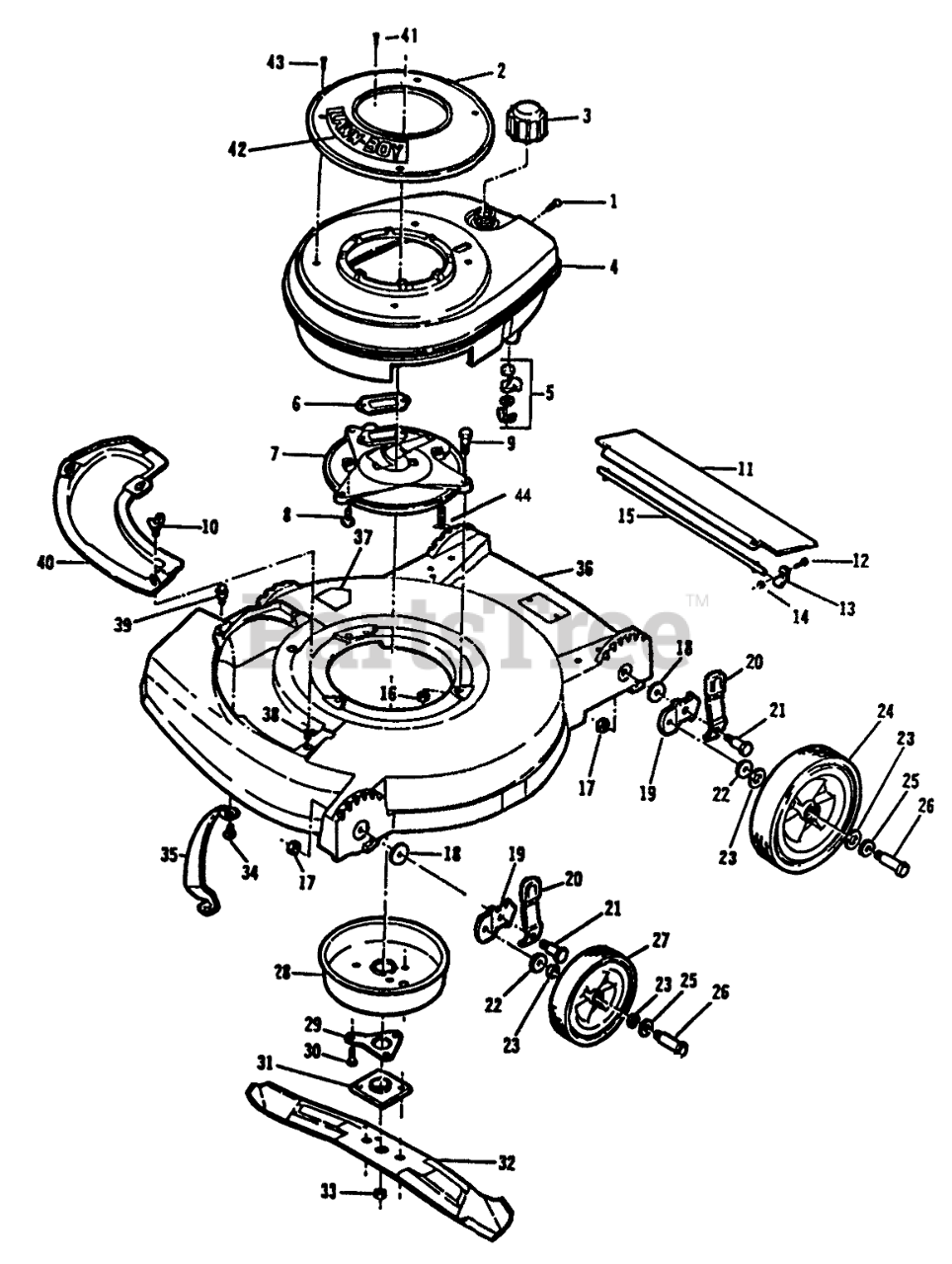

HOUSING AND SHROUD GROUP MODEL S19ZPNB Parts Diagram

  • Title

1

Toro 608997

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

2

Toro 684570

STARTER BASE&NUTB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Toro 682755

FUEL CAP & INSERT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

Toro 607213

GASKET S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

Toro 607213

GASKET S

Note: NOTE: Parts shown with bullet included with assembly above.

$1.99

$

In Stock, Qty 20+

0

Toro 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 11

0

Toro 609150

BAFFLE - FOAM SM

Note: NOTE: Parts shown with bullet included with assembly above.

$6.49

$

In Stock, Qty 11

0

4

Toro 683916

Shroud-Engine
(Superseded to 16-5539)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Toro 681818

SHUT OFF VALVE KIT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Toro 681818

SHUT OFF VALVE KIT

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

6

Toro 609420

Gasket
(Superseded to 93-1233)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 6

0

7

Toro 611802

PLATE F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$243.99

$

In Stock, only 1 left!

0

8

Toro 607601

SCREW V

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

9

Toro 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

10

Toro 606733

WING SCREW LAWRE
(Superseded to 109-1063)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

11

Toro 611014

SHIELD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Toro 609891

Screw
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Toro 608161

CLAMP ROD KMC

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

14

Toro 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

15

Toro 608160

ROD T/SHIELD ADV WIRE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Toro 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

17

Toro 603773

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

18

Toro 608834

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

19

Toro 608833

Bracket
(Superseded to 608833-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

20

Toro 153444

SPRING ARM ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Toro 610646

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

22

Toro 603620

WASHER WROUGHT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

23

Toro 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

24

Toro 684481

WHEEL&TIRE AY.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Toro 605256

WASHER-PLAIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

26

Toro 603441

BOLT WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

27

Toro 679514

Front Wheel
(Superseded to 678636)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

28

Toro 682876

MUFFLER COVER F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$165.99

$

Usually ships in 3-6 days

0

29

Toro 609786

SUPPORT F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

30

Toro 609471

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

31

Toro 677525

PLATE AND COLLAR ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

32

Toro 682909

Blade 19"
(Superseded to 612079-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$38.99

$

In Stock, only 1 left!

0

33

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

34

Toro 608418

Screw
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

35

Toro 608159

TOE BAR 19"

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Toro 684521

HSG AY-19" SERVICE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Toro 610640

Decal
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

37

Toro 610640

Decal
(Superseded to 43-8480)

Note: NOTE: Parts shown with bullet included with assembly above.

$6.99

$

In Stock, Qty 6

0

38

Toro 604604

Grommet
(Superseded to 94-1610)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 9

0

38

Toro 604604

Grommet
(Superseded to 94-1610)

Note: NOTE: Parts shown with bullet included with assembly above.

$1.49

$

In Stock, Qty 9

0

39

Toro 607809

Bolt
(Superseded to 614677)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 12

0

40

Toro 607560

CoverPlate
(Superseded to 95-7052)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$36.99

$

In Stock, only 1 left!

0

41

Toro 612428

SCREW SEMS SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

42

Toro 614265

APPLIQUE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Toro 611395

SCREW S
(Superseded to 611543)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

Toro 146014

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 146015

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

44

Toro 613500

SCREW-SEMS F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.49

$

Usually ships in 3-6 days

0
