684190 - Toro Rear Grass Catcher Assembly ENGINE GROUP MODELS: M21ZMRB, C & D Parts Diagram

Rear Grass Catcher Assembly

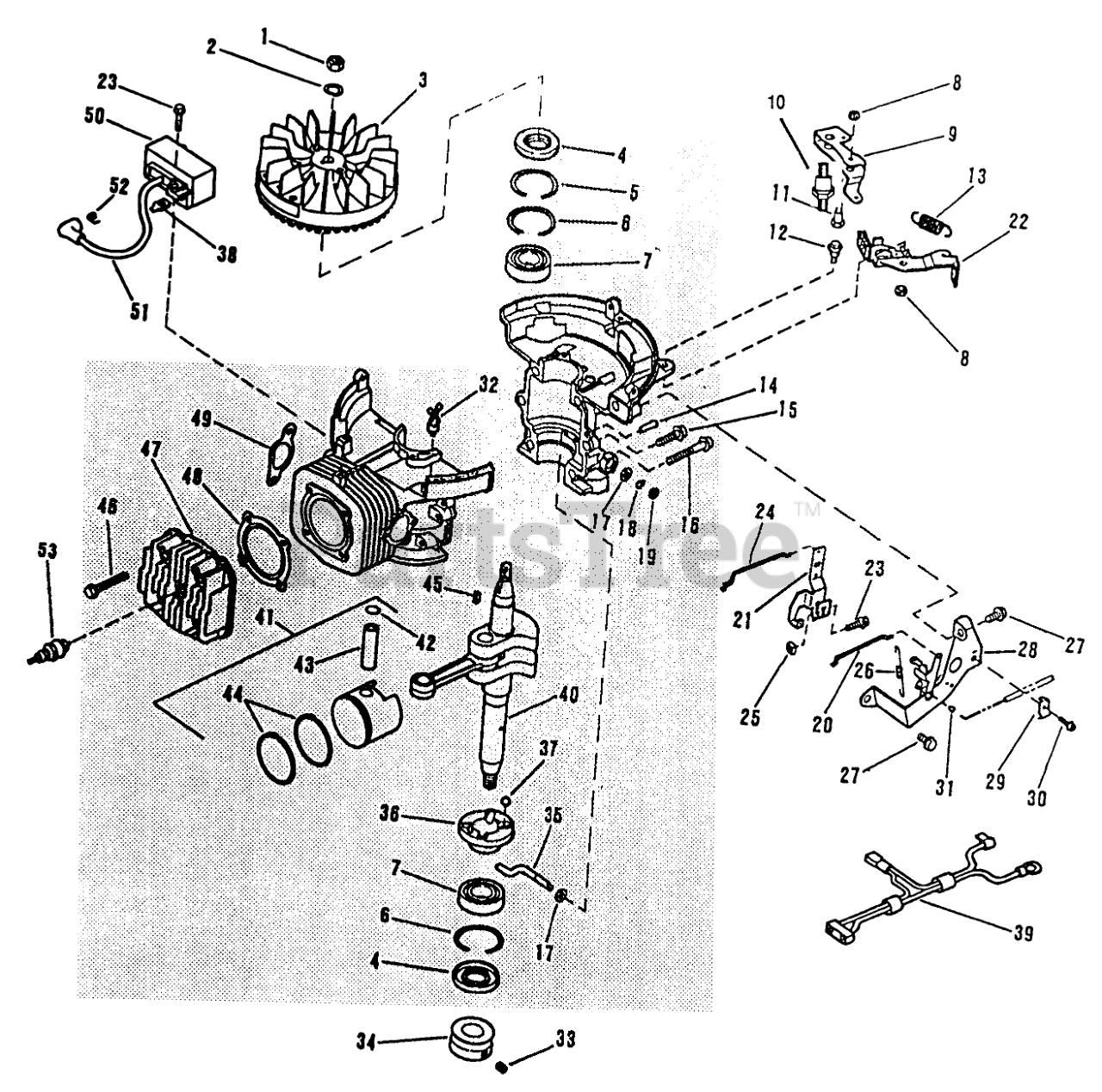

ENGINE GROUP MODELS: M21ZMRB, C & D Parts Diagram

  • Title

1

Toro 130743

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 6

0

1

Toro 130743

NUT

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$3.49

$

In Stock, Qty 6

0

2

Toro 316959

WASHER-LOCK
(Superseded to 325-36)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

2

Toro 316959

WASHER-LOCK
(Superseded to 325-36)

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$0.99

$

In Stock, Qty 20+

0

3

Toro 684023

F/WHEEL ALUM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Toro 684023

F/WHEEL ALUM SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

4

Toro 613182

SEAL - OIL SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

4

Toro 613182

SEAL - OIL SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$23.99

$

Usually ships in 3-6 days

0

5

Toro 613183

RING-RETAINER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Toro 613183

RING-RETAINER SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

6

Toro 613265

RING RET. SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Toro 613265

RING RET. SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

7

Toro 684022

BEARING-BALL SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Toro 684022

BEARING-BALL SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

8

Toro 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

8

Toro 602315

LOCKNUT E

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$4.99

$

In Stock, only 2 left!

0

8

Toro 613550

NUT - HEX JAM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Toro 613550

NUT - HEX JAM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

9

Toro 613390

ACT.BRAKE LVR. SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Toro 613390

ACT.BRAKE LVR. SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

10

Toro 614032

STUD-SHOULDER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

10

Toro 614032

STUD-SHOULDER SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$33.99

$

Usually ships in 3-6 days

0

11

Toro 613360

BOLT-SHOULDER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Toro 613360

BOLT-SHOULDER SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

12

Toro 613756

BOLT-SHOULDER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Toro 613756

BOLT-SHOULDER SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

13

Toro 613386

SPRING-BRAKE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.49

$

Usually ships in 3-6 days

0

13

Toro 613386

SPRING-BRAKE

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$9.49

$

Usually ships in 3-6 days

0

14

Toro 300402

PIN, TAPER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Toro 300402

PIN, TAPER SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

15

Toro 613110

SCREW-H.W.HD. F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Toro 613110

SCREW-H.W.HD. F

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

16

Toro 613111

SCREW-HEX W.H. SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

16

Toro 613111

SCREW-HEX W.H. SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$5.99

$

Usually ships in 3-6 days

0

17

Toro 613429

WASHER-FLAT SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Toro 613429

WASHER-FLAT SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

18

Toro 613328

RING-RETAINING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

18

Toro 613328

RING-RETAINING

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$5.99

$

Usually ships in 3-6 days

0

19

Toro 613230

SEAL - OIL SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Toro 613230

SEAL - OIL SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

20

Toro 613274

ROD - CHOKE SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Toro 613274

ROD - CHOKE SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

21

Toro 614030

GOV CTL LEVER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Toro 614030

GOV CTL LEVER SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

22

Toro 684365

BRAKE & SWITCH S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Toro 684365

BRAKE & SWITCH S

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

23

Toro 613208

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

23

Toro 613208

SCREW

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$2.49

$

In Stock, only 2 left!

0

24

Toro 613277

ROD-THROTTLE SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Toro 613277

ROD-THROTTLE SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

25

Toro 613336

NUT SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Toro 613336

NUT SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

26

Toro 614043

SPRING-GOV. SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Toro 614043

SPRING-GOV. SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

27

Toro 613337

SCREW HEX WASH SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Toro 613337

SCREW HEX WASH SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

28

Toro 684090

GOVNR BRKT SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$68.99

$

Usually ships in 3-6 days

0

28

Toro 684090

GOVNR BRKT SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$68.99

$

Usually ships in 3-6 days

0

29

Toro 613388

CLAMP SM
(Superseded to 2210-249)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

29

Toro 613388

CLAMP SM
(Superseded to 2210-249)

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$3.49

$

Usually ships in 3-6 days

0

30

Toro 613387

SCREW-CLAMP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Toro 613387

SCREW-CLAMP SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

31

Toro 613430

Retainer-Throttle Wire
(Superseded to 92-6397)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Toro 613430

Retainer-Throttle Wire
(Superseded to 92-6397)

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

32

Toro 613683

WIRE TIE SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

Usually ships in 3-6 days

0

32

Toro 613683

WIRE TIE SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$4.49

$

Usually ships in 3-6 days

0

35

Toro 613747

Governor Arm

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Toro 613747

Governor Arm

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

36

Toro 684169

Governor Ramp
(Superseded to 684465)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Toro 684169

Governor Ramp
(Superseded to 684465)

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

37

Toro 613229

BALL-GOVERNOR SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Toro 613229

BALL-GOVERNOR SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

38

Toro 613518

TERMINAL M

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Toro 613518

TERMINAL M

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

39

Toro 684237

WIRE HARNESS ASSY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Toro 684237

WIRE HARNESS ASSY

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

40

Toro 683993

C/SHAFT&C.ROD SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Toro 683993

C/SHAFT&C.ROD SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

41

Toro 684272

PISTON&RING AY. S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Toro 684272

PISTON&RING AY. S

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

Toro 684307

Piston and Ring Assembly (.020 Oversize)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684307

Piston and Ring Assembly (.020 Oversize)

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

42

Toro 613258

RING-RETAINER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Toro 613258

RING-RETAINER SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

42

Toro 613258

RING-RETAINER SM

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

43

Toro 613148

WRIST PIN SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Toro 613148

WRIST PIN SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

43

Toro 613148

WRIST PIN SM

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

44

Toro 684273

RING SET S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Toro 684273

RING SET S

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

44

Toro 684273

RING SET S

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

Toro 684309

RING SET S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684309

RING SET S

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

Toro 684309

RING SET S

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

45

Toro 607199

KEY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 9

0

45

Toro 607199

KEY

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$5.49

$

In Stock, Qty 9

0

46

Toro 613233

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

Usually ships in 3-6 days

0

46

Toro 613233

SCREW

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$4.49

$

Usually ships in 3-6 days

0

47

Toro 613197

CYLINDER HEAD SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Toro 613197

CYLINDER HEAD SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

48

Toro 613382

GASKET-HEAD SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Toro 613382

GASKET-HEAD SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

49

Toro 613266

GASKET - EXH SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Toro 613266

GASKET - EXH SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available

50

Toro 684049

CD Ignition
(Superseded to 99-2916)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$90.99

$

In Stock, only 3 left!

0

50

Toro 684049

CD Ignition
(Superseded to 99-2916)

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$90.99

$

In Stock, only 3 left!

0

51

Toro 684179

HI-TENS.LEAD SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$32.99

$

In Stock, only 1 left!

0

51

Toro 684179

HI-TENS.LEAD SM

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$32.99

$

In Stock, only 1 left!

0

51

Toro 684179

HI-TENS.LEAD SM

Note: NOTE: Parts shown with bullet included with assembly above.

$32.99

$

In Stock, only 1 left!

0

52

Toro 510231

NEEDS DESCRIPTION
(Superseded to 684698)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

52

Toro 510231

NEEDS DESCRIPTION
(Superseded to 684698)

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$7.49

$

Usually ships in 3-6 days

0

52

Toro 510231

NEEDS DESCRIPTION
(Superseded to 684698)

Note: NOTE: Parts shown with two bullets included with assembly above.

$7.49

$

Usually ships in 3-6 days

0

53

Toro 605885

Spark Plug
(Superseded to 614009)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, only 2 left!

0

53

Toro 605885

Spark Plug
(Superseded to 614009)

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$6.49

$

In Stock, only 2 left!

0

33

Toro 613227

SCREW-SET
(Superseded to 105-8875)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

33

Toro 613227

SCREW-SET
(Superseded to 105-8875)

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$11.99

$

Usually ships in 3-6 days

0

34

Toro 613228

PULLEY-ENGINE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Toro 613228

PULLEY-ENGINE

Note: NOTE: Short Block includes Carburetor Gasket, Carburetor Spacer Gasket and Air Filter Base Gasket.

$

$

Not available
