684190 - Toro Rear Grass Catcher Assembly ENGINE GROUP MODEL S19ZPNB Parts Diagram

Rear Grass Catcher Assembly

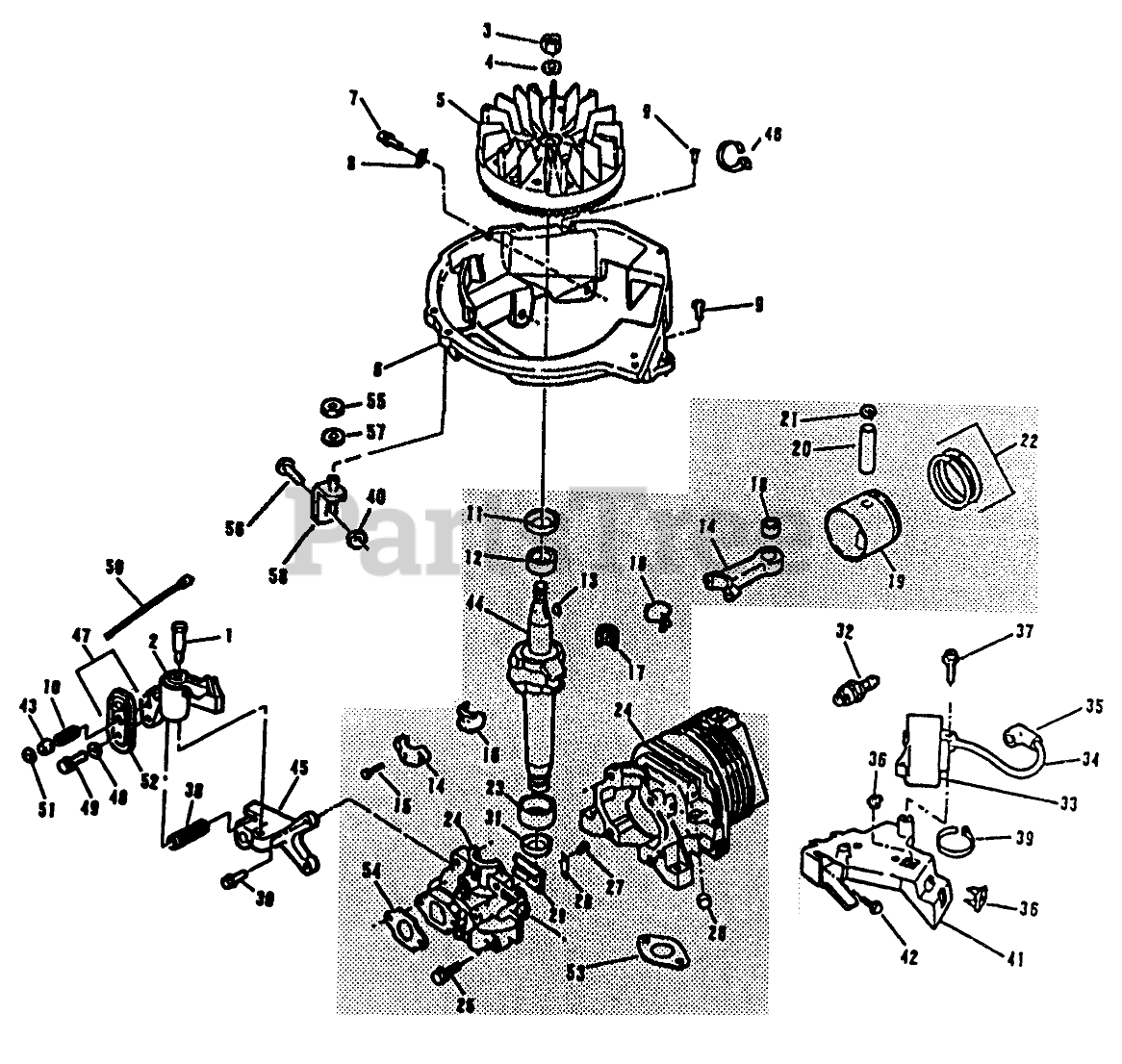

ENGINE GROUP MODEL S19ZPNB Parts Diagram

  • Title

1

Toro 613529

SCREW-SHOULDER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$13.99

$

Usually ships in 3-6 days

0

2

Toro 682683

BRAKE AY FE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Toro 130743

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 6

0

4

Toro 316959

WASHER-LOCK
(Superseded to 325-36)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

5

Toro 683580

FLYWHEEL ASSY F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$318.99

$

In Stock, only 1 left!

0

6

Toro 612427

BASE SHROUD F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Toro 609947

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

8

Toro 611191

"J" CLIP F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Toro 609808

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

10

Toro 611214

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.99

$

In Stock, only 1 left!

0

11

Toro 611396

SEAL-OIL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, only 3 left!

0

12

Toro 681830

BEARING V

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

13

Toro 607199

KEY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 9

0

Toro 682677

Flywheel Assembly
(Superseded to 92-4925)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Toro 682970

NEEDS DESCRIPTION
(Superseded to 92-4921)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$241.99

$

In Stock, only 2 left!

0

14

Toro 682970

NEEDS DESCRIPTION
(Superseded to 92-4921)

Note: NOTE: Parts shown with bullet included with assembly above.

$241.99

$

In Stock, only 2 left!

0

15

Toro 611393

SCREW-HSH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

Usually ships in 3-6 days

0

16

Toro 677982

LINER ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$46.99

$

In Stock, only 2 left!

0

17

Toro 683911

BEARING-NEEDLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, Qty 5

0

18

Toro 679144

BEARING AY F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Toro 682986

NEEDS DESCRIPTION
(Superseded to 92-4923)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Toro 682986

NEEDS DESCRIPTION
(Superseded to 92-4923)

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

20

Toro 606608

PIN-WRIST VF
(Superseded to 94-5774)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

21

Toro 303712

RING-RETAINING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 11

0

22

Toro 681737

F-RING SET

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Toro 681831

BEARING V

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$24.99

$

In Stock, only 1 left!

0

24

Toro 683702

CYL.C'CASE AY S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 610372

SEALER-LOCTITE 6CC

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$27.99

$

Usually ships in 3-6 days

0

Toro 610372

SEALER-LOCTITE 6CC

Note: NOTE: Parts shown with bullet included with assembly above.

$27.99

$

Usually ships in 3-6 days

0

25

Toro 613110

SCREW-H.W.HD. F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Toro 613110

SCREW-H.W.HD. F

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

26

Toro 609123

PLUG-CORE VF

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

26

Toro 609123

PLUG-CORE VF

Note: NOTE: Parts shown with bullet included with assembly above.

$3.49

$

Usually ships in 3-6 days

0

27

Toro 612872

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 5

0

27

Toro 612872

SCREW-HH

Note: NOTE: Parts shown with bullet included with assembly above.

$2.49

$

In Stock, Qty 5

0

28

Toro 602587

PLATE-BACKUP, REED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

28

Toro 602587

PLATE-BACKUP, REED

Note: NOTE: Parts shown with bullet included with assembly above.

$3.49

$

Usually ships in 3-6 days

0

29

Toro 602588

REED-CARBURETOR

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Toro 602588

REED-CARBURETOR

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

30

Toro 613233

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

Usually ships in 3-6 days

0

30

Toro 613233

SCREW

Note: NOTE: Parts shown with bullet included with assembly above.

$4.49

$

Usually ships in 3-6 days

0

31

Toro 611396

SEAL-OIL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, only 3 left!

0

32

Toro 605885

Spark Plug
(Superseded to 614009)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

33

Toro 683215

Module-C.D. Ignition & Lead
(Superseded to 100-2948)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$125.99

$

Usually ships in 3-6 days

0

Toro 318535

Adhesive

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

Toro 318535

Adhesive

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Currently unavailable

34

Toro 681678

HT LEAD&COVER XEV

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

34

Toro 681678

HT LEAD&COVER XEV

Note: NOTE: Parts shown with bullet included with assembly above.

$24.99

$

Usually ships in 3-6 days

0

35

Toro 510231

NEEDS DESCRIPTION
(Superseded to 684698)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

36

Toro 605120

NUT-CLIP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 9

0

37

Toro 607526

SCREW F
(Superseded to 32105-12)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

38

Toro 611211

SPRING-BRAKE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

39

Toro 614249

TIE-CABLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

40

Toro 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

41

Toro 613073

C.D. BRKT F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Toro 307028

NEEDS DESCRIPTION
(Superseded to 614343)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

43

Toro 611509

ACTUATOR-LEVER, BRAKE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

44

Toro 610747

Crankshaft
(Superseded to 94-5713)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$292.99

$

Usually ships in 3-6 days

0

45

Toro 611192

BRACKET-BRAKE F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$129.99

$

Usually ships in 3-6 days

0

46

Toro 317893

STRAP-TIE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Toro 683968

Switch Kit
(Superseded to 93-4307)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$50.99

$

Usually ships in 3-6 days

0

48

Toro 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Toro 602945

WASHER

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

49

Toro 609891

Screw
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Toro 609891

Screw
(Superseded to 700138)

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

50

Toro 683821

WIRE LEAD AY F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Toro 683821

WIRE LEAD AY F

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

51

Toro 611213

RETAINER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

51

Toro 611213

RETAINER S

Note: NOTE: Parts shown with bullet included with assembly above.

$2.49

$

In Stock, only 4 left!

0

52

Toro 683819

Assembly-Case
(Superseded to 93-4301)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

52

Toro 683819

Assembly-Case
(Superseded to 93-4301)

Note: NOTE: Parts shown with bullet included with assembly above.

$16.99

$

Usually ships in 3-6 days

0

53

Toro 609420

Gasket
(Superseded to 93-1233)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 6

0

54

Toro 612574

GASKET CARB S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 13

0

55

Toro 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

56

Toro 603014

BOLT F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Toro 603093

WASHER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Toro 683581

BRACE AY F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0
