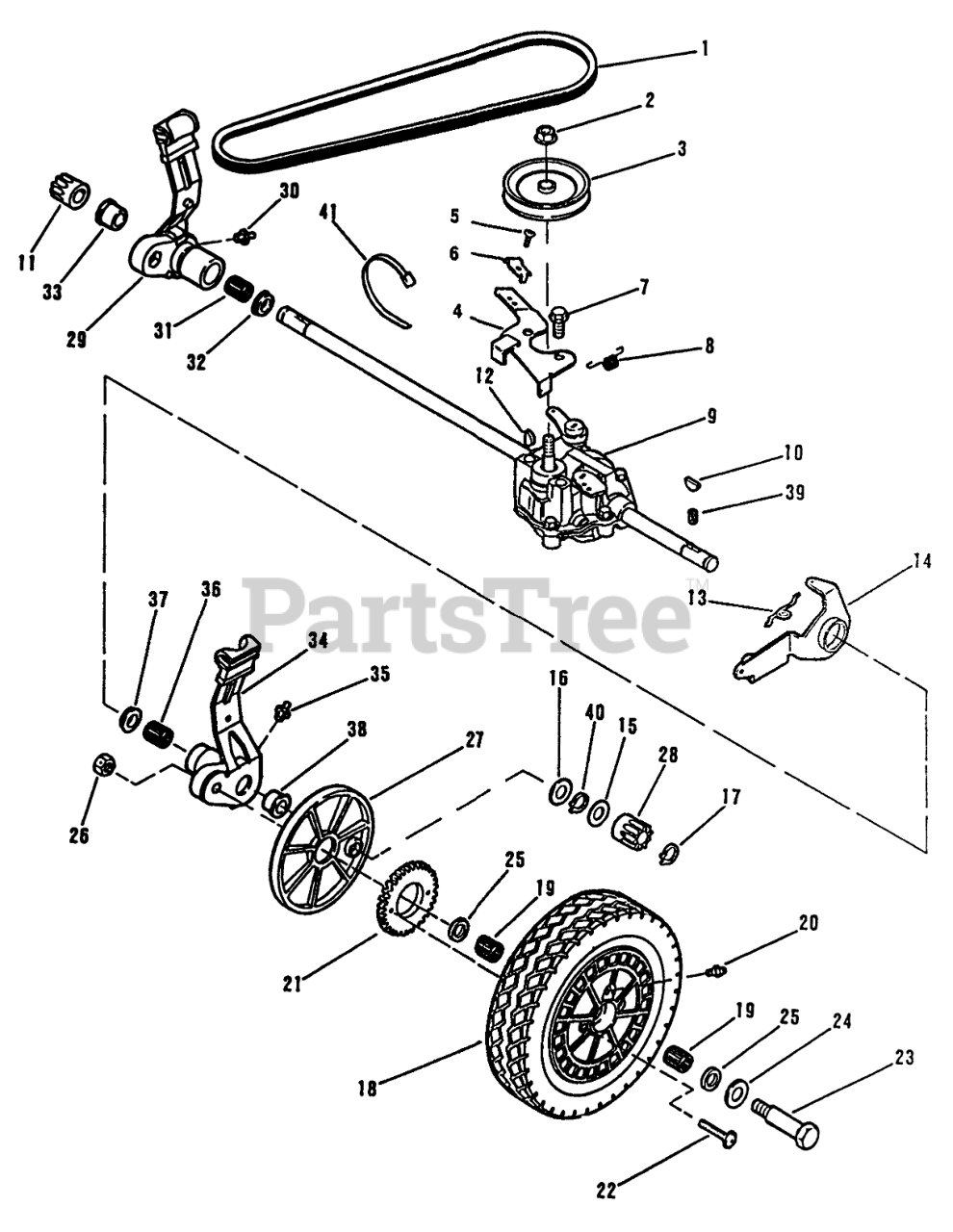

684190 - Toro Rear Grass Catcher Assembly DRIVE GROUP MODELS: C21ZMRA & B Parts Diagram

Rear Grass Catcher Assembly

DRIVE GROUP MODELS: C21ZMRA & B Parts Diagram

  • Title

1

Toro 613830

V-BELT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Toro 613770

NUT-LOCK
(Superseded to 95-1579)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Toro 613445

PULLEY TRANS ADAMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$108.99

$

Usually ships in 3-6 days

0

4

Toro 684623

LINKAGE PLATE&SCRW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Toro 613387

SCREW-CLAMP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Toro 613387

SCREW-CLAMP SM

Note: Parts shown with bullet included with assembly above.

$

$

Not available

6

Toro 613385

CLAMP-CABLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

7

Toro 146134

SCREW SELF TAP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Toro 613581

SPRING-EXTENSION

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Toro 684129

TRANSMISSION ASSEM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Toro 612066

KEY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

11

Toro 613355

PINION(R)MET ALLEG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$20.99

$

In Stock, only 1 left!

0

12

Toro 611840

KEY GALGER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Toro 613579

LINK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Toro 684302

Actuator Arm and Bushing
(Superseded to 684707)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Toro 608030

THRUST WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

16

Toro 611878

WASHER-THRUST

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

17

Toro 603147

RETAINING RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Toro 684575

WHEEL,TIRE&BRG AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Toro 608286

Bearing
(Superseded to 117-3500)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 16

0

19

Toro 608286

Bearing
(Superseded to 117-3500)

Note: Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 16

0

20

Toro 611831

FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

20

Toro 611831

FITTING LINCOLN

Note: Parts shown with bullet included with assembly above.

$8.49

$

Usually ships in 3-6 days

0

21

Toro 614266

GEAR

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Toro 614266

GEAR

Note: Parts shown with bullet included with assembly above.

$

$

Not available

22

Toro 614267

SCREW-TORX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

22

Toro 614267

SCREW-TORX

Note: Parts shown with bullet included with assembly above.

$5.99

$

In Stock, only 1 left!

0

23

Toro 614139

BOLT WHEEL QUAL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Toro 605256

WASHER-PLAIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

25

Toro 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

26

Toro 603773

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

27

Toro 613869

COVER-WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Toro 613356

PINION(L)MET ALLEG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Toro 684482

Height Adjust Arm Assembly-R.H.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Toro 603615

FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Toro 603615

FITTING LINCOLN

Note: Parts shown with bullet included with assembly above.

$

$

Not available

31

Toro 608286

Bearing
(Superseded to 117-3500)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 16

0

31

Toro 608286

Bearing
(Superseded to 117-3500)

Note: Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 16

0

32

Toro 611824

SEAL CR IND

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

32

Toro 611824

SEAL CR IND

Note: Parts shown with bullet included with assembly above.

$16.99

$

Usually ships in 3-6 days

0

33

Toro 614029

Flange Bearing
(Superseded to 684525)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Toro 614029

Flange Bearing
(Superseded to 684525)

Note: Parts shown with bullet included with assembly above.

$

$

Not available

Toro 684523

HEIGHT ADL/BRG SER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684523

HEIGHT ADL/BRG SER

Note: Parts shown with bullet included with assembly above.

$

$

Not available

34

Toro 684483

HT ADJ ARM AY,LEFT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Toro 603615

FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Toro 603615

FITTING LINCOLN

Note: Parts shown with bullet included with assembly above.

$

$

Not available

36

Toro 608286

Bearing
(Superseded to 117-3500)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 16

0

36

Toro 608286

Bearing
(Superseded to 117-3500)

Note: Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 16

0

37

Toro 611824

SEAL CR IND

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

37

Toro 611824

SEAL CR IND

Note: Parts shown with bullet included with assembly above.

$16.99

$

Usually ships in 3-6 days

0

38

Toro 614029

Flange Bearing
(Superseded to 684525)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Toro 614029

Flange Bearing
(Superseded to 684525)

Note: Parts shown with bullet included with assembly above.

$

$

Not available

Toro 684524

Spring Arm, Knob & Brgs

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684524

Spring Arm, Knob & Brgs

Note: Parts shown with bullet included with assembly above.

$

$

Not available

39

Toro 612067

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

40

Toro 607676

RET RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

41

Toro 613911

TIE STRAP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
