684190 - Toro Rear Grass Catcher Assembly DRIVE GROUP MODEL S21BSR Parts Diagram

Rear Grass Catcher Assembly

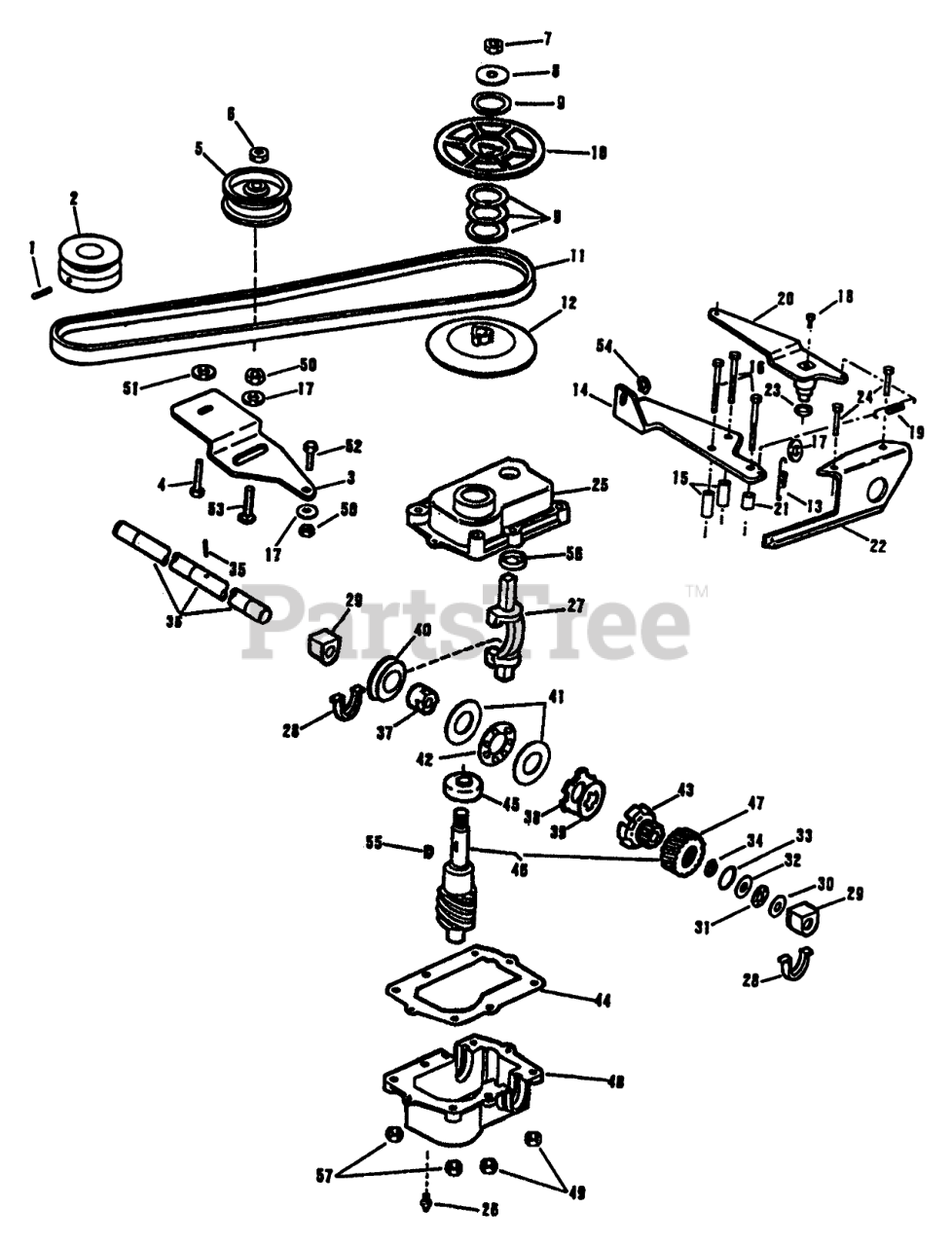

DRIVE GROUP MODEL S21BSR Parts Diagram

  • Title

1

Toro 610345

SET SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.49

$

In Stock, Qty 5

0

2

Toro 609976

PULLEY F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$109.99

$

Usually ships in 3-6 days

0

3

Toro 684194

IDLER & BRACKET AY (12)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Toro 612371

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Toro 612371

SCREW

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

5

Toro 607978

PULLEY IDLER NHI

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 1 left!

0

5

Toro 607978

PULLEY IDLER NHI

Note: NOTE: Parts shown with bullet included with assembly above.

$27.99

$

In Stock, only 1 left!

0

6

Toro 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

6

Toro 610358

NUT-JAM, LOCKING

Note: NOTE: Parts shown with bullet included with assembly above.

$2.99

$

In Stock, only 2 left!

0

7

Toro 603773

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

8

Toro 611839

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Toro 611838

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Toro 611836

PULLEY UPPER PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

11

Toro 613368

V-BELT F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$54.99

$

Usually ships in 3-6 days

0

12

Toro 611837

PULLEY LOWER PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

13

Toro 612994

SPRING EXTEN D&B

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

14

Toro 613043

CONDUIT ANCHOR BRKT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Toro 145929

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Toro 145926

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Toro 609005

WASHER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Toro 612428

SCREW SEMS SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

19

Toro 145935

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Toro 153635

SHIFT ARM HUB STA

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Toro 145928

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684488

TRANSMISN-S221

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Toro 613023

TENSIONER BRKT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Toro 613023

TENSIONER BRKT

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

23

Toro 611835

O-RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, only 1 left!

0

23

Toro 611835

O-RING

Note: NOTE: Parts shown with bullet included with assembly above.

$6.49

$

In Stock, only 1 left!

0

24

Toro 609892

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Toro 609892

SCREW

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

25

Toro 611828

Gearcase-Upper
(Superseded to 683624)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Toro 611828

Gearcase-Upper
(Superseded to 683624)

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

26

Toro 146093

PLUG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Toro 146093

PLUG

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

27

Toro 613245

FORK SHIFT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Toro 613245

FORK SHIFT

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

28

Toro 611830

PACKING MICH RUB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Toro 611830

PACKING MICH RUB

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

29

Toro 683186

BEARING & SEAL AY (12)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Toro 683186

BEARING & SEAL AY (12)

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

30

Toro 608030

THRUST WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

30

Toro 608030

THRUST WASHER

Note: NOTE: Parts shown with bullet included with assembly above.

$2.49

$

Usually ships in 3-6 days

0

31

Toro 381791

Bearing-Thrust

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Toro 381791

Bearing-Thrust

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

32

Toro 611878

WASHER-THRUST

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

32

Toro 611878

WASHER-THRUST

Note: NOTE: Parts shown with bullet included with assembly above.

$19.99

$

Usually ships in 3-6 days

0

33

Toro 611822

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Toro 611822

WASHER

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

34

Toro 607676

RET RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

34

Toro 607676

RET RING

Note: NOTE: Parts shown with bullet included with assembly above.

$5.99

$

In Stock, Qty 6

0

35

Toro 611814

PIN DRIVE LOCK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Toro 611814

PIN DRIVE LOCK

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

36

Toro 613022

SHAFT DRIVE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Toro 613022

SHAFT DRIVE

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

37

Toro 611815

SLEEVE ALLEGHENY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Toro 611815

SLEEVE ALLEGHENY

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

Toro 684494

Disk Clutch Kit
(Superseded to 684684)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684494

Disk Clutch Kit
(Superseded to 684684)

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

38

Toro 613247

Driver Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Toro 613246

Driven Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Toro 614183

Collar
(Superseded to 684684)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Toro 614167

Thrust Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Toro 684473

Bearing

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Toro 611821

DRIVER BROCKWAY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Toro 611821

DRIVER BROCKWAY

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

44

Toro 611827

GASKET HOOSIER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Toro 611827

GASKET HOOSIER

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

45

Toro 683187

BEARING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Toro 683187

BEARING

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

46

Toro 683343

WORM WHEEL & SHAFT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Toro 683343

WORM WHEEL & SHAFT

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

47

Toro 613454

WORM WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$188.99

$

Usually ships in 3-6 days

0

48

Toro 612406

GEAR CASE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Toro 612406

GEAR CASE

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

49

Toro 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

49

Toro 602315

LOCKNUT E

Note: NOTE: Parts shown with bullet included with assembly above.

$4.99

$

In Stock, only 2 left!

0

50

Toro 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

51

Toro 145875

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Toro 610404

Screw
(Superseded to 146209)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

53

Toro 800358

Bolt
(Superseded to 3230-22)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

54

Toro 611224

RET. RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Toro 611840

KEY GALGER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Toro 611834

GUIDE ELCO

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Toro 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0
