684190 - Toro Rear Grass Catcher Assembly CARBURETOR GROUP MODELS: C21ZMRA & B Parts Diagram

Rear Grass Catcher Assembly

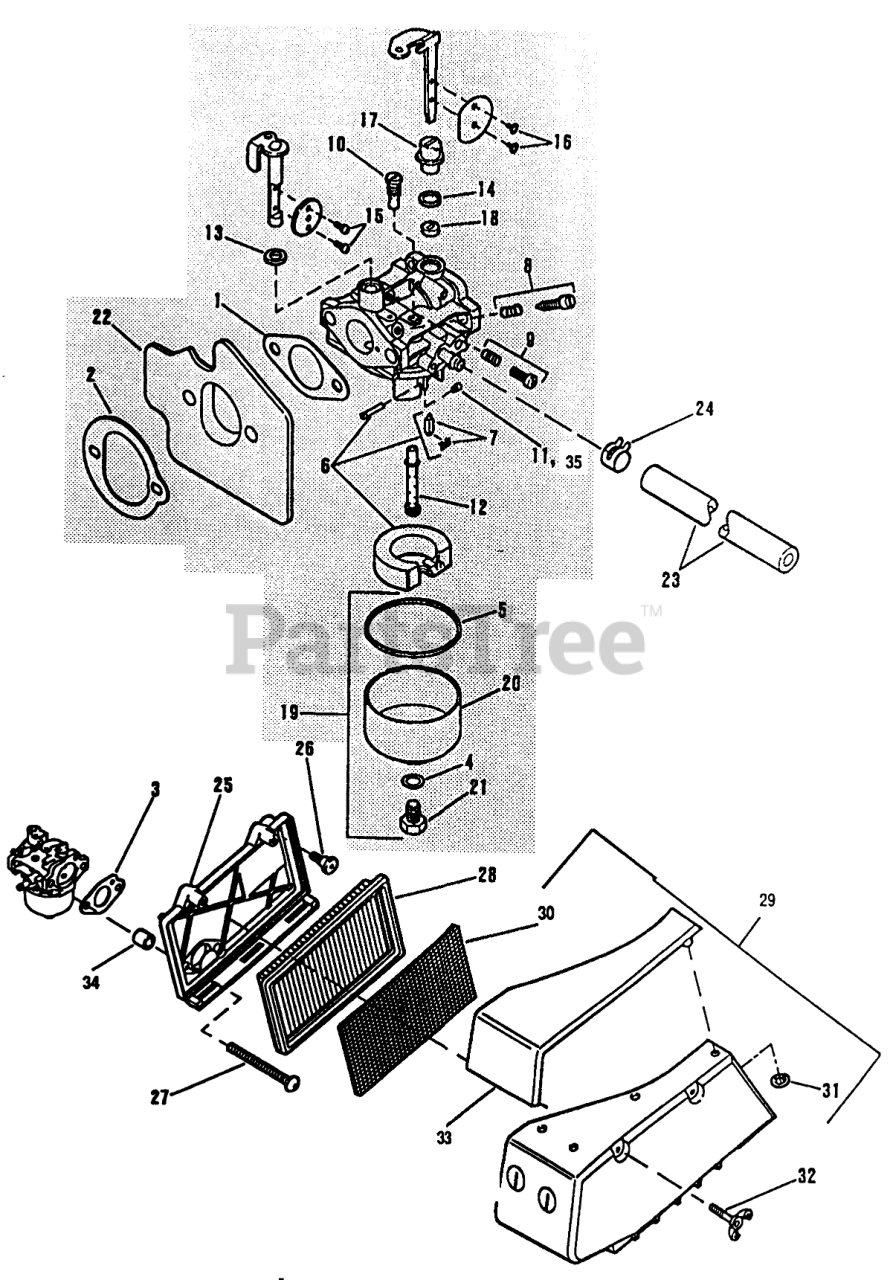

CARBURETOR GROUP MODELS: C21ZMRA & B Parts Diagram

  • Title

Toro 684548

CARB&GASKET AY S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

1

Toro 613180

GASKET SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, only 2 left!

0

1

Toro 613180

GASKET SM

Note: Parts shown with bullet included with assembly above.

$7.99

$

In Stock, only 2 left!

0

2

Toro 613181

GASKET SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

2

Toro 613181

GASKET SM

Note: Parts shown with bullet included with assembly above.

$2.49

$

In Stock, only 2 left!

0

3

Toro 613748

GASKET-FIL SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 6

0

3

Toro 613748

GASKET-FIL SM

Note: Parts shown with bullet included with assembly above.

$2.49

$

In Stock, Qty 6

0

Toro 684280

Gasket Kit

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684280

Gasket Kit

Note: Parts shown with bullet included with assembly above.

$

$

Not available

4

Toro 613641

GASKET-BOWL RET S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

5

Toro 613642

GASKET-FUELBOWL S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Toro 684281

FLOAT & NEEDLE S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Toro 684281

FLOAT & NEEDLE S

Note: Parts shown with bullet included with assembly above.

$

$

Not available

7

Toro 684282

NEEDLE & CLIP S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Toro 684283

IDLE NEEDLE&SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Toro 684283

IDLE NEEDLE&SPRING

Note: Parts shown with bullet included with assembly above.

$

$

Not available

9

Toro 684284

IDLE SPD.SCRW.KIT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Toro 684284

IDLE SPD.SCRW.KIT

Note: Parts shown with bullet included with assembly above.

$

$

Not available

10

Toro 613647

PILOT JET

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

10

Toro 613647

PILOT JET

Note: Parts shown with bullet included with assembly above.

$23.99

$

Usually ships in 3-6 days

0

11

Toro 613918

CARB JET

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Toro 613918

CARB JET

Note: Parts shown with bullet included with assembly above.

$

$

Not available

12

Toro 613649

Nozzle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Toro 613649

Nozzle

Note: Parts shown with bullet included with assembly above.

$

$

Not available

13

Toro 613650

Thottle Shaft Seal

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Toro 613650

Thottle Shaft Seal

Note: Parts shown with bullet included with assembly above.

$

$

Not available

14

Toro 613651

SEAL CHOKE SHAFT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Toro 613651

SEAL CHOKE SHAFT

Note: Parts shown with bullet included with assembly above.

$

$

Not available

15

Toro 613655

SCREW THROT VALVE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Toro 613655

SCREW THROT VALVE

Note: Parts shown with bullet included with assembly above.

$

$

Not available

16

Toro 613656

SCREW CHOKE VALVE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Toro 613656

SCREW CHOKE VALVE

Note: Parts shown with bullet included with assembly above.

$

$

Not available

17

Toro 613657

PIVOT CHOKE SHFT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Toro 613657

PIVOT CHOKE SHFT

Note: Parts shown with bullet included with assembly above.

$

$

Not available

18

Toro 613658

PIVOT CHOKE SHFT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Toro 613658

PIVOT CHOKE SHFT

Note: Parts shown with bullet included with assembly above.

$

$

Not available

19

Toro 684478

BOWL KIT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Toro 684478

BOWL KIT

Note: Parts shown with bullet included with assembly above.

$

$

Not available

20

Toro 614175

Bowl-Fuel

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Toro 614176

SCREW,BOWL RET S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Toro 613262

SPACER -CARB. SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Toro 613866

GAS LINE S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Toro 613489

HOSE CLAMP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

25

Toro 613348

BASE-AIR FILT SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Toro 613353

BOLT SHOULDER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Toro 613327

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Toro 613361

ELEMENT-AIR SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 4 left!

0

29

Toro 684563

AIR FILTER COVER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Toro 614245

PREFILTER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Toro 614245

PREFILTER SM

Note: Parts shown with bullet included with assembly above.

$

$

Not available

31

Toro 613329

NUT-PUSH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

31

Toro 613329

NUT-PUSH

Note: Parts shown with bullet included with assembly above.

$2.49

$

Usually ships in 3-6 days

0

32

Toro 614140

KNOB & SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Toro 614140

KNOB & SCREW

Note: Parts shown with bullet included with assembly above.

$

$

Not available

33

Toro 613761

COVER-AIR BOX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Toro 613761

COVER-AIR BOX

Note: Parts shown with bullet included with assembly above.

$

$

Not available

34

Toro 613352

SPACER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

35

Toro 613893

MAIN JET

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Toro 613893

MAIN JET

Note: Above 3,500 feet

$

$

Not available
