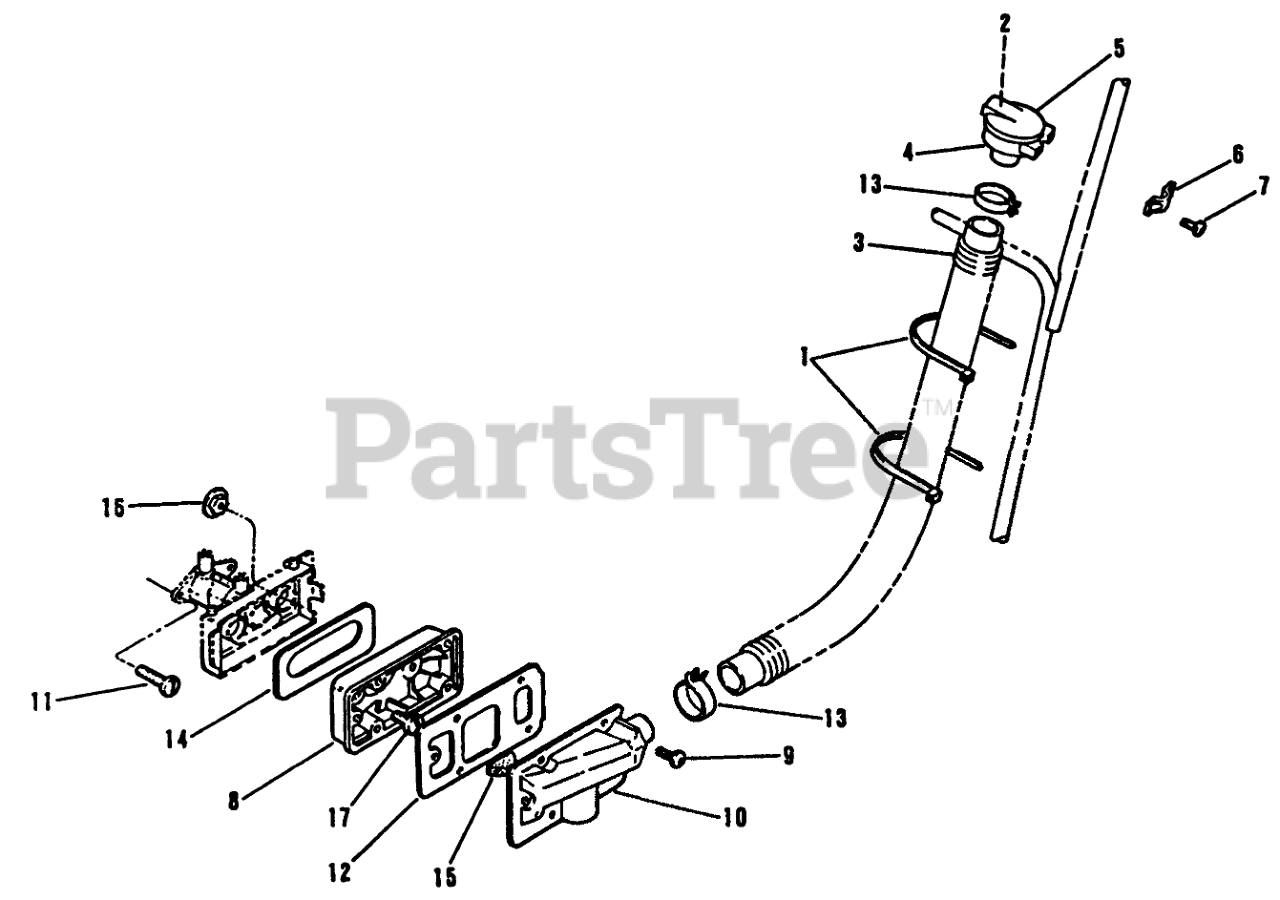

684190 - Toro Rear Grass Catcher Assembly 683803 REMOTE AIR FILTER MODELS: 19" SUPREME, 20" CAST DECK DEDICATED REAR BAGGER (1986 MODELS AND NEWER), 21" STEEL OR CAST DECK Parts Diagram

Rear Grass Catcher Assembly

683803 REMOTE AIR FILTER MODELS: 19" SUPREME, 20" CAST DECK DEDICATED REAR BAGGER (1986 MODELS AND NEWER), 21" STEEL OR CAST DECK Parts Diagram

  • Title

1

Toro 610997

Tie Strap

$

$

Currently unavailable

2

Toro 604274

AIR FIL.ELEM S

$8.49

$

In Stock, Qty 6

0

3

Toro 610696

HOSE-REMOTE FILTER

$

$

Not available

4

Toro 611677

CHAMBER-AIR FILTER

$

$

Not available

5

Toro 610698

CAP-AIR FILTER

$

$

Not available

6

Toro 610699

CLAMP-AIR FILTER

$

$

Not available

7

Toro 610700

Screw

$

$

Currently unavailable

8

Toro 611676

INSERT - CHAMBER

$

$

Not available

9

Toro 611395

SCREW S
(Superseded to 611543)

$4.49

$

In Stock, Qty 6

0

10

Toro 611675

COVER - INSERT

$

$

Not available

11

Toro 612803

SCREW

$

$

Not available

12

Toro 611678

GASKET - COVER

$

$

Not available

13

Toro 611120

CLAMP

$

$

Not available

14

Toro 612805

GASKET - CHAMBER

$16.99

$

Usually ships in 3-6 days

0

15

Toro 611747

ELEMENT-FILTER

$

$

Not available

16

Toro 611680

LOCK NUT

$

$

Not available

17

Toro 309700

Screw

$

$

Currently unavailable
