357cc Engine

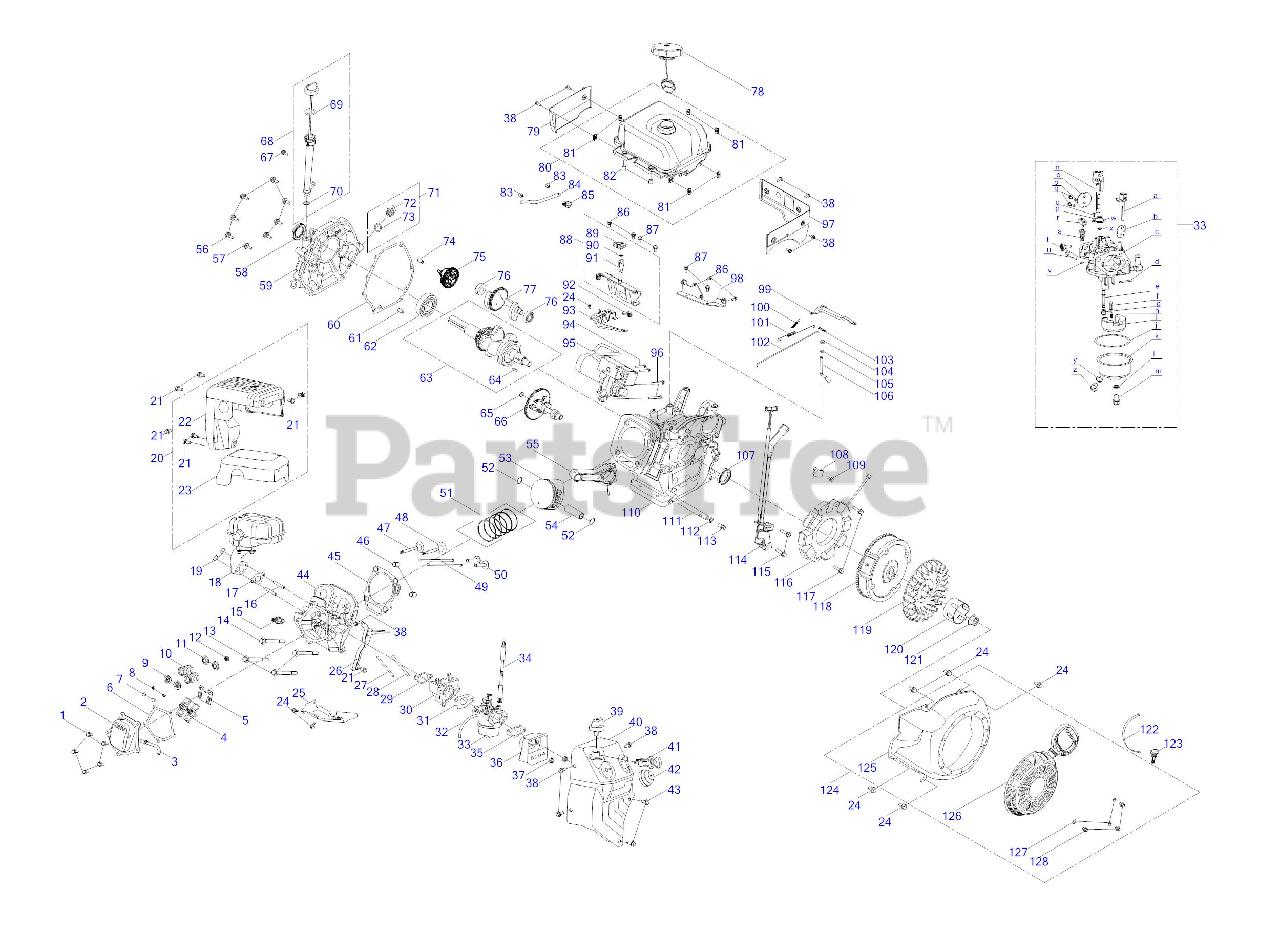

683-WUA General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-05054

Bolt, M6X16

$6.49

$

In Stock, only 2 left!

0

2

Cub Cadet 951-11220

Valve Cover

$35.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-15424

Breather Hose

$8.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 951-15353

Rocker Arm Assembly
(Superseded to 951-11981A)

$40.99

$

In Stock, only 1 left!

0

5

Cub Cadet 951-11965A

Rocker Arm Base
(Superseded to 951-11965B)

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 951-15425

Gasket, Valve Cover

$13.99

$

In Stock, only 1 left!

0

7

Cub Cadet 951-12081

Valve Adjust Cap, Exhaust
(Superseded to 951-12269)

$6.49

$

In Stock, Qty 6

0

8

Cub Cadet 951-14912

Valve Locker
(Superseded to 951-14912A)

$3.49

$

In Stock, only 2 left!

0

9

Cub Cadet 951-14911

Valve Spring Seat

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 951-15812

Valve Spring

$7.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 951-12077

Valve Spring Seat
(Superseded to 951-12077A)

$3.99

$

In Stock, only 2 left!

0

12

Cub Cadet 951-11964

Intake Valve Seal
(Superseded to 951-11964A)

$11.99

$

In Stock, only 2 left!

0

13

Cub Cadet 710-06064

Bolt, M10X1.25X87

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-06065

Bolt, M10X1.25X65

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-04964

Stud, M8X48.5

$6.49

$

In Stock, only 1 left!

0

17

Cub Cadet 951-11212

Gasket, Muffler
(Superseded to 951-11212A)

$5.49

$

In Stock, only 2 left!

0

18

Cub Cadet 951-15426

Muffler
(Superseded to 951-15426A)

$92.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 751-15427

Nut, M8

$4.49

$

In Stock, only 1 left!

0

20

Cub Cadet 951-05388

Muffler Guard

$79.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-04914

Bolt, M6X10

$4.49

$

In Stock, only 3 left!

0

22

Muffler Shroud

$

$

Not available

23

Muffler Inner Shield

$

$

Not available

24

Cub Cadet 710-04915

Bolt, M6X12

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 951-11317

Shroud

$27.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 951-15430

Snow Guard

$14.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 951-15432

Stud, M6-8X108

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 951-15433

Stud, M6-8X126
(Superseded to 751-20209)

$2.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 951-15434

Gasket, Carburetor Insulator
(Superseded to 951-15434A)

$7.49

$

In Stock, Qty 10

0

30

Cub Cadet 951-11316

Insulator
(Superseded to 751P11316A)

$8.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 951-15435

Carburetor Gasket

$7.49

$

In Stock, only 4 left!

0

32

Cub Cadet 935-05038

Fuel Hose, 3.2X6.5X170

$12.99

$

In Stock, only 3 left!

0

33

Cub Cadet 951-05389

Carburetor

$108.99

$

In Stock, only 4 left!

0

34

Cub Cadet 951-15436

Choke Linkage

$6.49

$

In Stock, only 1 left!

0

35

Cub Cadet 951-15448

Gasket, Air Filter

$8.49

$

In Stock, Qty 10

0

36

Cub Cadet 951-15449

Heater Box

$10.99

$

In Stock, only 1 left!

0

37

Cub Cadet 712-05015

Nut, M6

$6.99

$

In Stock, Qty 20+

0

38

Cub Cadet 710-04916

Bolt, M6X14

$4.49

$

In Stock, Qty 12

0

39

Cub Cadet 951-15450

Choke Lever

$

$

Not available

40

Cub Cadet 951-15452

Control Panel

$26.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-15022

Stop Switch
(Superseded to 951-15022A)

$10.99

$

In Stock, only 2 left!

0

42

Cub Cadet 951-10639A

Primer

$15.99

$

In Stock, Qty 20+

0

43

Cub Cadet 710-05192

Bolt, M6X20

$5.99

$

Usually ships in 3-6 days

0

44

Cylinder Head

$

$

Not available

45

Cub Cadet 951-11963

Gasket, Cylinder Head
(Superseded to 951-11963A)

$16.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 715-04097

Pin, 12X20

$6.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 951-15814

Exhaust Valve

$19.99

$

In Stock, only 1 left!

0

48

Cub Cadet 951-15777

Intake Vavle

$19.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 951-14226

Push Rod
(Superseded to 951-14226A)

$11.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 951-11962

Tappet
(Superseded to 951-11962A)

$6.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 951-12579

Piston Ring Set

$29.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 951-11953

Circlip
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 5

0

53

Cub Cadet 951-11952

Piston

$43.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 951-11954

Piston Pin
(Superseded to 951-11954A)

$8.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 951-11951

Connecting Rod Assembly

$77.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 710-06061

Bolt, M8X38

$6.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 710-06289

Bolt, M8X45

$4.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-11375

Oil Seal, 35X52X7
(Superseded to 951-11375A)

$15.99

$

In Stock, Qty 20+

0

59

Cub Cadet 951-15454

Crankcase Cover

$122.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 951-15455

Gasket, Crankcase
(Superseded to 951-15455A)

$14.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 715-04102

Pin, 9X12

$5.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 951-15456

Bearing, 6207

$27.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 951-14218

Crankshaft

$267.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

65

Cub Cadet 736-04476

Washer, 16.2X0.3X24

$5.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 951-11959A

Camshaft
(Superseded to 951-11959B)

$68.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 710-05003

Bolt, M6X18

$4.49

$

In Stock, only 4 left!

0

68

Cub Cadet 951-05391

Dipstick
(Superseded to 951-05391A)

$26.99

$

In Stock, only 1 left!

0

69

Cub Cadet 921-04663

O-Ring, 21X2.77
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-15459

O-Ring, 13.5X2.5

$4.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-05392

Oil Plug
(Superseded to 951-05392A)

$7.49

$

Usually ships in 3-6 days

0

72

Oil Plug

$

$

Not available

73

Cub Cadet 951-11960

O-Ring, 16X3

$4.49

$

In Stock, only 1 left!

0

74

Cub Cadet 715-04092

Pin, 7X14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 951-11956

Governor Gear

$41.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-15463

Bearing, 6202

$12.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 951-11968

Balance Shaft

$116.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 951-15172

Fuel Cap

$

$

Not available

79

Cub Cadet 951-15464

Decorative Sheet, Right

$7.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-05394

Fuel Tank

$111.99

$

In Stock, only 2 left!

0

81

Cub Cadet 951-15465

Fuel Tank Mount Thread Tab

$3.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-15466

Bush, 10X14X14

$3.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-11700

Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-15467

Fuel Hose, 6.3X12.5X255

$18.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 723-04071

Clip
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

86

Cub Cadet 710-06537

Bolt, M8X28

$3.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 710-04921

Bolt, M8X14

$5.49

$

Usually ships in 3-6 days

0

88

Cub Cadet 951-05395

Front Bracket, Fuel Tank

$23.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 951-15469

Rubber Grommet

$3.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 951-15470

Retaining Ring, 10

$4.49

$

Usually ships in 3-6 days

0

91

Cub Cadet 951-15471

Front Bracket, Fuel Tank

$21.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 951-10757

Throttle Lever Knob
(Superseded to 951-11224)

$7.99

$

In Stock, only 3 left!

0

93

Cub Cadet 951-11311

Governor Gear Bracket Assembly

$47.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 751-15472

Screw, M4X48

$4.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 951-15492

Electric Starter

$440.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 710-04967

Bolt, M8X55

$6.49

$

Usually ships in 3-6 days

0

97

Cub Cadet 951-15474

Decorative Sheet, Left
(Superseded to 951-15474A)

$11.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 951-15475

Fuel Tank Base

$15.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 951-14217

Governor Lever

$12.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 951-11306

Governor Spring

$4.49

$

In Stock, only 3 left!

0

101

Cub Cadet 951-15476

Idle Spring

$7.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 951-11309

Throttle Linkage

$3.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 714-04077

Cotter Pin

$6.49

$

In Stock, only 1 left!

0

104

Cub Cadet 951-11958

Oil Seal, 8X14X4

$4.49

$

Usually ships in 3-6 days

0

105

Cub Cadet 736-04453

Washer, 8X0.8X20

$6.49

$

Usually ships in 3-6 days

0

106

Cub Cadet 951-15477

Governor Gear Shaft

$8.49

$

Usually ships in 3-6 days

0

107

Cub Cadet 951-11499

Oil Seal, 35X52X7
(Superseded to 951-11499A)

$13.99

$

In Stock, only 1 left!

0

108

Cub Cadet 951-11186

Wire Board

$4.99

$

Usually ships in 3-6 days

0

109

Cub Cadet 710-04966

Bolt, M6X8

$6.49

$

Usually ships in 3-6 days

0

110

Cub Cadet 951-14221

Crankcase

$390.99

$

Usually ships in 3-6 days

0

111

Cub Cadet 951-11350

Oil Drain Pipe

$9.49

$

Usually ships in 3-6 days

0

112

Cub Cadet 736-04440

Washer, 10X1.5X16
(Superseded to 736-04440A)

$6.99

$

In Stock, only 1 left!

0

113

Cub Cadet 710-04906

Earth Bolt

$6.99

$

In Stock, Qty 12

0

114

Cub Cadet 951-15478

Ignition Module

$81.99

$

In Stock, only 1 left!

0

115

Cub Cadet 710-05350

Bolt, M6X28

$3.99

$

Usually ships in 3-6 days

0

116

Cub Cadet 951-15479

Charging Coil

$97.99

$

Usually ships in 3-6 days

0

117

Cub Cadet 710-04969

Bolt, M6X30

$4.49

$

In Stock, Qty 13

0

118

Cub Cadet 951-12556

Flywheel

$203.99

$

Usually ships in 3-6 days

0

119

Cub Cadet 951-11313

Cooling Fan
(Superseded to 951-11313A)

$50.99

$

Usually ships in 3-6 days

0

120

Cub Cadet 951-11314

Starter Cup

$18.99

$

Usually ships in 3-6 days

0

121

Cub Cadet 712-05169

Nut, M16X1.5

$8.49

$

Usually ships in 3-6 days

0

122

Cub Cadet 725-06031

Tape, L=150mm

$2.49

$

Usually ships in 3-6 days

0

123

Cub Cadet 951-10630

Stop Switch Key

$6.99

$

In Stock, only 1 left!

0

124

Cub Cadet 951-05396

Recoil Starter

$83.99

$

Usually ships in 3-6 days

0

125

Cub Cadet 951-15481

Blower Housing

$47.99

$

Usually ships in 3-6 days

0

126

Cub Cadet 951-05397

Recoil Starter
(Superseded to 951-05397A)

$56.99

$

Usually ships in 3-6 days

0

127

Cub Cadet 736-04455

Washer, 6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

128

Cub Cadet 710-06354

Bolt, M6X10

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 951-05389

Carburetor

$108.99

$

In Stock, only 4 left!

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Carburetor Body

$

$

Not available

d

Float Pin

$

$

Not available

e

Nozzle Tube

$

$

Not available

f

Needle Valve

$

$

Not available

g

Main Jet

$

$

Not available

h

Needle Valve Spring

$

$

Not available

i

Float

$

$

Not available

j

Cub Cadet 951-11970

O-Ring, Float Bowl

$6.99

$

In Stock, Qty 16

0

k

Cub Cadet 951-15487

Float Bowl

$10.99

$

In Stock, only 1 left!

0

l

Cub Cadet 951-11348

O-Ring, Float Bowl
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

m

Cub Cadet 710-04945

Bolt

$4.49

$

In Stock, Qty 13

0

n

Throttle Shaft

$

$

Not available

o

Throttle Plate

$

$

Not available

p

Cub Cadet 736-04638

Washer, 3
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

q

Screw, M3X6

$

$

Not available

r

Idle Jet Rivet

$

$

Not available

s

Idle Jet

$

$

Not available

t

Idle Adjusting Screw

$

$

Not available

u

Venting Hose

$

$

Not available

v

Primer Line

$

$

Not available

w

Throttle Shaft Sleeve

$

$

Not available

x

Gasket

$

$

Not available

y

Cub Cadet 951-11349

Gasket, Drain Bolt
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

z

Cub Cadet 710-04938

Drain Bolt

$4.49

$

In Stock, Qty 10

0
