68141 (MB TX 2500 S) - Toro Mud Buggy (SN: 412337923 - 414400368) Hydraulic Pump Assembly Parts Diagram

Mud Buggy

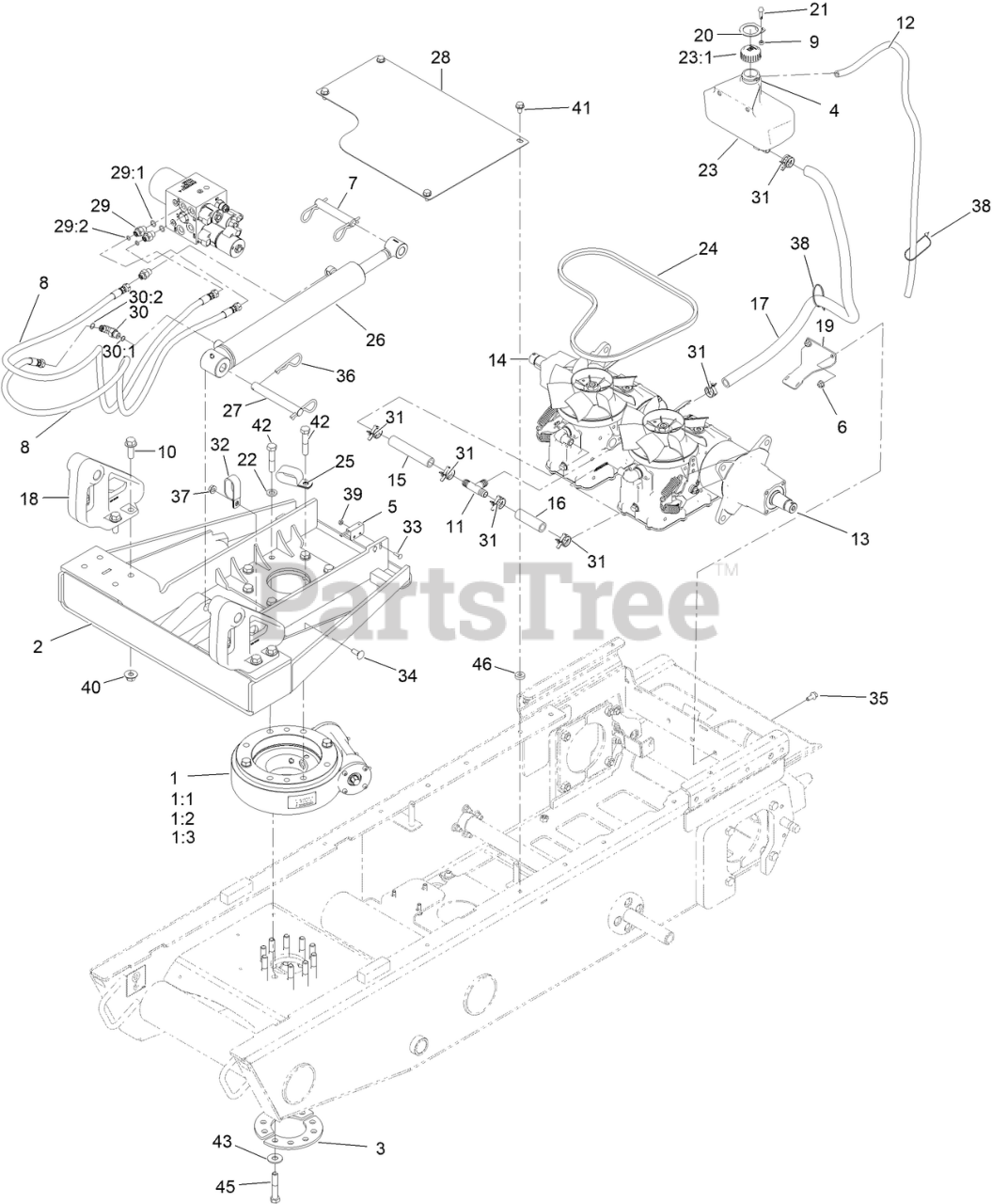

Hydraulic Pump Assembly Parts Diagram

  • Title

1

Toro 139-7184

DRIVE-SLEW

$4344.99

$

Usually ships in 3-6 days

0

1:1

Toro 140-3579

MOTOR-HYD, SLEW

$

$

Currently unavailable

1:2

Toro 139-7235

SEAL-LIP

$253.99

$

Usually ships in 3-6 days

0

1:3

Toro 139-7236

SEAL-TOP PLATE

$292.99

$

Usually ships in 3-6 days

0

2

Toro 140-2347-03

TOP SWIVEL PLATE ASM [BLACK]

$

$

Currently unavailable

3

Toro 139-7228-03

SPACER-SLEW MOUNT

$

$

Not available

4

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

5

Toro 100-1270

SWITCH-PROXIMITY

$115.99

$

Usually ships in 3-6 days

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Toro 105-7456

PIN-PIVOT

$33.99

$

Usually ships in 3-6 days

0

8

Toro 121-4347

HOSE-HYD

$171.99

$

Usually ships in 3-6 days

0

9

Toro 126-0416

SPACER

$5.49

$

In Stock, only 1 left!

0

10

Toro 130-6482

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

11

Toro 132-5127

TEE

$7.99

$

Usually ships in 3-6 days

0

12

Toro 132-7563

HOSE-BREATHER, TRANSMISSION

$13.99

$

Usually ships in 3-6 days

0

13

Toro 132-8802

LH HYDRO TRANSAXLE ASM

$3028.99

$

Usually ships in 3-6 days

0

14

Toro 132-8803

RH HYDRO TRANSAXLE ASM

$3028.99

$

Usually ships in 3-6 days

0

15

Toro 132-8933

HOSE-HYD, HYDRO

$9.99

$

Usually ships in 3-6 days

0

16

Toro 132-8934

HOSE-HYD, HYDRO

$5.49

$

Usually ships in 3-6 days

0

17

Toro 132-8935

HOSE-HYD, HYDRO

$65.99

$

Usually ships in 3-6 days

0

18

Toro 132-9025-03

PIVOT-DUMP

$

$

Not available

19

Toro 132-9032-03

BRACKET-HOSE RETAINER

$23.99

$

Usually ships in 3-6 days

0

20

Toro 136-0549-01

LOCK-TANK

$7.99

$

In Stock, only 1 left!

0

21

Toro 137-3711

SCREW

$0.99

$

In Stock, only 1 left!

0

22

Toro 137-5550

WASHER-THRUST

$5.49

$

Usually ships in 3-6 days

0

23

Toro 138-3164

TANK-HYDRAULIC

$112.99

$

Usually ships in 3-6 days

0

23:1

Toro 133-8677

CAP-VENTED

$17.99

$

In Stock, only 3 left!

0

24

Toro 139-1295

BELT-V

$34.99

$

In Stock, only 3 left!

0

25

Toro 139-7218

CLAMP-R, DOUBLE

$8.49

$

Usually ships in 3-6 days

0

26

Toro 140-3558

CYLINDER, HYDRAULIC

$768.99

$

Usually ships in 3-6 days

0

27

Toro 140-3582

PIN,PLAIN

$36.99

$

Usually ships in 3-6 days

0

28

Toro 140-7204-03

SHIELD_COVER

$

$

Not available

29

Toro 340-1

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

29:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

30

Toro 340-82

FITTING-ELBOW, 90 DEG

$24.99

$

In Stock, only 1 left!

0

30:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

30:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

31

Toro 144-2248

CLAMP-SC BAND

$

$

Currently unavailable

32

Toro 2412-137

CLAMP-R, DOUBLE

$6.99

$

Usually ships in 3-6 days

0

33

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

34

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

35

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

36

Toro 3290-256

PIN-HAIR

$8.49

$

In Stock, Qty 9

0

37

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

38

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

39

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Toro 32128-52

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

41

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

42

Toro AU426-840

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

43

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

45

Toro 325-34

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

46

Toro 5-0652

SPACER

$7.49

$

In Stock, Qty 5

0
