68141 (MB TX 2500 S) - Toro Mud Buggy (SN: 411796997 - 412337922) Frame Assembly Parts Diagram

Mud Buggy

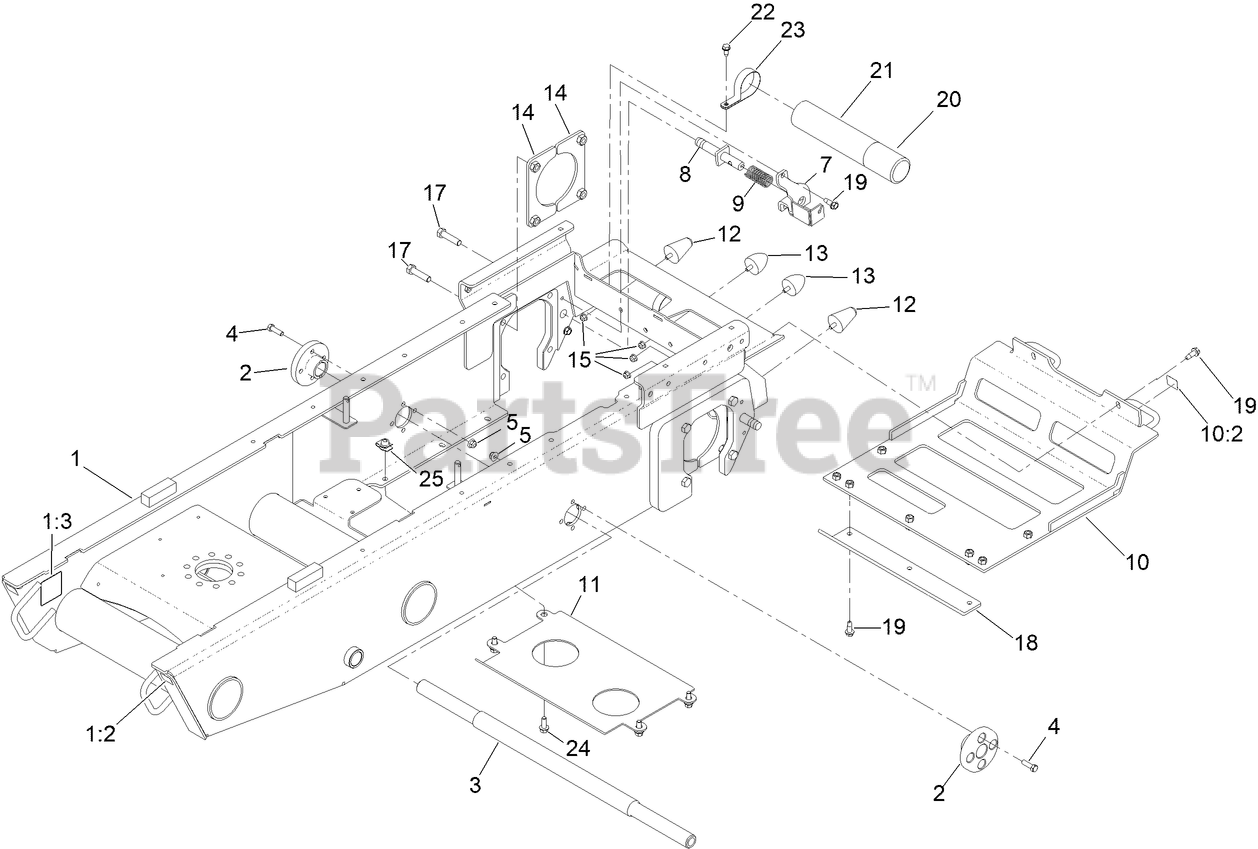

Frame Assembly Parts Diagram

  • Title

1

Toro 139-7197

FRAME ASM- SWIVEL

$

$

Currently unavailable

1:2

Toro 132-9051

DECAL-TIEDOWN

$

$

Currently unavailable

1:3

Toro 125-4967

DECAL-LIFT HERE

$2.49

$

Usually ships in 3-6 days

0

2

Toro 132-9075

HUB-MOUNT, TRACK

$126.99

$

Usually ships in 3-6 days

0

3

Toro 125-0425

SHAFT-TRACK

$328.99

$

Usually ships in 3-6 days

0

4

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 130-5284-03

BRACKET-BRAKE

$

$

Not available

8

Toro 132-8866

SHAFT-BRAKE

$47.99

$

Usually ships in 3-6 days

0

9

Toro 125-0344

SPRING-COMPRESSION

$16.99

$

Usually ships in 3-6 days

0

10

Toro 136-4651

PLATE-SIDE

$328.99

$

Usually ships in 3-6 days

0

10:2

Toro 132-9051

DECAL-TIEDOWN

$

$

Currently unavailable

11

Toro 145-1158-03

SKID PLATE, HYDRAULIC TANK

$

$

Not available

12

Toro 114-1925

BUMPER-RUBBER

$26.99

$

In Stock, only 1 left!

0

13

Toro 114-1926

BUMPER-RUBBER

$28.99

$

Usually ships in 3-6 days

0

14

Toro 132-8936-0P

HYDRO MOUNTING PLATE ASM

$48.99

$

Usually ships in 3-6 days

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

17

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

18

Toro 136-4611-03

PLATE-SKID

$69.99

$

In Stock, only 1 left!

0

19

Toro 105-6245

SCREW-TAPPING

$5.99

$

Usually ships in 3-6 days

0

20

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

21

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 2412-133

CLAMP-R

$8.99

$

Usually ships in 3-6 days

0

24

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

25

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0
