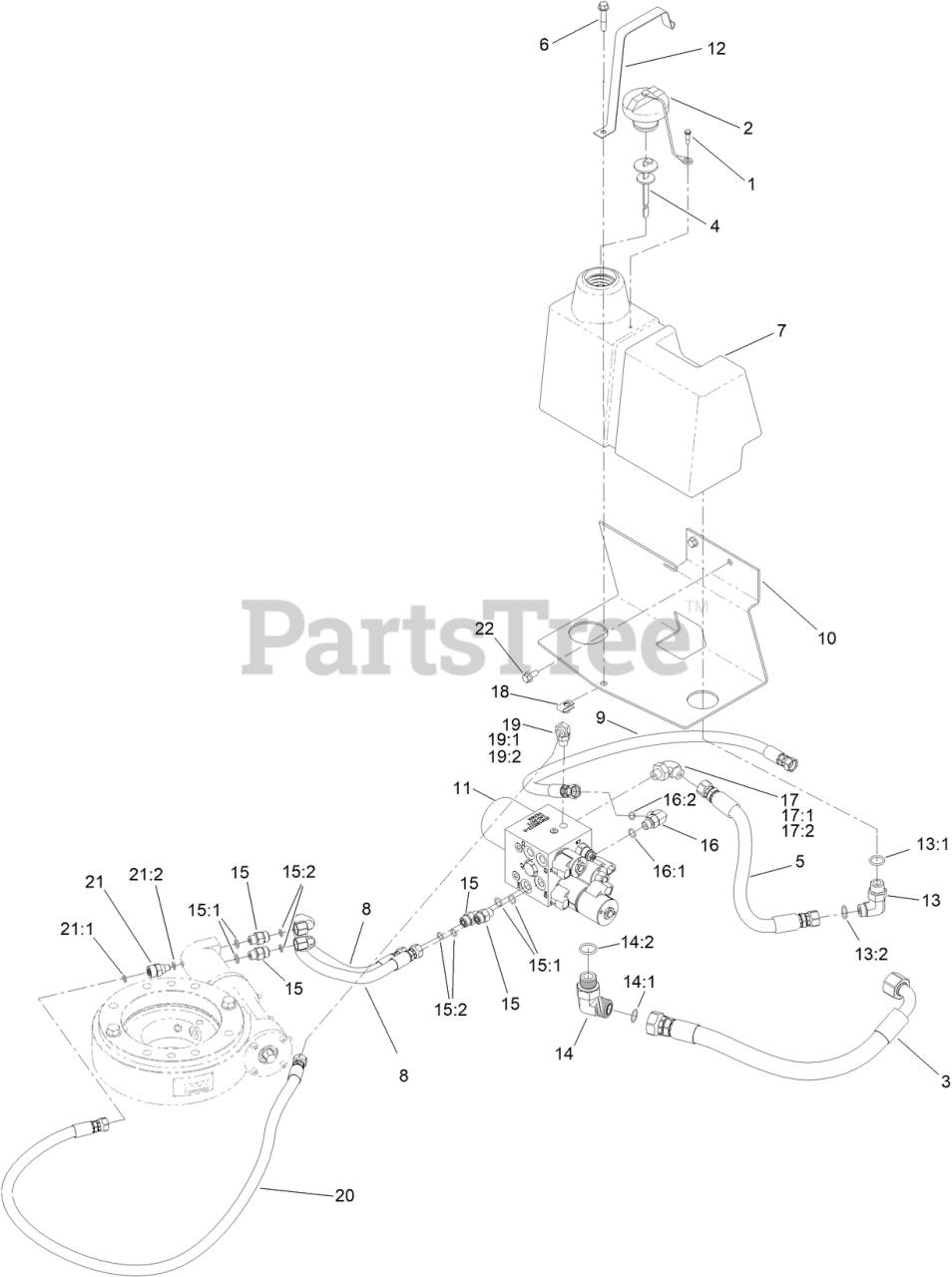

68141 (MB TX 2500 S) - Toro Mud Buggy (SN: 400000000 - 408899999) Hydraulic Manifold Assembly Parts Diagram

Mud Buggy

Hydraulic Manifold Assembly Parts Diagram

  • Title

1

Toro 57-5420

SCREW-SHOULDER

$6.49

$

Usually ships in 3-6 days

0

2

Toro 93-7160

CAP-OIL, HYD

$61.99

$

Usually ships in 3-6 days

0

3

Toro 100-5579

HOSE ASM

$324.99

$

Usually ships in 3-6 days

0

4

Toro 106-8811

DIPSTICK ASM

$83.99

$

Usually ships in 3-6 days

0

5

Toro 117-0180

HOSE-HYD

$139.99

$

Usually ships in 3-6 days

0

6

Toro 94-5780

SCREW-HWH

$8.49

$

In Stock, only 2 left!

0

7

Toro 127-4162

RESERVOIR-OIL, HYD

$794.99

$

Usually ships in 3-6 days

0

8

Toro 132-8949

HOSE-HYDRAULIC
(Superseded to 144-7466)

$53.99

$

Usually ships in 3-6 days

0

9

Toro 133-2260

HOSE ASM

$91.99

$

Usually ships in 3-6 days

0

10

Toro 140-3552-03

SUPPORT - TANK, HYD

$

$

Currently unavailable

11

Toro 140-3572

MANIFOLD-HYDRAULIC ASM

$2082.99

$

Usually ships in 3-6 days

0

12

Toro 140-7639-03

STRAP-HYDRAULIC TANK

$

$

Not available

13

Toro 340-105

FITTING-ELBOW, 90 DEG

$44.99

$

In Stock, only 1 left!

0

13:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

13:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

14

Toro 340-142

FITTING-ELBOW-90

$95.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

14:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

15

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

15:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

15:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

16

Toro 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

16:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

17

Toro 340-99

FITTING-HYD, 90 DEG

$40.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

17:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

18

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

19

Toro 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

19:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

20

Toro 132-8942

HOSE-HYDRAULIC
(Superseded to 144-7464)

$65.99

$

Usually ships in 3-6 days

0

21

Toro 98-1282

ADAPTER-HYD, STRAIGHT

$72.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

21:2

Toro 237-118

O-RING

$2.99

$

Usually ships in 3-6 days

0

22

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0
