68141 (MB TX 2500 S) - Toro Mud Buggy (SN: 400000000 - 408899999) Hopper Assembly Parts Diagram

Mud Buggy

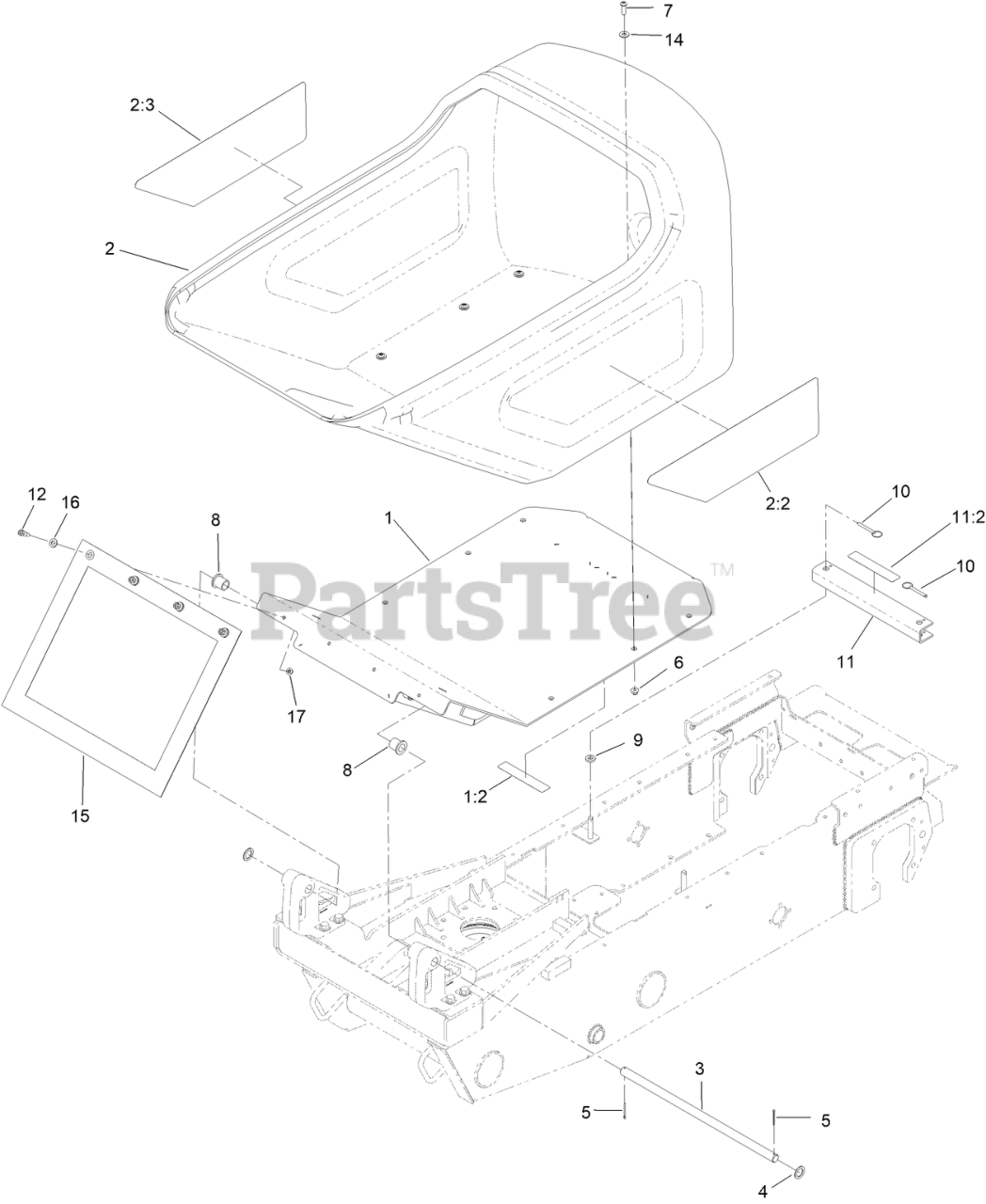

Hopper Assembly Parts Diagram

  • Title

1

Toro 140-3575

HOPPER BASE ASM (SERVICE)

$

$

Currently unavailable

1:2

Toro 115-4858

DECAL-DANGER

$9.99

$

Usually ships in 3-6 days

0

2

Toro 139-7215

HOPPER-MORTAR ASM
(Superseded to 139-7216)

$1411.99

$

Usually ships in 3-6 days

0

2:2

Toro 139-7208

DECAL-TUB, LEFT

$34.99

$

Usually ships in 3-6 days

0

2:3

Toro 139-7209

DECAL-TUB, RIGHT

$34.99

$

Usually ships in 3-6 days

0

3

Toro 132-8854

SHAFT-PIVOT,TUB

$63.99

$

Usually ships in 3-6 days

0

4

Toro 99-4958

SPACER

$2.99

$

Usually ships in 3-6 days

0

5

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 7

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 3274-63

SCREW-HSBH

$4.99

$

In Stock, only 1 left!

0

8

Toro 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 20+

0

9

Toro 83-1470

WASHER-NEOPRENE

$3.49

$

Usually ships in 3-6 days

0

10

Toro 108-0094

PIN-COTTERLESS

$5.49

$

Usually ships in 3-6 days

0

11

Toro 139-7203

ARM-LOCKING

$76.99

$

Usually ships in 3-6 days

0

11:2

Toro 115-4858

DECAL-DANGER

$9.99

$

Usually ships in 3-6 days

0

12

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 5

0

14

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Toro 132-9044

SHIELD-SPLATTER

$18.99

$

In Stock, only 2 left!

0

16

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
