68138 (MB TX 2500) - Toro Mud Buggy (SN: 403090201 - 403299999) Hydraulic Pump Assembly Parts Diagram

Mud Buggy

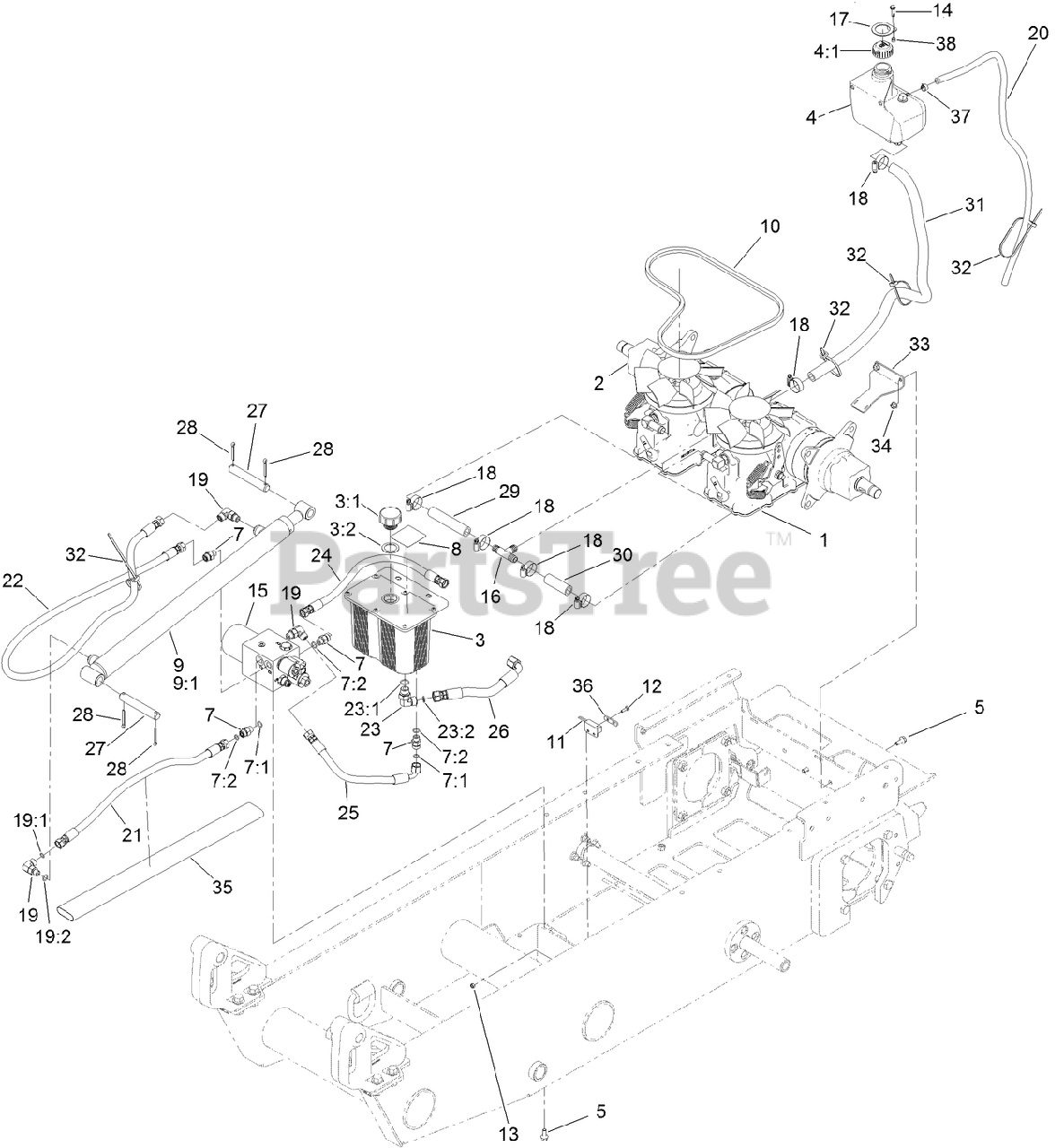

Hydraulic Pump Assembly Parts Diagram

  • Title

1

Toro 132-8802

LH HYDRO TRANSAXLE ASM

$2998.99

$

Usually ships in 3-6 days

0

2

Toro 132-8803

RH HYDRO TRANSAXLE ASM

$2998.99

$

Usually ships in 3-6 days

0

3

Toro 109-0448

See Supercession: 109-0582
(Superseded to 109-0582)

$372.99

$

Usually ships in 3-6 days

0

3:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, Qty 5

0

3:2

Toro 103-1949

GASKET-CAP

$

$

Not available

4

Toro 132-1135

TANK-HYD

$130.99

$

Usually ships in 3-6 days

0

4:1

Toro 133-8677

CAP-VENTED

$16.99

$

In Stock, only 2 left!

0

5

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

7

Toro 340-2

FITTING-STRAIGHT

$11.99

$

In Stock, only 2 left!

0

7:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 15

0

7:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

8

Toro 115-4212

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

9

Toro 132-8835

CYLINDER-HYDRAULIC

$496.99

$

Usually ships in 3-6 days

0

9:1

Toro 132-9084

KIT-SEAL, CYLINDER

Note: Not illustrated

$155.99

$

Usually ships in 3-6 days

0

10

Toro 132-8858

BELT
(Superseded to 139-1295)

$34.99

$

In Stock, only 1 left!

0

11

Toro 100-1270

SWITCH-PROXIMITY

$112.99

$

Usually ships in 3-6 days

0

12

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 137-3711

SCREW

$0.99

$

Usually ships in 3-6 days

0

15

Toro 132-8989

HYDRAULIC MANIFOLD ASM

$1174.99

$

Usually ships in 3-6 days

0

16

Toro 132-5127

TEE

$7.99

$

Usually ships in 3-6 days

0

17

Toro 136-0549-01

LOCK-TANK

$7.99

$

Usually ships in 3-6 days

0

18

Toro 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0

19

Toro 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 15

0

19:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

20

Toro 132-7563

HOSE-BREATHER, TRANSMISSION

$13.99

$

Usually ships in 3-6 days

0

21

Toro 132-8941

HOSE-HYDRAULIC

$47.99

$

In Stock, only 1 left!

0

22

Toro 132-8942

HOSE-HYDRAULIC
(Superseded to 144-7464)

$64.99

$

Usually ships in 3-6 days

0

23

Toro 340-98

FITTING-ELBOW, 90 DEG

$32.99

$

In Stock, only 2 left!

0

23:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

23:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

24

Toro 132-8948

HOSE-HYDRAULIC
(Superseded to 144-7465)

$45.99

$

Usually ships in 3-6 days

0

25

Toro 132-8949

HOSE-HYDRAULIC
(Superseded to 144-7466)

$53.99

$

Usually ships in 3-6 days

0

26

Toro 132-8950

HOSE-HYDRAULIC
(Superseded to 144-7468)

$69.99

$

Usually ships in 3-6 days

0

27

Toro 105-7456

PIN-PIVOT

$31.99

$

Usually ships in 3-6 days

0

28

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

29

Toro 132-8933

HOSE-HYD, HYDRO

$9.99

$

Usually ships in 3-6 days

0

30

Toro 132-8934

HOSE-HYD, HYDRO

$5.49

$

Usually ships in 3-6 days

0

31

Toro 132-8935

HOSE-HYD, HYDRO

$64.99

$

Usually ships in 3-6 days

0

32

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

33

Toro 132-9032-03

BRACKET-HOSE RETAINER

$23.99

$

Usually ships in 3-6 days

0

34

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 100-6127

SLEEVE-PROTECTIVE

$44.99

$

In Stock, only 2 left!

0

36

Toro 132-9092

PLATE-SWITCH, PROXIMITY

$6.99

$

Usually ships in 3-6 days

0

37

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

38

Toro 126-0416

SPACER

$5.49

$

Usually ships in 3-6 days

0
