68138 (MB TX 2500) - Toro Mud Buggy (SN: 402100000 - 403090200) TRACK ASSEMBLY Parts Diagram

Mud Buggy

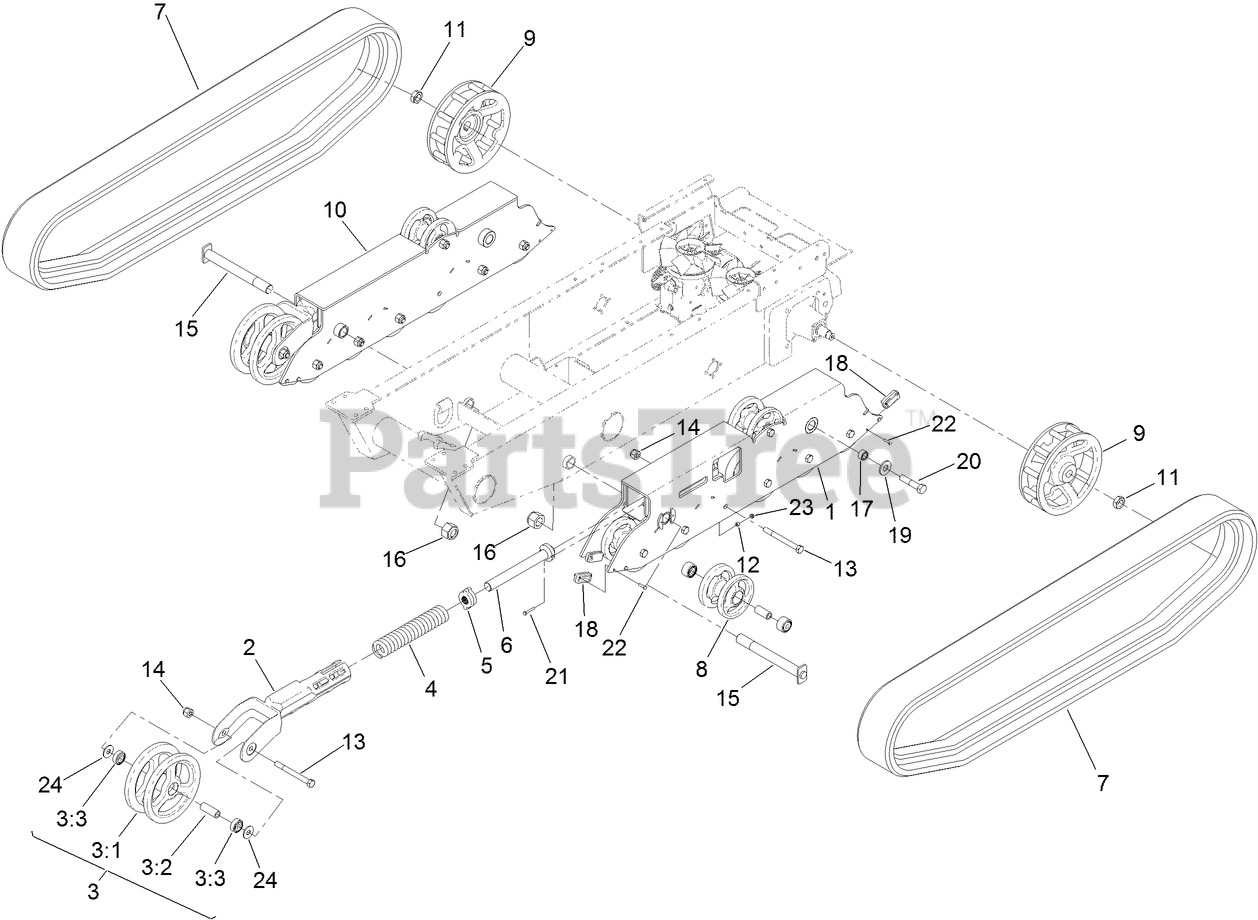

TRACK ASSEMBLY Parts Diagram

  • Title

1

Toro 132-8813-03

MOUNT-WHEEL, LH

$1388.99

$

Usually ships in 3-6 days

0

2

Toro 108-4691-03

ARM-TENSIONER

$

$

Not available

3

Toro 104-5745

TENSIONER WHEEL ASM

$727.99

$

Usually ships in 3-6 days

0

3:1

Toro 104-5747-03

WHEEL-TENSIONER

$619.99

$

Usually ships in 3-6 days

0

3:2

Toro 98-9835

SPACER-WHEEL, TENSIONER

$17.99

$

In Stock, only 2 left!

0

3:3

Toro 120-5378

BEARING-BALL

$16.99

$

In Stock, Qty 15

0

4

Toro 95-3624

SPRING-COMPRESSION

$186.99

$

In Stock, only 1 left!

0

5

Toro 108-4664

BLOCK-TENSIONER

$133.99

$

In Stock, only 2 left!

0

6

Toro 127-9563

BOLT-TENSIONER

$254.99

$

Usually ships in 3-6 days

0

7

Toro 137-8712

TRACK

$1389.99

$

Usually ships in 3-6 days

0

8

Toro 138-1368

WHEEL ASM
(Superseded to 138-5231)

$343.99

$

In Stock, only 1 left!

0

9

Toro 132-8893-03

WHEEL-DRIVE

$324.99

$

In Stock, only 1 left!

0

10

Toro 132-8814-03

MOUNT-WHEEL, RH

$

$

Not available

11

Toro 26-3790

NUT-LOCK

$29.99

$

Usually ships in 3-6 days

0

12

Toro 98-4799

SPACER

$7.99

$

Usually ships in 3-6 days

0

13

Toro 327-17

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

14

Toro 3296-24

NUT-HEX

$4.99

$

In Stock, Qty 20+

0

15

Toro 130-1050

PIN-TRACK

$83.99

$

Usually ships in 3-6 days

0

16

Toro 125-0399

NUT-HH

$20.99

$

In Stock, only 2 left!

0

17

Toro 132-8944

SPACER-TRACK, OUTSIDE MOUNT

$13.99

$

Usually ships in 3-6 days

0

18

Toro 132-6053

BLOCK-TRACK

$40.99

$

Usually ships in 3-6 days

0

19

Toro 99-2659

WASHER

$11.99

$

In Stock, only 1 left!

0

20

Toro 328-5

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

21

Toro 321-37

SCREW-HH

$11.99

$

In Stock, only 2 left!

0

22

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 20+

0

24

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0
