68138 G (MB TX 2500) - Toro Mud Buggy (SN: 410500000 - 411799999) Fuel Tank and Tower Assembly Parts Diagram

Mud Buggy

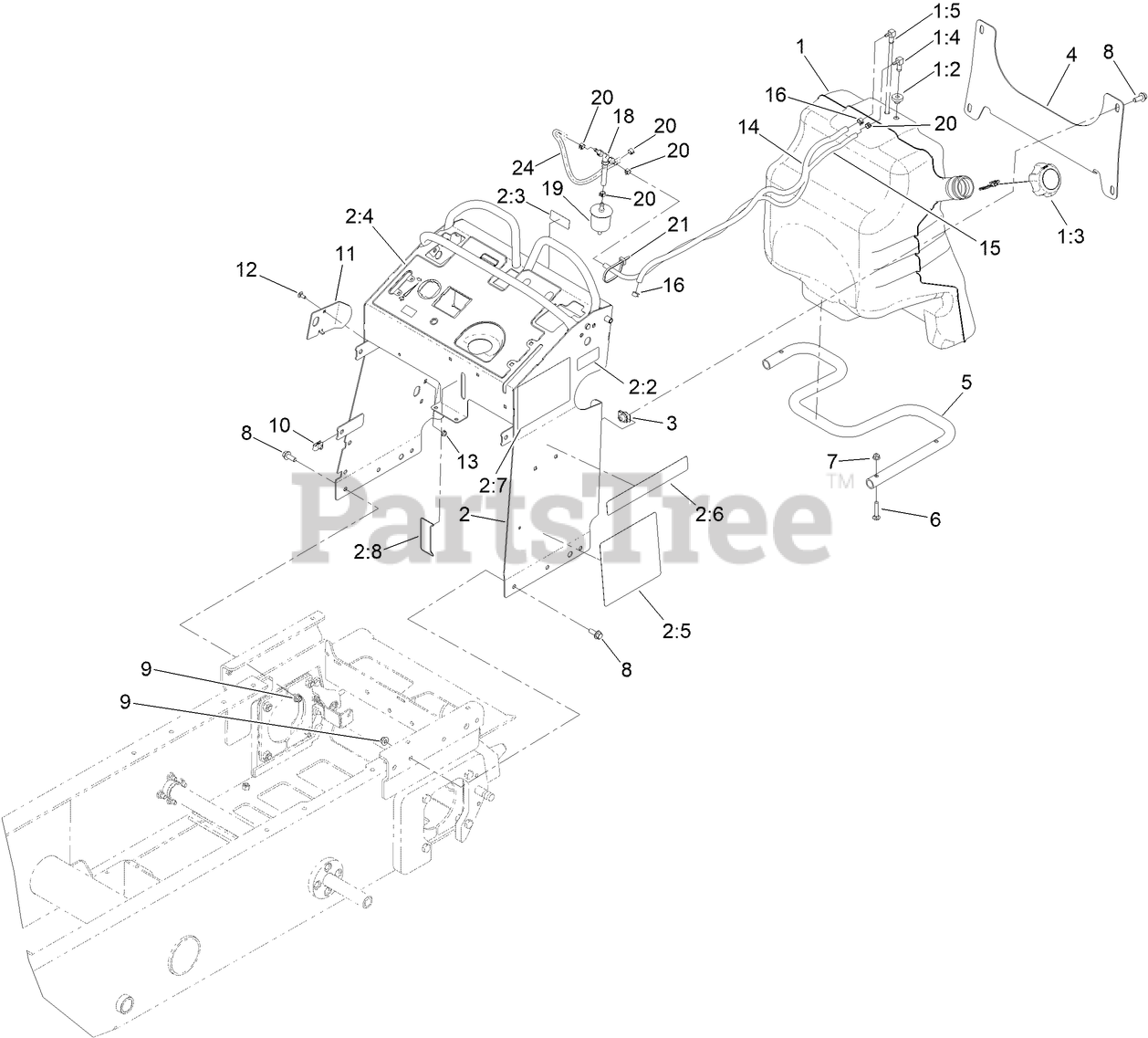

Fuel Tank and Tower Assembly Parts Diagram

  • Title
1

Toro 132-7560

FUEL TANK ASM

$433.99

$

Usually ships in 3-6 days

0

1:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

1:3

Toro 137-4127

CAP-FUEL

$23.99

$

In Stock, only 2 left!

0

1:4

Toro 104-5228

FITTING-ELBOW, 90 DEG

$18.99

$

Usually ships in 3-6 days

0

1:5

Toro 132-7559

FUEL TUBE ASM
(Superseded to 145-6195)

$45.99

$

In Stock, only 1 left!

0

2

Toro 139-7220

TOWER ASM

$1345.99

$

Usually ships in 3-6 days

0

2:2

Toro 116-8775

DECAL-FILL, FUEL

$8.99

$

Usually ships in 3-6 days

0

2:3

Toro 132-9052

DECAL-FUSE

$12.99

$

Usually ships in 3-6 days

0

2:4

Toro 139-7219

DECAL-CONTROL PANEL

$36.99

$

Usually ships in 3-6 days

0

2:5

Toro 138-7146

DECAL-SERVICE

$

$

Not available

2:6

Toro 132-9093

DECAL, MBTX-2500

$

$

Not available

2:7

Toro 136-4564

DECAL-SRVSW5X7

$

$

Currently unavailable

2:8

Toro 137-0575

DECAL-LEVEL, OIL

$16.99

$

Usually ships in 3-6 days

0

3

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0

4

Toro 132-1145-03

BRACKET-CROSS

$50.99

$

Usually ships in 3-6 days

0

5

Toro 132-5161-07

TUBE-FUEL TANK MOUNT

$

$

Not available

6

Toro 3230-5

BOLT-CAR

$0.99

$

In Stock, only 3 left!

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

8

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

11

Toro 131-7455

PLATE-STRIKER

$14.99

$

Usually ships in 3-6 days

0

12

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 132-8929

HOSE-FUEL
(Superseded to 109-0275)

$13.99

$

Usually ships in 3-6 days

0

15

Toro 110-3958

HOSE-FUEL

$27.99

$

Usually ships in 3-6 days

0

16

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

18

Toro 116-5464

TEE AND CHECK

$46.99

$

In Stock, only 1 left!

0

19

Toro 120-2235

FILTER-FUEL

$9.49

$

In Stock, Qty 5

0

20

Toro 2412-146

CLAMP-HOSE

$1.99

$

In Stock, Qty 10

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

24

Toro 132-9046

HOSE-VENT

$7.99

$

Usually ships in 3-6 days

0
