68138 G (MB TX 2500) - Toro Mud Buggy (SN: 403090254 - 403299999) Engine Assembly Parts Diagram

Mud Buggy

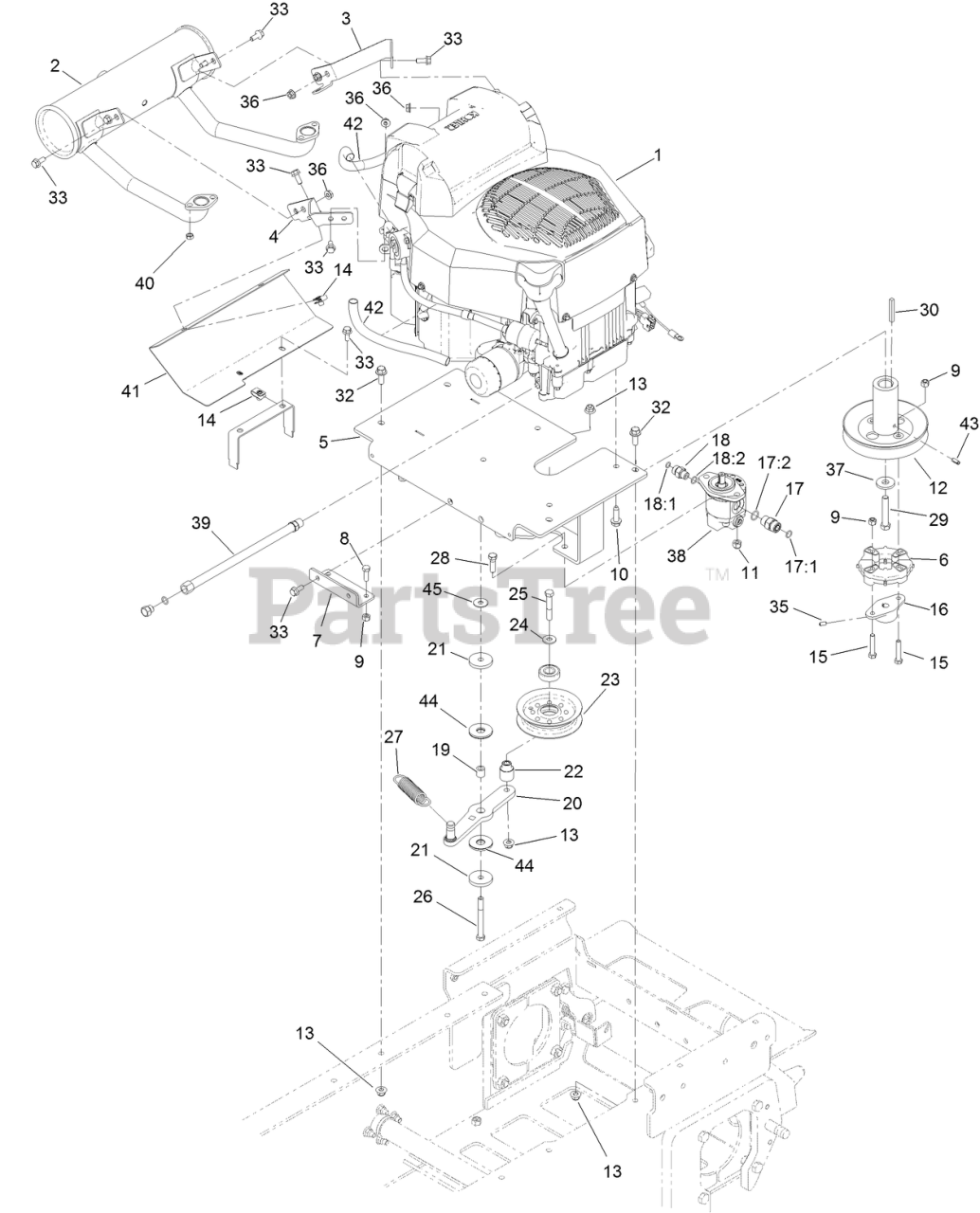

Engine Assembly Parts Diagram

  • Title

1

Toro 136-4610

ENGINE-KOHLER, ZT740
(Superseded to 139-7245)

$4884.99

$

Usually ships in 3-6 days

0

2

Toro 132-8995

MUFFLER-KOHLER

$235.99

$

Usually ships in 3-6 days

0

3

Toro 132-8916-03

BRACKET-MUFFLER

$

$

Not available

4

Toro 132-8917-03

BRACKET-MUFFLER

$

$

Not available

5

Toro 132-8907-03

PLATE-ENGINE

$

$

Not available

6

Toro 119-0652

COUPLER-RUBBER

$110.99

$

Usually ships in 3-6 days

0

7

Toro 132-8940-03

BRACKET-TANK, HYDRO

$

$

Not available

8

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 32144-109

SCREW-THD

$4.99

$

In Stock, only 2 left!

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 132-8938

PULLEY-ENGINE

$137.99

$

Usually ships in 3-6 days

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

15

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

16

Toro 132-9033

HUB-PUMP

$113.99

$

In Stock, only 2 left!

0

17

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

17:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

17:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

18

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

18:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

18:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

19

Toro 75-5270

SPACER-KNOB, SEAT

$4.99

$

In Stock, only 2 left!

0

20

Toro 132-9086-03

ARM-IDLER

$

$

Not available

21

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, Qty 20+

0

22

Toro 132-9080

BUSHING-IDLER

$15.99

$

Usually ships in 3-6 days

0

23

Toro 116-3626

See Supercession: 132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 20+

0

24

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 20+

0

25

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

27

Toro 132-1184

SPRING-EXTENSION

$21.99

$

In Stock, only 4 left!

0

28

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

29

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, Qty 10

0

30

Toro 103-4177

KEY

$5.49

$

In Stock, only 2 left!

0

32

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

33

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

35

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 20+

0

36

Toro 32128-26

NUT-FLANGE

$6.49

$

Usually ships in 3-6 days

0

37

Toro 110-6147

WASHER-FLAT

$7.99

$

In Stock, only 2 left!

0

38

Toro 132-8954

PUMP-GEAR

$794.99

$

Usually ships in 3-6 days

0

39

Toro 117-1261

HOSE-DRAIN, OIL

$29.99

$

In Stock, only 2 left!

0

40

Toro 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

41

Toro 132-9000-03

SHIELD-MANIFOLD

$27.99

$

Usually ships in 3-6 days

0

42

Toro 136-4617

SLEEVE-THERMAL

$9.49

$

Usually ships in 3-6 days

0

43

Toro 32121-134

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

44

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

45

Toro 119-4150

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
