68138 G (MB TX 2500) - Toro Mud Buggy (SN: 403090254 - 403299999) Control Assembly Parts Diagram

Mud Buggy

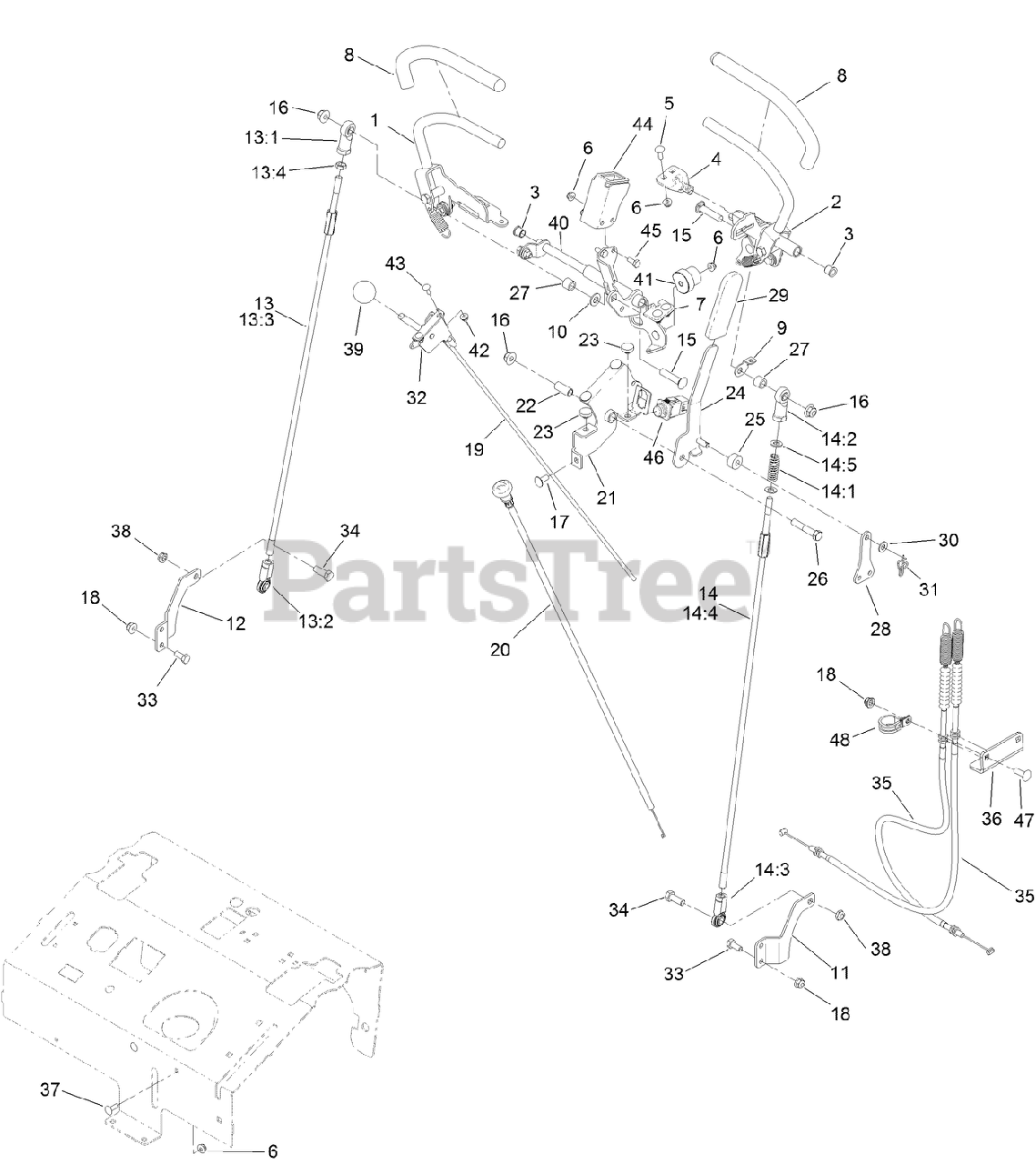

Control Assembly Parts Diagram

  • Title

1

Toro 132-9048

RH CONTROL HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0

2

Toro 132-9047

LH CONTROL HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0

3

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

4

Toro 120-3288

TAB-PIVOT, LH

$13.99

$

In Stock, only 2 left!

0

5

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

6

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 120-3287

TAB-PIVOT, RH

$13.99

$

In Stock, only 2 left!

0

8

Toro 119-0222

GRIP

$9.49

$

Usually ships in 3-6 days

0

9

Toro 132-7538

BRACKET-ADJUSTMENT, SPEED

$8.99

$

Usually ships in 3-6 days

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 131-5748-03

BRACKET-HYDRO, LH

$14.99

$

Usually ships in 3-6 days

0

12

Toro 131-5747-03

BRACKET-HYDRO, RH

$14.99

$

Usually ships in 3-6 days

0

13

Toro 138-8642

RH CONTROL ROD ASM

$88.99

$

Usually ships in 3-6 days

0

13:1

Toro 92-7008

END-ROD, FEMALE

$50.99

$

Usually ships in 3-6 days

0

13:2

Toro 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

0

13:3

Toro 132-7515

ROD-CONTROL

$14.99

$

Usually ships in 3-6 days

0

13:4

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

14

Toro 138-8643

LH CONTROL ROD ASM

$88.99

$

Usually ships in 3-6 days

0

14:1

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

14:2

Toro 92-7008

END-ROD, FEMALE

$50.99

$

Usually ships in 3-6 days

0

14:3

Toro 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

0

14:4

Toro 132-7515

ROD-CONTROL

$14.99

$

Usually ships in 3-6 days

0

14:5

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

15

Toro 3231-29

SCREW-CARR

$7.49

$

In Stock, Qty 10

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 115-1211

CABLE-CONTROL

$26.99

$

In Stock, only 2 left!

0

20

Toro 132-9035

CABLE-CHOKE

$28.99

$

Usually ships in 3-6 days

0

21

Toro 132-8919-03

BRACKET-BRAKE, PIVOT

$92.99

$

Usually ships in 3-6 days

0

22

Toro 131-3562

BEARING-SLEEVE

$1.99

$

Usually ships in 3-6 days

0

23

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

24

Toro 132-8920-03

HANDLE-ARM, BRAKE

$42.99

$

Usually ships in 3-6 days

0

25

Toro 132-9064

BUSHING-BRAKE

$12.99

$

Usually ships in 3-6 days

0

26

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 93-9847

SPACER

$9.49

$

In Stock, only 2 left!

0

28

Toro 132-1188

YOKE-CABLE

$5.49

$

Usually ships in 3-6 days

0

29

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 5

0

30

Toro 93-6079

SPACER-NYLON

$2.49

$

Usually ships in 3-6 days

0

31

Toro 112-1491

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0

32

Toro 110-5547

LEVER-CONTROL

$38.99

$

In Stock, only 1 left!

0

33

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

35

Toro 132-8921

CABLE-BRAKE

$49.99

$

In Stock, only 2 left!

0

36

Toro 132-8923-03

BRACKET-CABLE, BRAKE

$17.99

$

Usually ships in 3-6 days

0

37

Toro 3229-25

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

38

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

39

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 8

0

40

Toro 132-9029-03

PIVOT/PLATE SWITCH ASM

$124.99

$

Usually ships in 3-6 days

0

41

Toro 126-1499

CAM

$7.99

$

Usually ships in 3-6 days

0

42

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 16

0

43

Toro 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

44

Toro 132-9027-03

BRACKET-SWITCH

$38.99

$

Usually ships in 3-6 days

0

45

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 100-1268

SWITCH-PLUNGER

$58.99

$

Usually ships in 3-6 days

0

47

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 6

0

48

Toro 2412-104

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0
