68075 (RP-1400 D) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) CONTROL AND HANDLE ASSEMBLY Parts Diagram

Reversible Plate Compactor

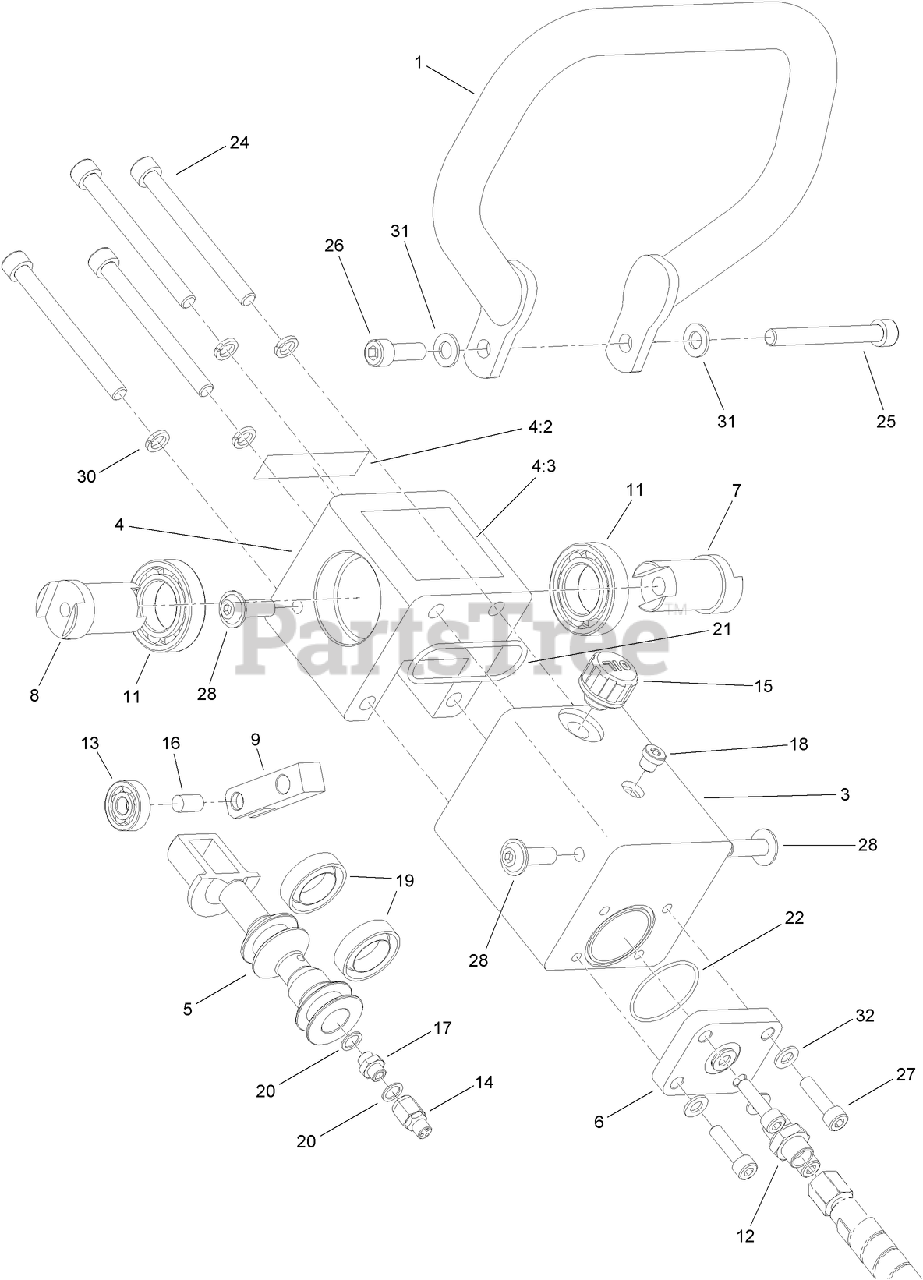

CONTROL AND HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 127-5368

HANDLE

$

$

Not available

3

Toro 127-5369

BODY-MANIFOLD (I)

$1279.99

$

Usually ships in 3-6 days

0

4

Toro 127-5060

MANIFOLD ASM

$

$

Currently unavailable

4:2

Toro 125-8206

DECAL-CAUTION

$17.99

$

Usually ships in 3-6 days

0

4:3

Toro 125-8205

DECAL-OPERATION

$

$

Not available

5

Toro 127-5370

PISTION

$1017.99

$

Usually ships in 3-6 days

0

6

Toro 127-5371

PLATE-SEALING

$

$

Not available

7

Toro 127-5372

PIVOT I

$

$

Not available

8

Toro 127-5373

PIVOT I I

$

$

Not available

9

Toro 127-5374

LEVER

$125.99

$

Usually ships in 3-6 days

0

11

Toro 127-5135

BEARING

$18.99

$

Usually ships in 3-6 days

0

12

Toro 127-5136

SOCKET

$22.99

$

Usually ships in 3-6 days

0

13

Toro 127-5137

BEARING
(Superseded to 132-7174)

$15.99

$

Usually ships in 3-6 days

0

14

Toro 127-5375

VALVE-DIRECT
(Superseded to 127-5138)

$261.99

$

Usually ships in 3-6 days

0

15

Toro 127-5139

PLUG

$84.99

$

Usually ships in 3-6 days

0

16

Toro 127-5140

PIN

$2.49

$

Usually ships in 3-6 days

0

17

Toro 127-5376

COUPING
(Superseded to 127-5138)

$261.99

$

Usually ships in 3-6 days

0

18

Toro 127-5141

PLUG

$16.99

$

Usually ships in 3-6 days

0

19

Toro 127-5377

PACKING

$18.99

$

Usually ships in 3-6 days

0

20

Toro 127-5086

RING

$3.49

$

Usually ships in 3-6 days

0

21

Toro 127-5378

O-RING

$6.99

$

Usually ships in 3-6 days

0

22

Toro 127-5379

O-RING

$6.99

$

Usually ships in 3-6 days

0

24

Toro 127-5380

BOLT

$

$

Not available

25

Toro 127-5381

BOLT

$

$

Not available

26

Toro 127-5109

BOLT

$

$

Not available

27

Toro 127-5382

BOLT

$

$

Not available

28

Toro 127-5383

BOLT

$5.49

$

Usually ships in 3-6 days

0

30

Toro 127-5151

WASHER

$

$

Not available

31

Toro 127-5084

WASHER

$

$

Not available

32

Toro 127-5104

WASHER

$0.99

$

Usually ships in 3-6 days

0
