68074 (RP-1200 D) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) VIBRATORY ASSEMBLY NO. 127-5061 Parts Diagram

Reversible Plate Compactor

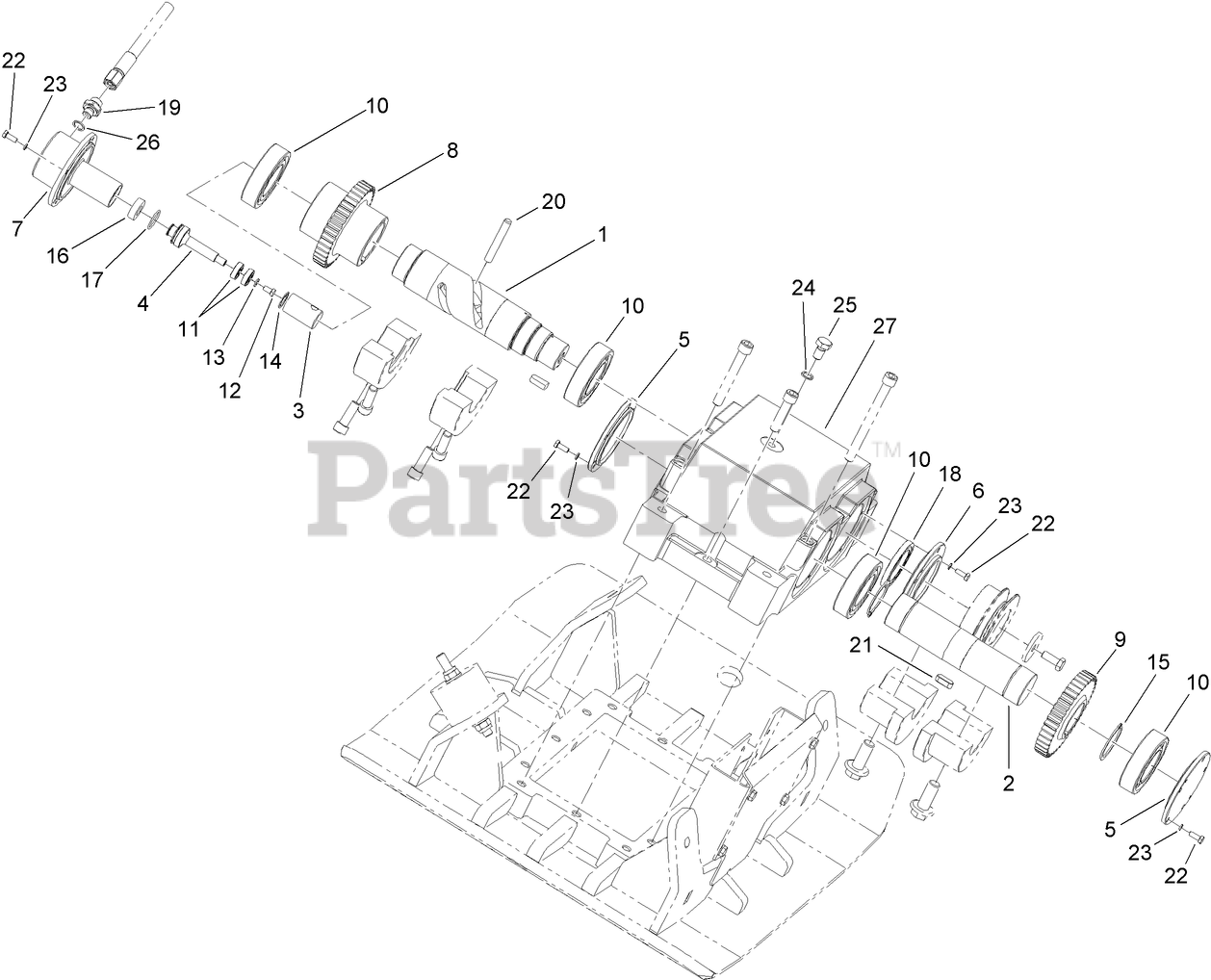

VIBRATORY ASSEMBLY NO. 127-5061 Parts Diagram

  • Title

1

Toro 127-5395

SHAFT-HOLLOW

$3960.99

$

Usually ships in 3-6 days

0

2

Toro 127-5396

SHAFT

$2583.99

$

Usually ships in 3-6 days

0

3

Toro 127-5397

SLIDE-VALVE

$

$

Not available

4

Toro 127-5398

PISTION

$306.99

$

Usually ships in 3-6 days

0

5

Toro 127-5399

COVER

$613.99

$

Usually ships in 3-6 days

0

6

Toro 127-5400

COVER

$613.99

$

Usually ships in 3-6 days

0

7

Toro 127-5401

COVER

$

$

Not available

8

Toro 127-5402

GEAR

$2254.99

$

Usually ships in 3-6 days

0

9

Toro 127-5403

GEAR

$3342.99

$

Usually ships in 3-6 days

0

10

Toro 127-5404

BEARING

$630.99

$

Usually ships in 3-6 days

0

11

Toro 127-5405

BEARING

$252.99

$

Usually ships in 3-6 days

0

12

Toro 127-5242

BOLT

$

$

Not available

13

Toro 127-5406

WASHER

$

$

Not available

14

Toro 127-5407

RING

$6.99

$

Usually ships in 3-6 days

0

15

Toro 127-5408

RING

$

$

Not available

16

Toro 127-5409

SPACER

$96.99

$

Usually ships in 3-6 days

0

17

Toro 127-5410

O-RING

$13.99

$

Usually ships in 3-6 days

0

18

Toro 127-5411

SPACER

$251.99

$

Usually ships in 3-6 days

0

19

Toro 127-5076

SOCKET

$20.99

$

Usually ships in 3-6 days

0

20

Toro 127-5412

PIN

$

$

Not available

21

Toro 127-5413

KEY

$

$

Not available

22

Toro 127-5414

BOLT

$

$

Not available

23

Toro 127-5415

WASHER

$

$

Not available

24

Toro 127-5416

RING-SEALING

$0.99

$

Usually ships in 3-6 days

0

25

Toro 127-5417

BOLT

$

$

Not available

26

Toro 127-5418

RING-SEALING

$

$

Not available

27

Toro 127-5419

HOUSING

$

$

Currently unavailable
