68073 (RP-1200) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) FRAME AND COVER ASSEMBLY Parts Diagram

Reversible Plate Compactor

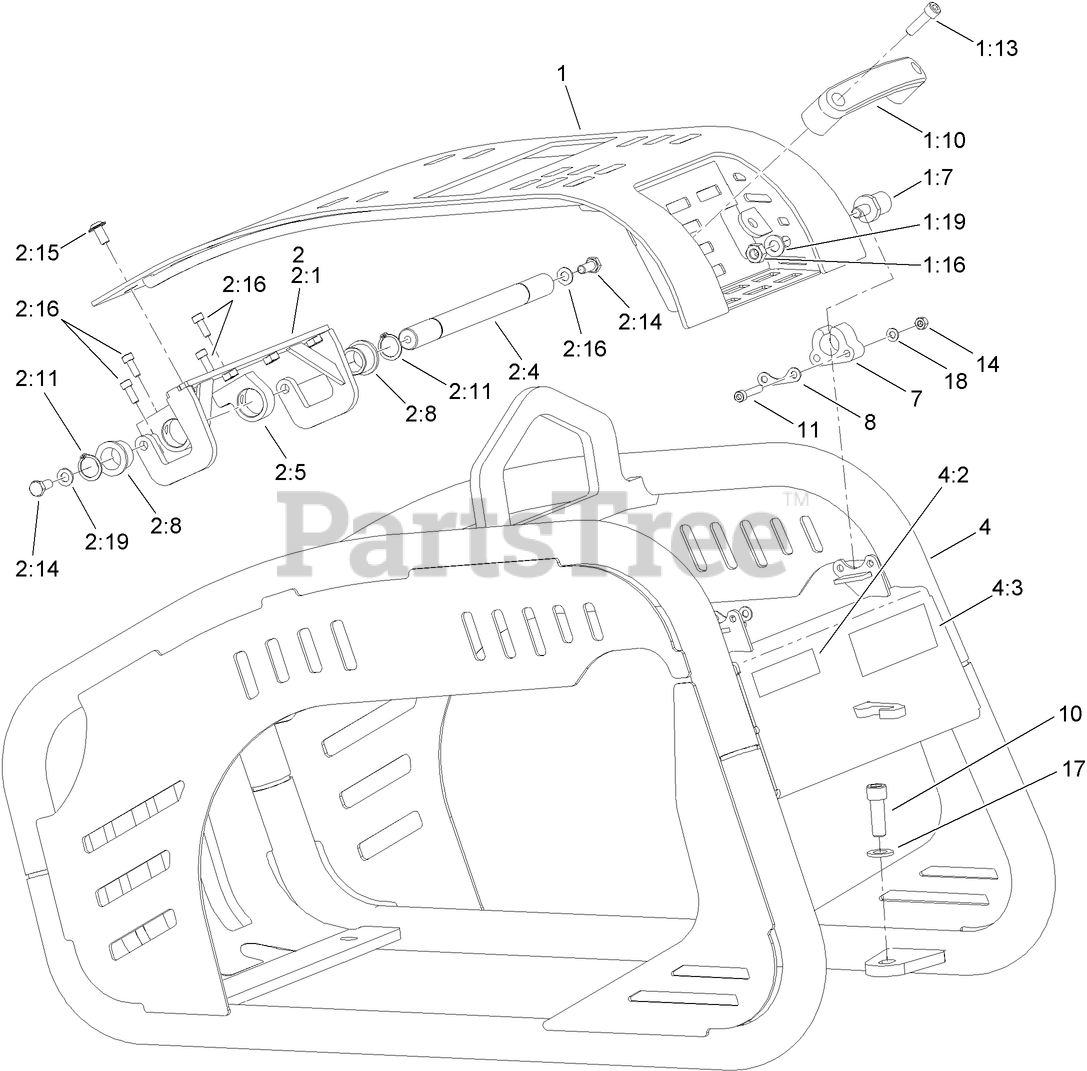

FRAME AND COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 127-5062

TOP COVER ASM

$

$

Not available

1:7

Toro 127-5421

PIN-HANDLE

$111.99

$

Usually ships in 3-6 days

0

1:10

Toro 127-5422

HANDLE

$135.99

$

Usually ships in 3-6 days

0

1:13

Toro 127-5148

BOLT

$

$

Not available

1:16

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

1:19

Toro 127-5084

WASHER

$

$

Not available

2

Toro 127-5063

COVER ASM

$

$

Not available

2:1

Toro 127-5423

BRACKET-FRONT

$

$

Not available

2:4

Toro 127-5424

SHAFT

$84.99

$

Usually ships in 3-6 days

0

2:5

Toro 127-5425

EYE

$

$

Currently unavailable

2:8

Toro 127-5426

BUSHING

$13.99

$

Usually ships in 3-6 days

0

2:11

Toro 127-5427

RING-SEALING

$0.99

$

Usually ships in 3-6 days

0

2:14

Toro 127-5184

BOLT

$

$

Not available

2:15

Toro 127-5149

BOLT

$

$

Not available

2:16

Toro 127-5428

BOLT

$

$

Not available

2:19

Toro 127-5104

WASHER

$0.99

$

Usually ships in 3-6 days

0

4

Toro 127-5059

FRAME ASM

$

$

Currently unavailable

4:2

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 2 left!

0

4:3

Toro 125-4943

DECAL-WARNING, PLATE

$3.49

$

Usually ships in 3-6 days

0

7

Toro 127-5357

SECURING-COVER

$161.99

$

Usually ships in 3-6 days

0

8

Toro 127-5358

WASHER-SECURING

$

$

Not available

10

Toro 127-5359

BOLT

$

$

Not available

11

Toro 127-5081

BOLT

$

$

Not available

14

Toro 127-5360

NUT

$

$

Currently unavailable

17

Toro 127-5083

WASHER

$0.99

$

Usually ships in 3-6 days

0

18

Toro 127-5105

WASHER

$

$

Currently unavailable
