68072 (RP-700) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) CONTROL AND HANDLE ASSEMBLY Parts Diagram

Reversible Plate Compactor

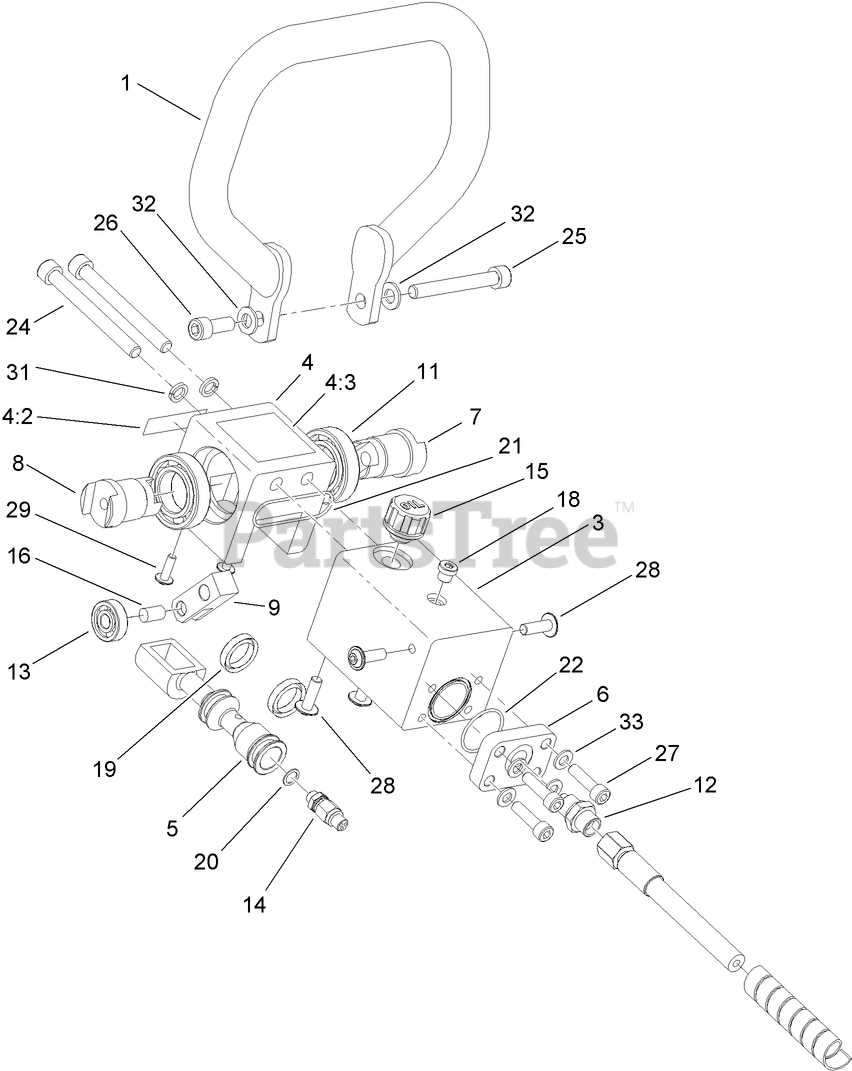

CONTROL AND HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 127-5128

HANDLE-CONTROL, TRAVEL

$561.99

$

Usually ships in 3-6 days

0

3

Toro 127-5129

MANIFOLD-VALVE

$1582.99

$

Usually ships in 3-6 days

0

4

Toro 127-5051

MANIFOLD-VALVE, UPPER

$987.99

$

Usually ships in 3-6 days

0

4:2

Toro 125-8206

DECAL-CAUTION

$16.99

$

Usually ships in 3-6 days

0

4:3

Toro 125-8205

DECAL-OPERATION

$

$

Not available

5

Toro 127-5130

SPOOL-VALVE

$887.99

$

Usually ships in 3-6 days

0

6

Toro 127-5131

COVER-END

$118.99

$

Usually ships in 3-6 days

0

7

Toro 127-5132

PIVOT-LEFT

$306.99

$

Usually ships in 3-6 days

0

8

Toro 127-5133

PIVOT-RIGHT

$306.99

$

Usually ships in 3-6 days

0

9

Toro 127-5134

ARM-PIVOT

$119.99

$

Usually ships in 3-6 days

0

11

Toro 127-5135

BEARING

$17.99

$

Usually ships in 3-6 days

0

12

Toro 127-5136

SOCKET

$20.99

$

Usually ships in 3-6 days

0

13

Toro 127-5137

BEARING
(Superseded to 132-7174)

$14.99

$

Usually ships in 3-6 days

0

14

Toro 127-5138

VALVE-CHECK

$248.99

$

Usually ships in 3-6 days

0

15

$80.99

$

Usually ships in 3-6 days

0

16

$2.49

$

Usually ships in 3-6 days

0

18

$15.99

$

Usually ships in 3-6 days

0

19

Toro 127-5142

PACKING

$17.99

$

Usually ships in 3-6 days

0

20

Toro 127-5143

RING-ALUMINUM

$

$

Not available

21

Toro 127-5144

O-RING

$

$

Not available

22

Toro 127-5145

O-RING

$

$

Not available

24

$

$

Not available

25

$

$

Not available

26

$

$

Not available

27

$

$

Not available

28

$

$

Not available

29

$1.49

$

Usually ships in 3-6 days

0

31

Toro 127-5151

WASHER

$

$

Not available

32

Toro 127-5084

WASHER

$

$

Not available

33

Toro 127-5104

WASHER

$0.99

$

Usually ships in 3-6 days

0
