68071 (RP-500) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) ENGINE ASSEMBLY Parts Diagram

Reversible Plate Compactor

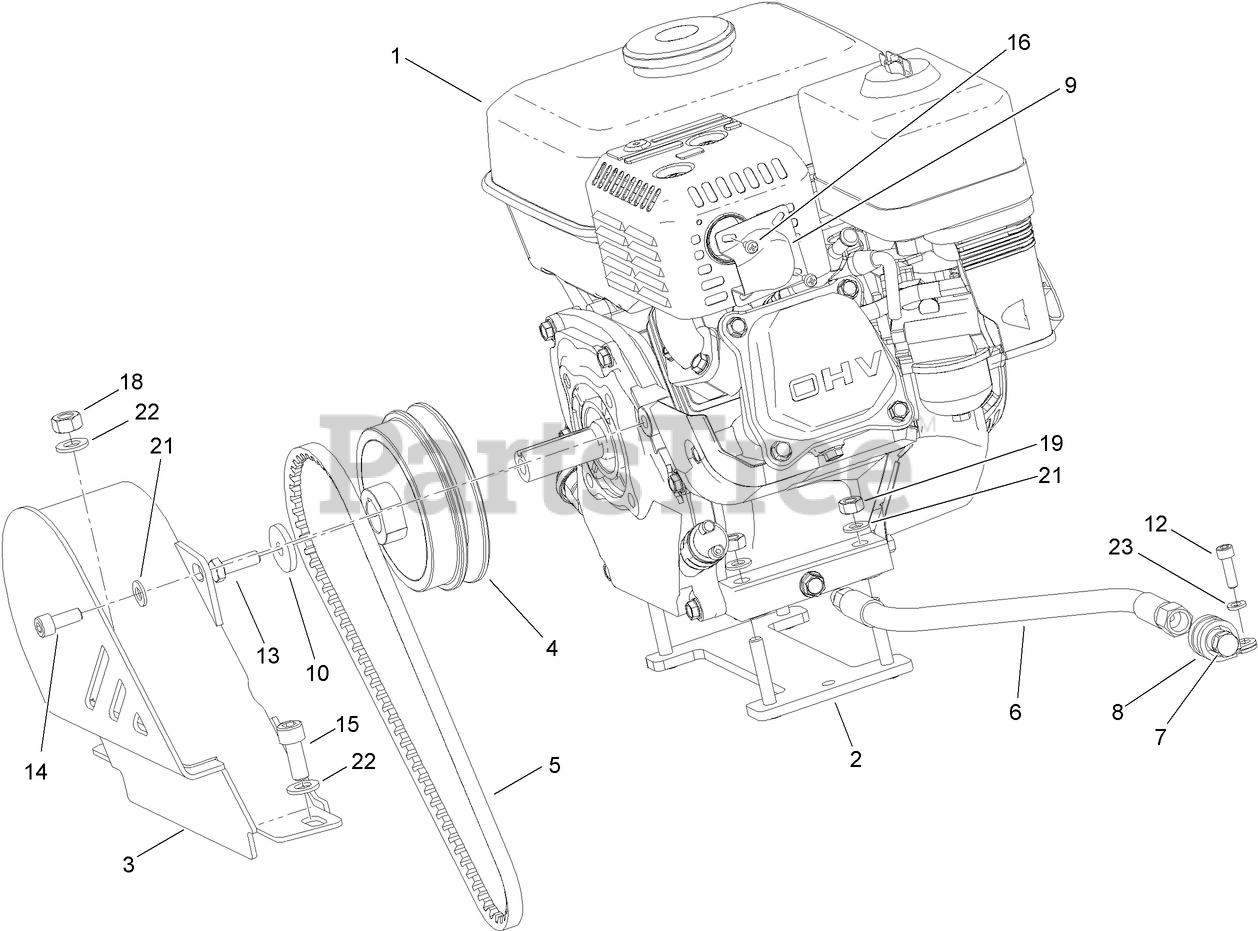

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 127-5088

ENGINE-HONDA

$2389.99

$

Usually ships in 3-6 days

0

2

Toro 127-5089

MOUNT-ENGINE

$215.99

$

Usually ships in 3-6 days

0

3

Toro 127-5090

GUARD-BELT

$

$

Not available

4

Toro 127-5091

PULLEY-DRIVE

$1130.99

$

Usually ships in 3-6 days

0

5

Toro 127-5092

BELT-V

$40.99

$

In Stock, only 1 left!

0

6

Toro 127-5093

HOSE-OIL DRAIN

$

$

Not available

7

Toro 127-5094

PLUG-OIL

$17.99

$

Usually ships in 3-6 days

0

8

Toro 127-5095

CLIP-HOSE

$9.99

$

Usually ships in 3-6 days

0

9

Toro 127-5096

DEFLECTOR-EXHAUST

$64.99

$

Usually ships in 3-6 days

0

10

Toro 127-5097

WASHER

$10.99

$

Usually ships in 3-6 days

0

12

Toro 127-5098

BOLT

$

$

Not available

13

Toro 127-5099

BOLT

$

$

Not available

14

Toro 127-5100

BOLT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 127-5101

BOLT

$0.99

$

Usually ships in 3-6 days

0

16

Toro 127-5102

BOLT

$0.99

$

Usually ships in 3-6 days

0

18

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

19

Toro 127-5103

NUT

$

$

Not available

21

Toro 127-5104

WASHER

$0.99

$

Usually ships in 3-6 days

0

22

Toro 127-5084

WASHER

$

$

Not available

23

Toro 127-5105

WASHER

$

$

Currently unavailable
