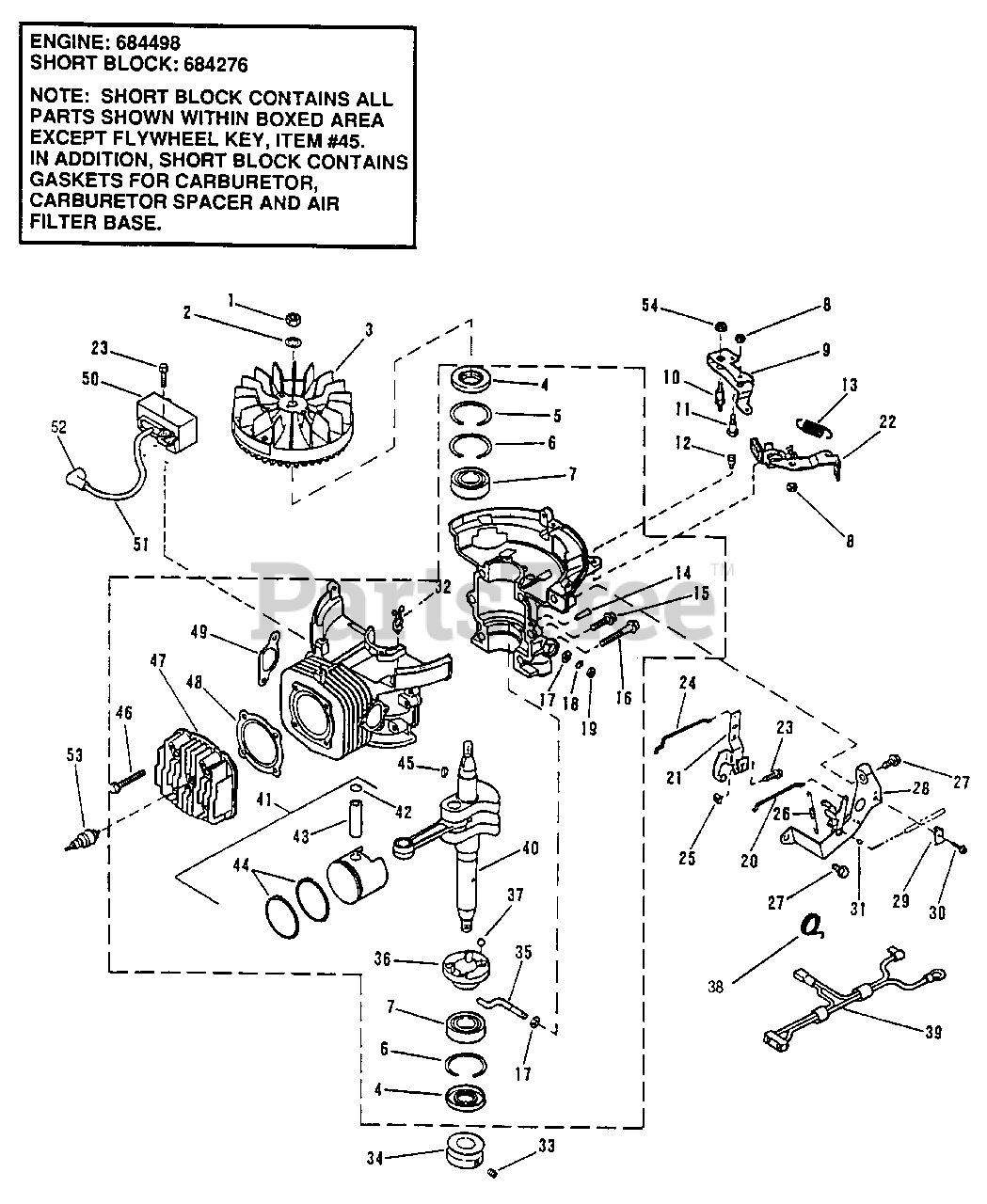

680568 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) ENGINE MODELS: 680568à Parts Diagram

Walk-Behind Mower

ENGINE MODELS: 680568à Parts Diagram

  • Title
+

Lawn-Boy 318535

Adhesive

$

$

Currently unavailable

1

Lawn-Boy 130743

Nut-Flywheel

$3.49

$

In Stock, Qty 6

0

2

Lawn-Boy 316959

Lockwasher-Flywheel
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 684023

Flywheel

$

$

Not available

4

Lawn-Boy 613182

Oil Seal-Crankshaft

$23.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 613183

Retaining Ring

$

$

Not available

6

Lawn-Boy 613265

Retaining Ring

$

$

Not available

7

Lawn-Boy 684022

Bearing-Crankshaft

$

$

Not available

8

Lawn-Boy 602315

Locknut

$4.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 613390

Brake Actuator Lever

$

$

Not available

10

Lawn-Boy 614032

Shoulder Stud-Actuator Lever

$33.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 613360

Shoulder Bolt

$

$

Not available

12

Lawn-Boy 613756

Shoulder Bolt

$

$

Not available

13

Lawn-Boy 613386

Brake Spring

$9.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 300402

Taper Pin

$

$

Not available

15

Lawn-Boy 613110

Screw-Crankcase

$

$

Not available

16

Lawn-Boy 613111

Screw-Crankcase

$5.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 613429

Washer-Governor Shaft

$

$

Not available

18

Lawn-Boy 613328

Retainer Ring-Governor Shaft

$5.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 613230

Oil Seal-Governor Shaft

$

$

Not available

20

Lawn-Boy 613274

Choke Rod

$

$

Not available

21

Lawn-Boy 614030

Governor Control Lever

$

$

Not available

22

Lawn-Boy 684365

Brake & Switch Kit

$

$

Not available

23

$2.49

$

In Stock, only 2 left!

0

24

Lawn-Boy 613277

Throttle Rod

$

$

Not available

25

Lawn-Boy 613336

Nut-Governor Lever

$

$

Not available

26

Lawn-Boy 614043

Governor Spring

$

$

Not available

27

Lawn-Boy 613337

Screw-Governor Bracket

$

$

Not available

28

Lawn-Boy 684090

Governor Bracket Assy (Inc. 38)

$68.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 613388

Clamp-Throttle Cable to Brkt
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 613387

Screw-Cable Bracket

$

$

Not available

31

Lawn-Boy 613430

Throttle Control Wire Retainer
(Superseded to 92-6397)

$

$

Not available

32

Lawn-Boy 613683

Wire Tie

$4.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 613227

Set Screw-Pulley (680523)
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 613810

Engine Pulley (680523)

$

$

Not available

35

Lawn-Boy 613747

Governor Shaft

$

$

Not available

36

Lawn-Boy 684169

Governor Ramp
(Superseded to 684465)

$

$

Not available

37

Lawn-Boy 613229

Governor Ball

$

$

Not available

38

Lawn-Boy 613628

Torsion Spring

$

$

Not available

39

Lawn-Boy 684367

Wire Harness

$

$

Not available

40

Lawn-Boy 683993

Crankshaft & Connecting Rod

$

$

Not available

41

Lawn-Boy 684272

Piston and Ring Assy. (Standard)(Inc. 42-44)

$

$

Not available

Lawn-Boy 684307

Piston & Ring Assembly (.020 Oversize)(Inc. 42-44)

$

$

Not available

42

Lawn-Boy 613258

Retaining Ring

$

$

Not available

43

Lawn-Boy 613148

Wrist Pin

$

$

Not available

44

Lawn-Boy 684273

Ring Set (Standard)

$

$

Not available

Lawn-Boy 684309

Ring Set (.020 Oversize)

$

$

Not available

45

Lawn-Boy 607199

Key-Flywheel

$5.49

$

In Stock, Qty 9

0

46

Lawn-Boy 613233

Screw-Cylinder Head to Block

$4.49

$

Usually ships in 3-6 days

0

47

Lawn-Boy 613197

Cylinder Head

$

$

Not available

48

Lawn-Boy 613382

Head Gasket

$

$

Not available

49

Lawn-Boy 613266

Exhaust Gasket

$

$

Not available

50

Lawn-Boy 684049

C.D. Ignition Module
(Superseded to 99-2916)

$90.99

$

In Stock, only 3 left!

0

51

Lawn-Boy 684179

High Tension Lead & Cvr (Inc. 52)

$32.99

$

In Stock, only 1 left!

0

52

Lawn-Boy 684698

Cover & Terminal Assembly

$7.49

$

Usually ships in 3-6 days

0

53

Lawn-Boy 614009

Spark Plug

$5.49

$

In Stock, only 3 left!

0

54

Lawn-Boy 614033

Hex Flange Nut
(Superseded to 700098)

$

$

Not available
