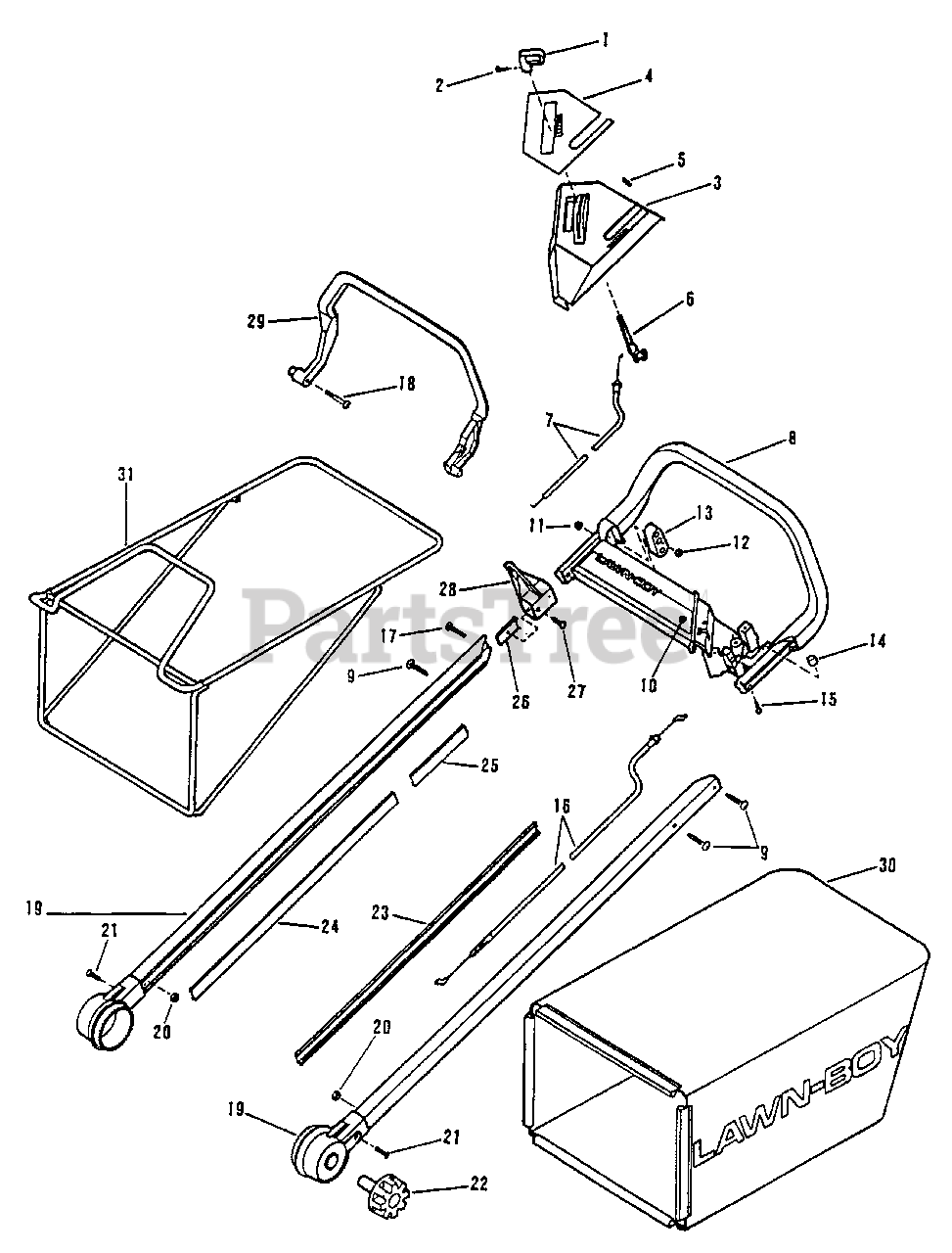

680567 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) HANDLE MODEL: 680567 Parts Diagram

Walk-Behind Mower

HANDLE MODEL: 680567 Parts Diagram

  • Title

1

Lawn-Boy 684399

Throttle Knob Assy (Inc. 2)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 614013

Set Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 684425

Upper Cover Assy (Inc. 4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 614565

Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 145482

Plug

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 684446

Throttle Lever

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 684210

Throttle Cable Assy

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 684581

Handle & Decal Assy (Inc. 9-10)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 614023

Thread Forming Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 613980

Decal-Lawn-Boy

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 613406

Locknut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 602315

Locknut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 613412

Bail Block

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 700790

Bumper

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 613549

Screw-Cover to Handle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 684209

Engine Brake Cable Assy

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 613405

Screw-Extrusion & Block to Hdl

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 613555

Screw-Bail Pivot

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 684695

Handle Shaft Assy (Inc. 20-21)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$234.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 613406

Nut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 613401

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 613358

Handle Adjustment Knob

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 614518

Handle Insert-Cable Side

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 613408

Handle Insert-Below Guide

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 613601

Handle Insert-Above Guide

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 613393

Nut Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 611499

Screw-Rope Guide to Handle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 684151

Rope Guide

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 613416

Engine Brake Bail

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Rear Grass Bag (Accessory Part #684189)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 684130

Frame

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$237.45

$

In Stock, only 1 left!

0
