680564 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) HOUSING AND SHROUD MODELS: 680564 Parts Diagram

Walk-Behind Mower

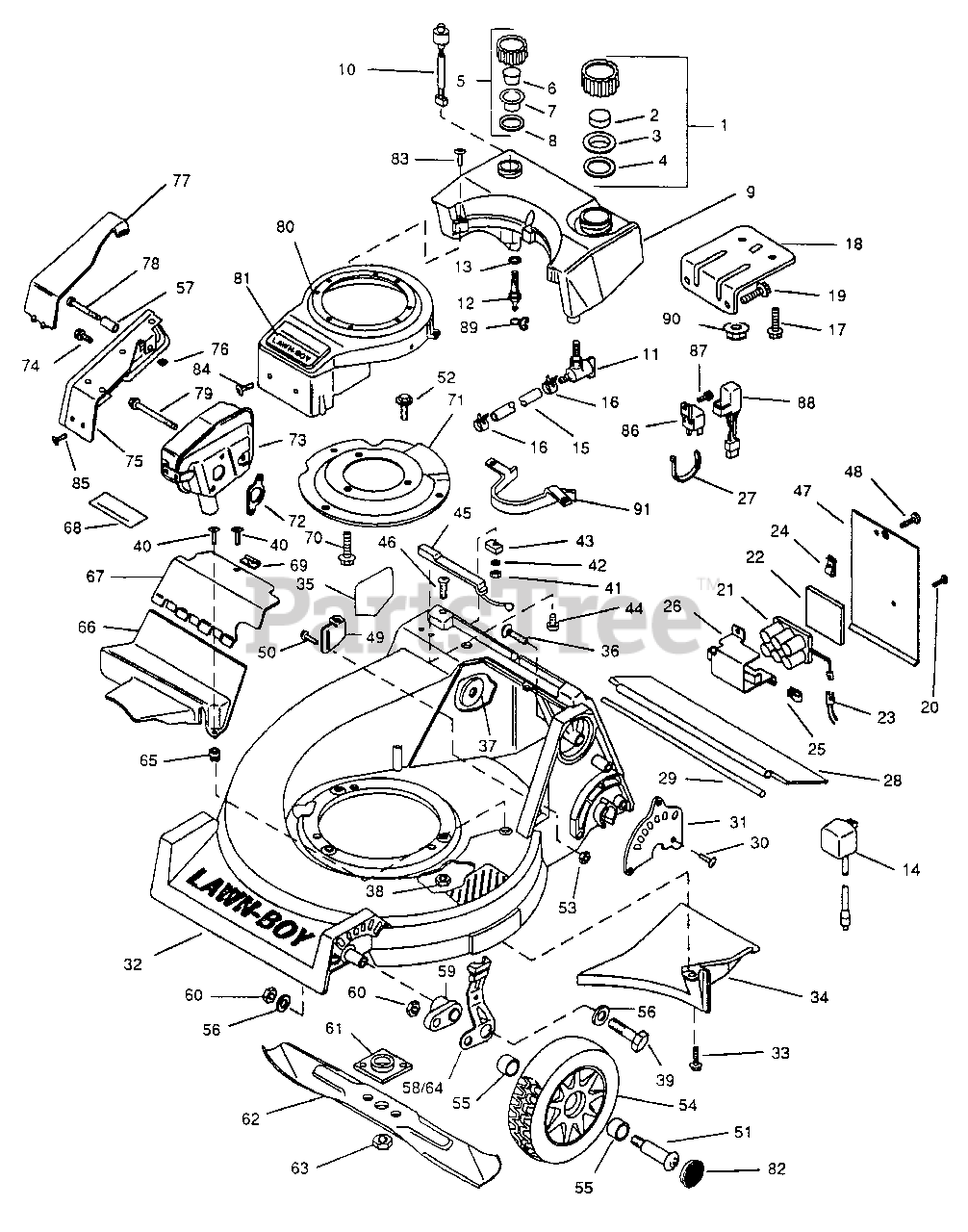

HOUSING AND SHROUD MODELS: 680564 Parts Diagram

  • Title

1

Lawn-Boy 684104

Fuel Cap Assembly (Inc. 2-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

2

Lawn-Boy 609150

Baffle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$5.49

$

In Stock, Qty 11

0

3

Lawn-Boy 614271

Baffle Cover

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$4.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 613311

Gasket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$3.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 684105

Oil Cap Assembly (Inc. 6-8)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

6

Lawn-Boy 614274

Baffle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

7

Lawn-Boy 614272

Baffle Cover

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

8

Lawn-Boy 613313

Gasket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

9

Lawn-Boy 684375

Fuel/Oil Tank Assy (Inc. 10-13)
(Superseded to 93-1208)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

10

Lawn-Boy 684376

Switch-Low Oil

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$112.99

$

Usually ships in 3-6 days

0

Lawn-Boy 705137

Nut-Oil Switch

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

11

Lawn-Boy 684093

Fuel Shut-Off Valve

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

12

Lawn-Boy 684336

Oil Fitting Assembly (Inc. 13)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

13

Lawn-Boy 613948

O-Ring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

14

Lawn-Boy 684180

Battery Charger (680564)
(Superseded to 99-6049)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$181.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 613531

Fuel Line

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

16

Lawn-Boy 613489

Clamp-Fuel Line

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$2.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 614181

Screw-Fuel Tank Mounting

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

18

Lawn-Boy 614182

Fuel Tank Bracket (680564)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

Lawn-Boy 614173

Fuel Tank Bracket (680562)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

19

Lawn-Boy 613111

Bolt-Bracket & Starter (680564)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$5.49

$

Usually ships in 3-6 days

0

Lawn-Boy 613337

Bolt-Bracket To Block (680562)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

20

Lawn-Boy 800019

Screw-Battery Bracket (680564)
(Superseded to 614512)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

21

Lawn-Boy 684708

Battery Pack (680564)(Inc. 22)
(Superseded to 55-7520)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$176.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 612510

Pad-Battery (680564)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$7.49

$

In Stock, only 1 left!

0

23

Lawn-Boy 684562

Wire Harness, Lower (680564)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$234.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 613340

Speednut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$1.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 604227

Speednut (680564)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

26

Lawn-Boy 613344

Battery Bracket (680564)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

27

Lawn-Boy 614249

Tie Strap (680564)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$1.49

$

In Stock, Qty 6

0

28

Lawn-Boy 613322

Trailing Shield
(Superseded to 99-6408)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

29

Lawn-Boy 610026

Rod-Trailing Shield

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

30

Lawn-Boy 613381

Screw-Plate to Housing

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$5.49

$

In Stock, only 1 left!

0

31

Lawn-Boy 614433

Height Adjust Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

32

Lawn-Boy 684688

Housing Assy (Inc. 33-37)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$1458.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 608418

Screw-Baffle to Housing
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$3.49

$

In Stock, only 3 left!

0

34

Lawn-Boy 613289

Baffle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$39.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 612284

Decal-Blade Contact Warning
(Superseded to 56-6270)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$8.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 613321

Handle Mounting Bolt

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

37

Lawn-Boy 613910

Washer-R.H. Handle Mounting
(Superseded to 5-3177)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$2.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 608311

Locknut-Mtg Plate To Housing

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$2.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 613320

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

40

Lawn-Boy 609807

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

41

Lawn-Boy 130450

Nut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

42

Lawn-Boy 613625

Lockwasher

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

43

Lawn-Boy 684193

Magnet Assembly

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

44

Lawn-Boy 613749

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

45

Lawn-Boy 684366

Switch-Bag Lock

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

46

Lawn-Boy 303724

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

47

Lawn-Boy 613346

Access Door

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

48

Lawn-Boy 613339

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$1.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 614522

Cable Anchor

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

50

Lawn-Boy 700748

Bolt

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

51

Lawn-Boy 614430

Shoulder Bolt-Wheel

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

52

Lawn-Boy 611774

Screw-Mtg Plate To Housing

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$3.99

$

In Stock, only 2 left!

0

53

Lawn-Boy 602315

Nut-Cable Anchor To Housing

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$4.49

$

In Stock, only 2 left!

0

54

Lawn-Boy 684645

Wheel & Tire Assy (Inc. 55)
(Superseded to 684777)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$52.99

$

In Stock, only 2 left!

0

55

Lawn-Boy 27-625C

Bushing

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Currently unavailable

56

Lawn-Boy 610361

Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$1.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 613371

Spacer-Muffler Guard

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

58

Lawn-Boy 684220

Knob & Spring Assembly-L.H.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

59

Lawn-Boy 613917

Front Height Adj Arm

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$91.99

$

Usually ships in 3-6 days

0

60

Lawn-Boy 610358

Nut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$2.49

$

In Stock, only 2 left!

0

61

Lawn-Boy 677525

Collar & Plate Assembly

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$23.99

$

In Stock, only 1 left!

0

62

Lawn-Boy 683682

21" Blade
(Superseded to 612543-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$29.99

$

In Stock, only 4 left!

0

63

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$5.99

$

Usually ships in 3-6 days

0

64

Lawn-Boy 684219

Knob & Spring Assembly-R.H. (Not Shown)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

65

Lawn-Boy 611380

Grommet

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$3.49

$

Usually ships in 3-6 days

0

66

Lawn-Boy 613532

Lower Drive Cover

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

67

Lawn-Boy 684337

Upper Drive Cvr w/Decal (Inc. 68)
(Superseded to 684329)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

68

Lawn-Boy 613979

Decal-Warning

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

69

Lawn-Boy 613341

Speednut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

70

Lawn-Boy 613483

Screw-Mtg. Plate To Engine

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

71

Lawn-Boy 613206

Engine Mounting Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$126.99

$

Usually ships in 3-6 days

0

72

Lawn-Boy 613266

Exhaust Gasket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

73

Lawn-Boy 684579

Muffler

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

74

Lawn-Boy 700056

Screw-Muffler Guard

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

75

Lawn-Boy 684157

Muffler Guard Assy (Inc. 76-77)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$173.99

$

Usually ships in 3-6 days

0

76

Lawn-Boy 613329

Pushnut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$1.99

$

Usually ships in 3-6 days

0

77

Lawn-Boy 613378

Muffler Cover

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

78

Lawn-Boy 613372

Screw-Muffler Guard

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

79

Lawn-Boy 613282

Screw-Muffler

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

80

Lawn-Boy 684429

Shroud & Applique Assy (Inc. 81)
(Superseded to 93-1219)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

81

Lawn-Boy 614041

Applique

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

82

Lawn-Boy 614428

Cap-Hub

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$2.49

$

In Stock, only 4 left!

0

83

Lawn-Boy 613330

Screw-Fuel Tank

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

84

Lawn-Boy 613281

Screw-Shroud
(Superseded to 3274-31)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$1.49

$

In Stock, only 3 left!

0

85

Lawn-Boy 613576

Screw-Muffler Guard

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

86

Lawn-Boy 682776

Starter Relay (680564)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

87

Lawn-Boy 607745

Screw-Relay (680564)
(Superseded to 613269)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$1.99

$

Usually ships in 3-6 days

0

88

Lawn-Boy 684246

Electronic Cup Assy (680564)
(Superseded to 100-2927)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$46.99

$

Usually ships in 3-6 days

0

89

Lawn-Boy 613516

Clamp-Oil Hose

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

90

Lawn-Boy 700098

Nut (680562)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available

91

Lawn-Boy 613557

Belt Snubber

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for both models except where specifically identified.

$

$

Not available
