680561 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) ELECTRIC STARTER MODEL: 680561 Parts Diagram

Walk-Behind Mower

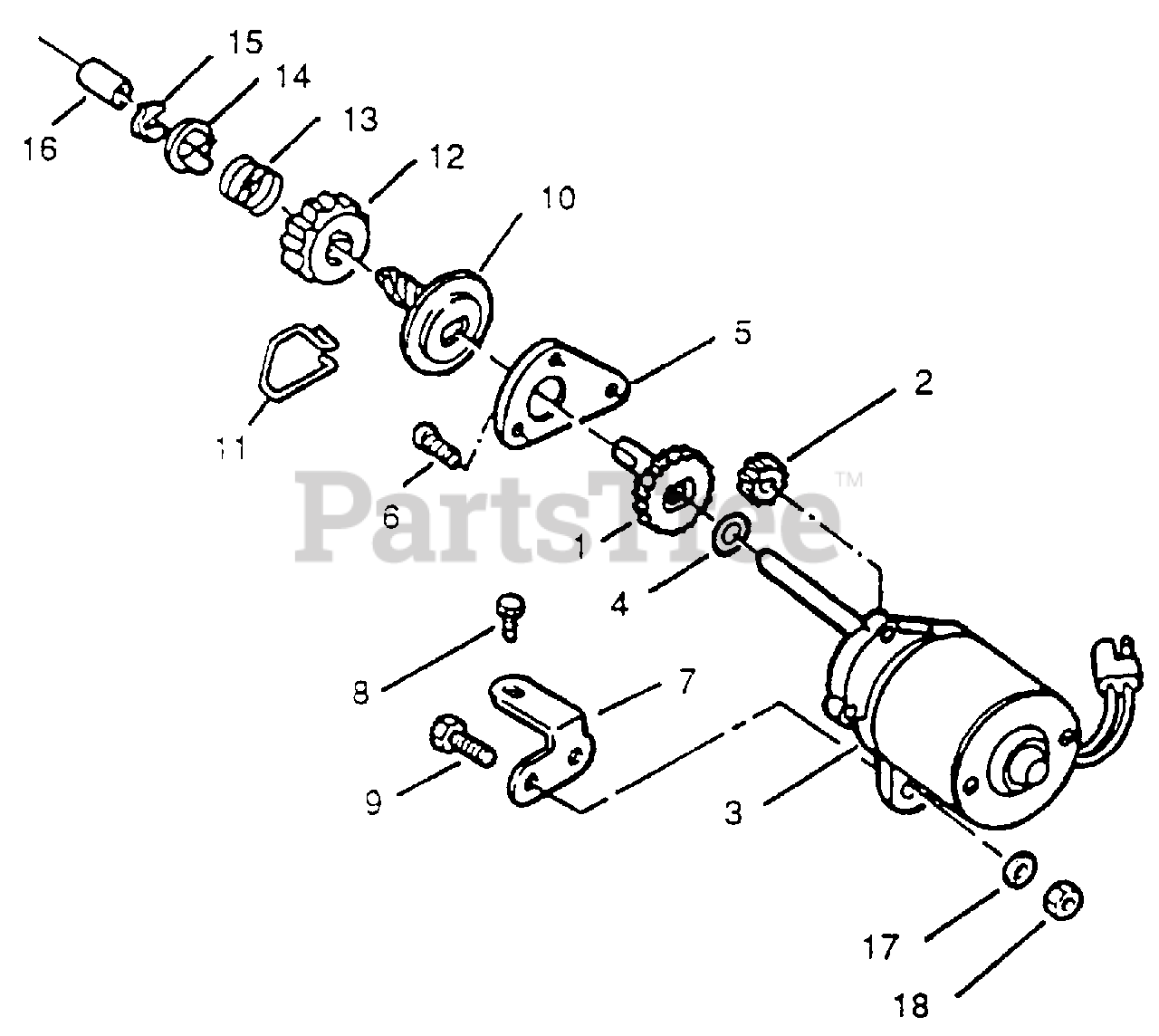

ELECTRIC STARTER MODEL: 680561 Parts Diagram

  • Title

Lawn-Boy 682806

Electric Starter Assembly (Inc. 1-6)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$799.99

$

Usually ships in 3-6 days

0

1

Lawn-Boy 611386

Gear-Driven

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611385

Pinion-Motor Shaft

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682807

Motor Housing & Pin Assembly
(Superseded to 682806)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$799.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 609568

Washer
(Superseded to 252-98)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 613517

Plate-Gear Cover

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609130

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 612661

Bracket-Starter Mounting

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 609471

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

9

Lawn-Boy 613075

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 682809

Pinion, Spring & Clutch Ass'y (Inc. 11-15)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 609229

Spring-Drag

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

12

Lawn-Boy 610258

Pinion

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$31.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 610257

Spring-Pinion Return

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 613451

Washer-Pinion Stop

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 608622

Retaining Ring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

16

Lawn-Boy 609572

Sleeve

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$41.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 306992

Lockwasher

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 328712

Nut
(Superseded to 3217-26)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 2 left!

0
