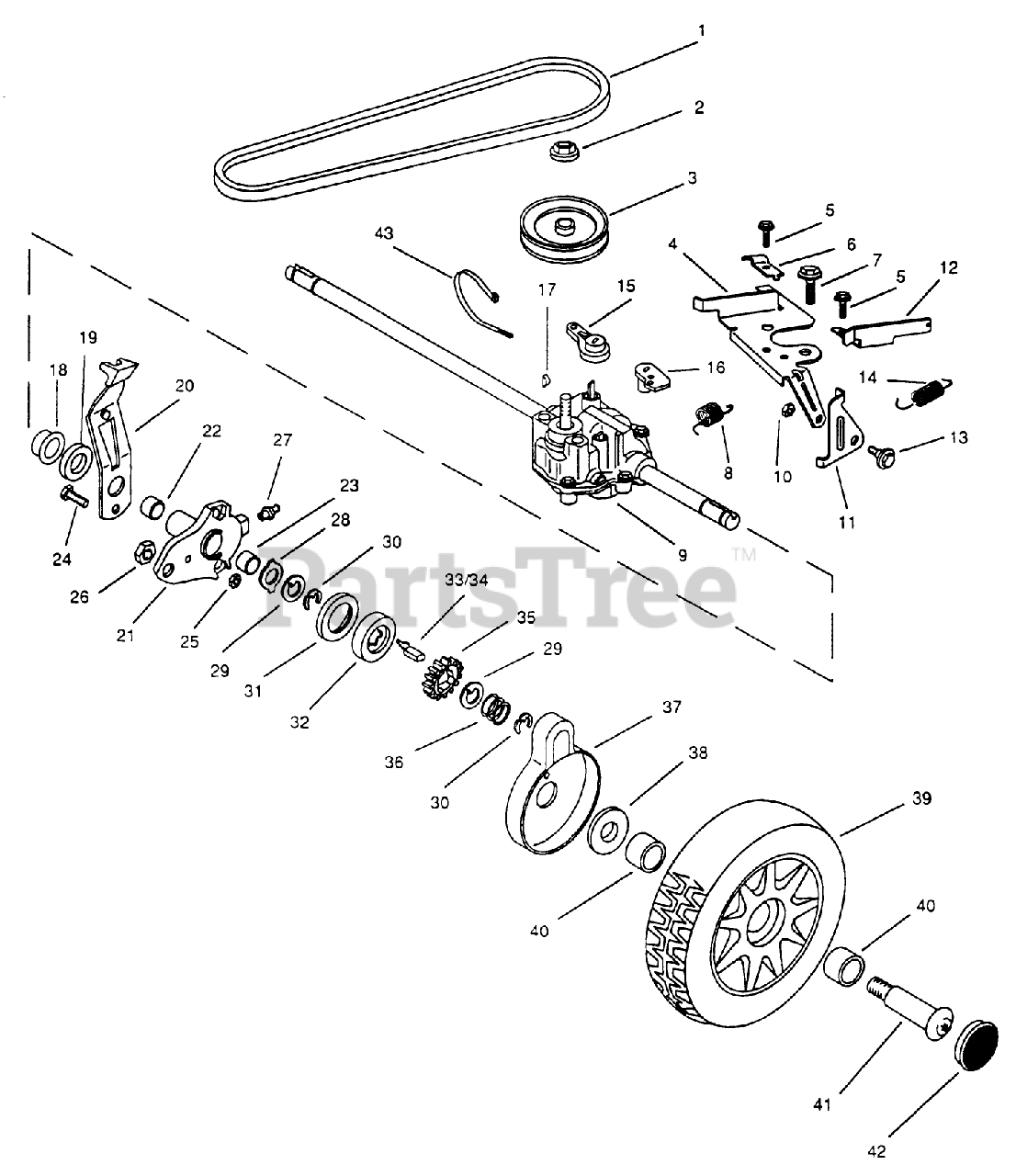

680552 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) Drive Models: 680562 Parts Diagram

Walk-Behind Mower

Drive Models: 680562 Parts Diagram

  • Title

1

Lawn-Boy 613842

V BELT SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 613770

See Supercession: 95-1579
(Superseded to 95-1579)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 613445

PULLEY TRANS ADAMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$108.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 614524

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 613387

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 613385

CLAMP-CABLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 146134

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 614525

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 684617

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 8

0

11

Lawn-Boy 614523

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 614526

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 614527

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 614529

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 614316

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 614317

ARM - CLUTCH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 611840

KEY GALGER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 614443

RING ISO

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 614447

SPACER-SHAFT, AXLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 684618

KNOB&SPRING AY.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 684616

See Supercession: 92-7746
(Superseded to 92-7746)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$50.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 614439

See Supercession: 70-9760
(Superseded to 70-9760)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 6

0

23

Lawn-Boy 614440

See Supercession: 47-2900
(Superseded to 47-2900)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, only 4 left!

0

24

Lawn-Boy 602480

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 614442

DISCONTINUED-NOT A SERVICE PART

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 614435

See Supercession: 65-4730
(Superseded to 65-4730)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 3 left!

0

29

Lawn-Boy 614436

See Supercession: 65-4740
(Superseded to 65-4740)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

30

Lawn-Boy 614444

See Supercession: 65-2720
(Superseded to 65-2720)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

31

Lawn-Boy 614448

See Supercession: 65-4710
(Superseded to 65-4710)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 5

0

32

Lawn-Boy 614437

See Supercession: 65-4760
(Superseded to 65-4760)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 614445

See Supercession: 66-6040
(Superseded to 66-6040)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.49

$

In Stock, Qty 12

0

34

Lawn-Boy 614446

See Supercession: 66-6050
(Superseded to 66-6050)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.49

$

In Stock, Qty 8

0

35

Lawn-Boy 614438

See Supercession: 65-4750
(Superseded to 65-4750)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$11.99

$

In Stock, Qty 18

0

36

Lawn-Boy 614449

See Supercession: 65-4720
(Superseded to 65-4720)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 614427

See Supercession: 94-1609
(Superseded to 94-1609)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, Qty 5

0

38

Lawn-Boy 614426

WASHER-STEPPED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 20+

0

39

Lawn-Boy 684646

See Supercession: 92-1042
(Superseded to 92-1042)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$55.99

$

In Stock, only 3 left!

0

40

Lawn-Boy 27-6250

BUSHING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 8

0

41

Lawn-Boy 614430

SHOULDER BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 614428

CAP-HUB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

43

Lawn-Boy 613911

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
