680552 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) Drive Model: 680568 Parts Diagram

Walk-Behind Mower

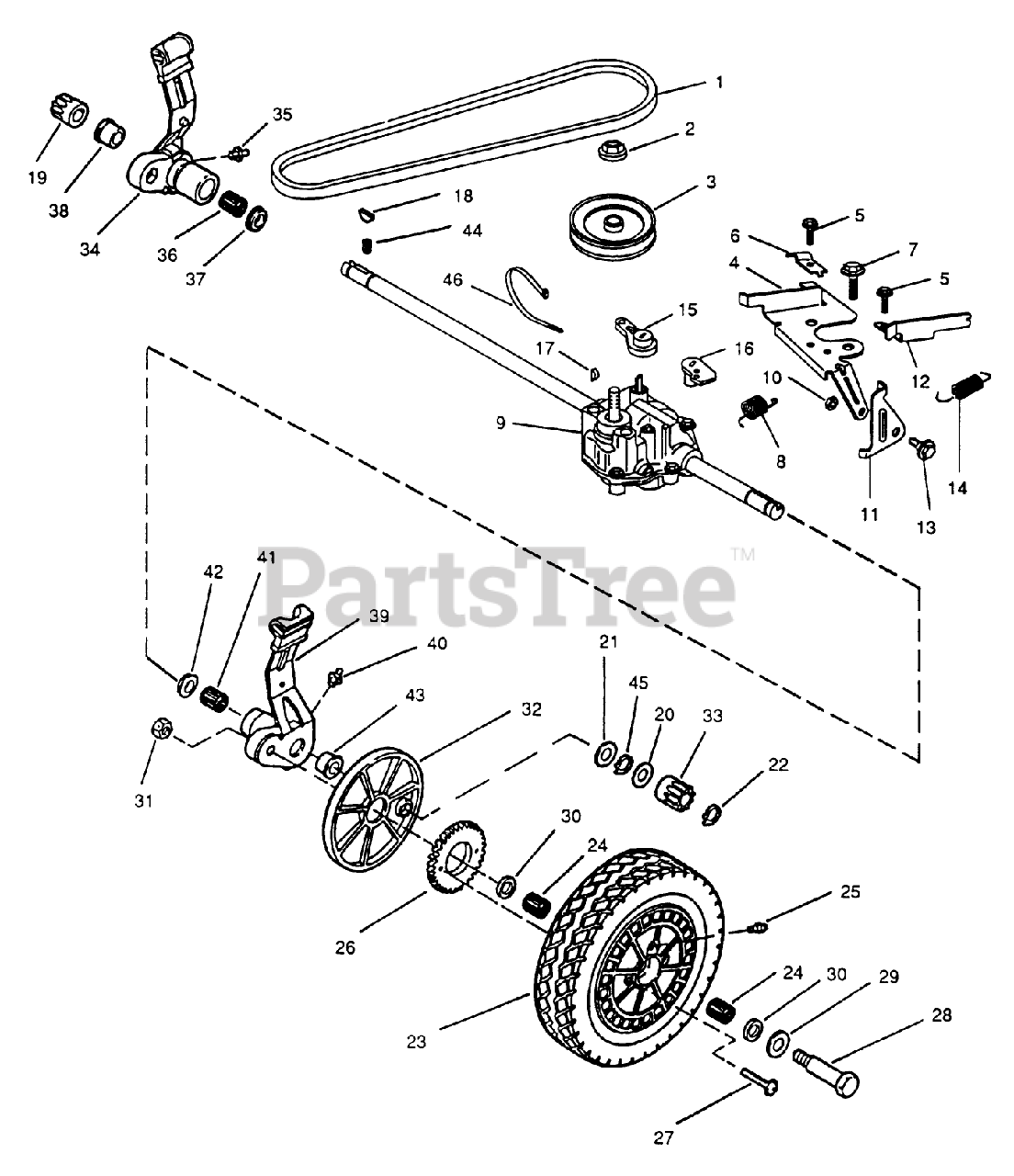

Drive Model: 680568 Parts Diagram

  • Title
1

Lawn-Boy 613830

DISCONTINUED

$

$

Not available

2

Lawn-Boy 613770

See Supercession: 95-1579
(Superseded to 95-1579)

$

$

Not available

3

Lawn-Boy 613445

PULLEY TRANS ADAMS

$108.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 614524

DISCONTINUED

$

$

Not available

5

Lawn-Boy 613387

DISCONTINUED

$

$

Not available

6

Lawn-Boy 613385

CLAMP-CABLE

$5.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 146134

DISCONTINUED

$

$

Not available

8

Lawn-Boy 614525

DISCONTINUED

$

$

Not available

9

Lawn-Boy 684129

TRANSMISSION ASSEM

$

$

Not available

10

Lawn-Boy 603773

LOCKNUT

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 614523

DISCONTINUED

$

$

Not available

12

Lawn-Boy 614526

DISCONTINUED

$

$

Not available

13

Lawn-Boy 614527

DISCONTINUED

$

$

Not available

14

Lawn-Boy 614529

DISCONTINUED

$

$

Not available

15

Lawn-Boy 614316

DISCONTINUED

$

$

Not available

16

Lawn-Boy 614317

ARM - CLUTCH

$

$

Not available

17

Lawn-Boy 611840

KEY GALGER

$

$

Not available

$2.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 613355

PINION(R)MET ALLEG

$20.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 608030

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 611878

WASHER-THRUST

$19.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 603147

RETAINING RING

$

$

Not available

23

Lawn-Boy 684575

DISCONTINUED

$

$

Not available

24

Lawn-Boy 608286

See Supercession: 117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

25

Lawn-Boy 611831

FITTING LINCOLN

$8.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 614266

DISCONTINUED

$

$

Not available

27

Lawn-Boy 614267

SCREW-TORX

$5.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 614139

BOLT WHEEL QUAL

$

$

Not available

29

$2.99

$

In Stock, Qty 20+

0

30

$1.99

$

In Stock, Qty 20+

0

31

Lawn-Boy 603773

LOCKNUT

$2.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 613869

COVER-WHEEL

$

$

Not available

33

Lawn-Boy 613356

PINION(L)MET ALLEG

$

$

Not available

34

Lawn-Boy 684482

DISCONTINUED

$

$

Not available

35

Lawn-Boy 603615

**FITTING LINCOLN

$

$

Not available

36

Lawn-Boy 608286

See Supercession: 117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

37

Lawn-Boy 611824

SEAL CR IND

$16.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 614029

See Supercession: 684525
(Superseded to 684525)

$

$

Not available

Lawn-Boy 684523

DISCONTINUED

$

$

Not available

39

Lawn-Boy 684483

DISCONTINUED

$

$

Not available

40

Lawn-Boy 603615

**FITTING LINCOLN

$

$

Not available

41

Lawn-Boy 608286

See Supercession: 117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

42

Lawn-Boy 611824

SEAL CR IND

$16.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 614029

See Supercession: 684525
(Superseded to 684525)

$

$

Not available

Lawn-Boy 684524

DISCONTINUED

$

$

Not available

44

$10.99

$

In Stock, only 1 left!

0

45

Lawn-Boy 607676

RET RING

$5.99

$

In Stock, Qty 6

0

46

Lawn-Boy 613911

DISCONTINUED

$

$

Not available
