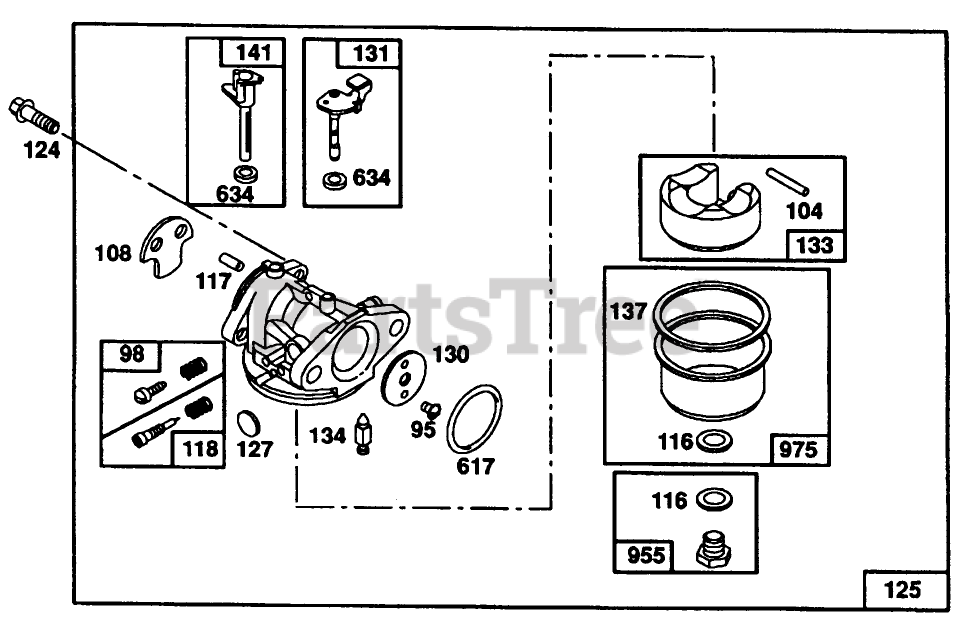

680548 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) B S Engine Parts (see Your B S Dealer) 4 Parts Diagram

Walk-Behind Mower

B S Engine Parts (see Your B S Dealer) 4 Parts Diagram

  • Title
95

Lawn-Boy 94098

Valve-Choke

$

$

Currently unavailable

98

Lawn-Boy 398185

Idle Speed Kit

$

$

Currently unavailable

104

Lawn-Boy 231371

See Supercession: 701979
(Superseded to 701979)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

108

Lawn-Boy 223471

Valve-Choke

$

$

Currently unavailable

116

?+Gasket (Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

117

?Jet (Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

118

Lawn-Boy 493765

Valve-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

124

Lawn-Boy 94525

Screw-Hex

$

$

Currently unavailable

125

Lawn-Boy 494217

Carburetor

$

$

Currently unavailable

127

?Plug-Welch (Kit Only)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

130

Lawn-Boy 223470

Valve-Throttle

$

$

Currently unavailable

131

Lawn-Boy 493267

Shaft and Lever

$

$

Currently unavailable

133

Lawn-Boy 398187

Float-Carburetor

$

$

Currently unavailable

134

Lawn-Boy 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

137

?+Gasket (Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

141

Lawn-Boy 494218

Shaft-Choke

$

$

Currently unavailable

617

Lawn-Boy 270344

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

634

?+Washer (Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

955

Lawn-Boy 493869

Screw-Bowl Mtg.

$

$

Currently unavailable

975

Lawn-Boy 493640

Bowl-Float

$

$

Currently unavailable
