680545 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) REAR GRASS CATCHER MODELS: 680545 Parts Diagram

Walk-Behind Mower

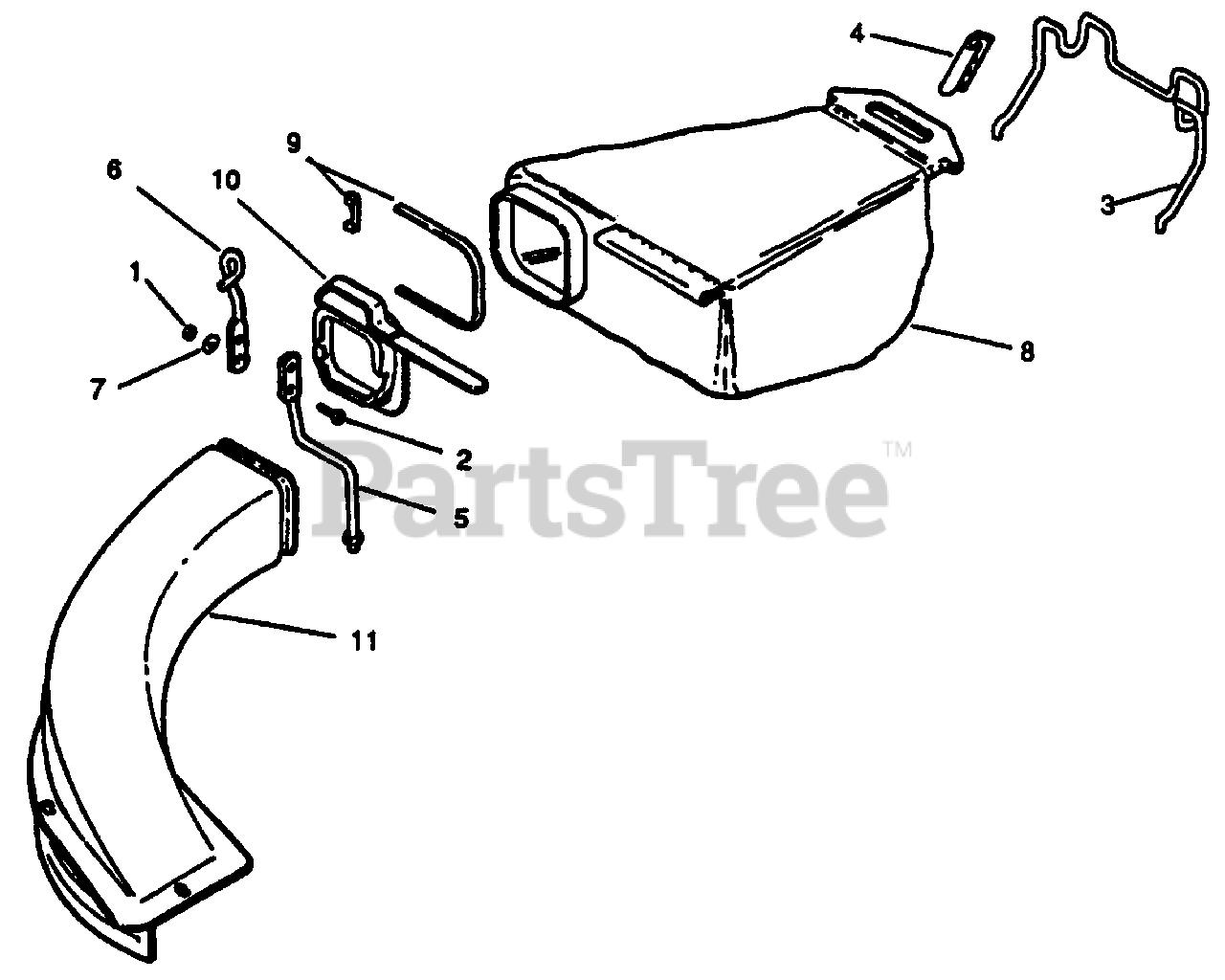

REAR GRASS CATCHER MODELS: 680545 Parts Diagram

  • Title

1

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement Parts may not be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

2

Lawn-Boy 609924

Screw

Note: Important Note: Replacement Parts may not be available in matching colors.

$

$

Not available

3

Lawn-Boy 613455

Wide Hanger

Note: Important Note: Replacement Parts may not be available in matching colors.

$62.99

$

In Stock, only 4 left!

0

4

Lawn-Boy 613462

Hanger Clamp
(Superseded to 613462-03)

Note: Important Note: Replacement Parts may not be available in matching colors.

$

$

Not available

5

Lawn-Boy 613464

Chute Support

Note: Important Note: Replacement Parts may not be available in matching colors.

$

$

Not available

6

Lawn-Boy 613465

Rope Guide

Note: Important Note: Replacement Parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 700324

Washer

Note: Important Note: Replacement Parts may not be available in matching colors.

$

$

Not available

8

Lawn-Boy 684168

Bag Assembly (Inc. 9)
(Superseded to 100-6362)

Note: Important Note: Replacement Parts may not be available in matching colors.

$159.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 684191

Strap & Lock Assembly
(Superseded to 92-1039)

Note: Important Note: Replacement Parts may not be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 684166

Adaptor Assembly
(Superseded to 684727-03)

Note: Important Note: Replacement Parts may not be available in matching colors.

$131.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 684305

Chute

Note: Important Note: Replacement Parts may not be available in matching colors.

$162.99

$

Usually ships in 3-6 days

0
