680545 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) HANDLE MODEL: 680545 Parts Diagram

Walk-Behind Mower

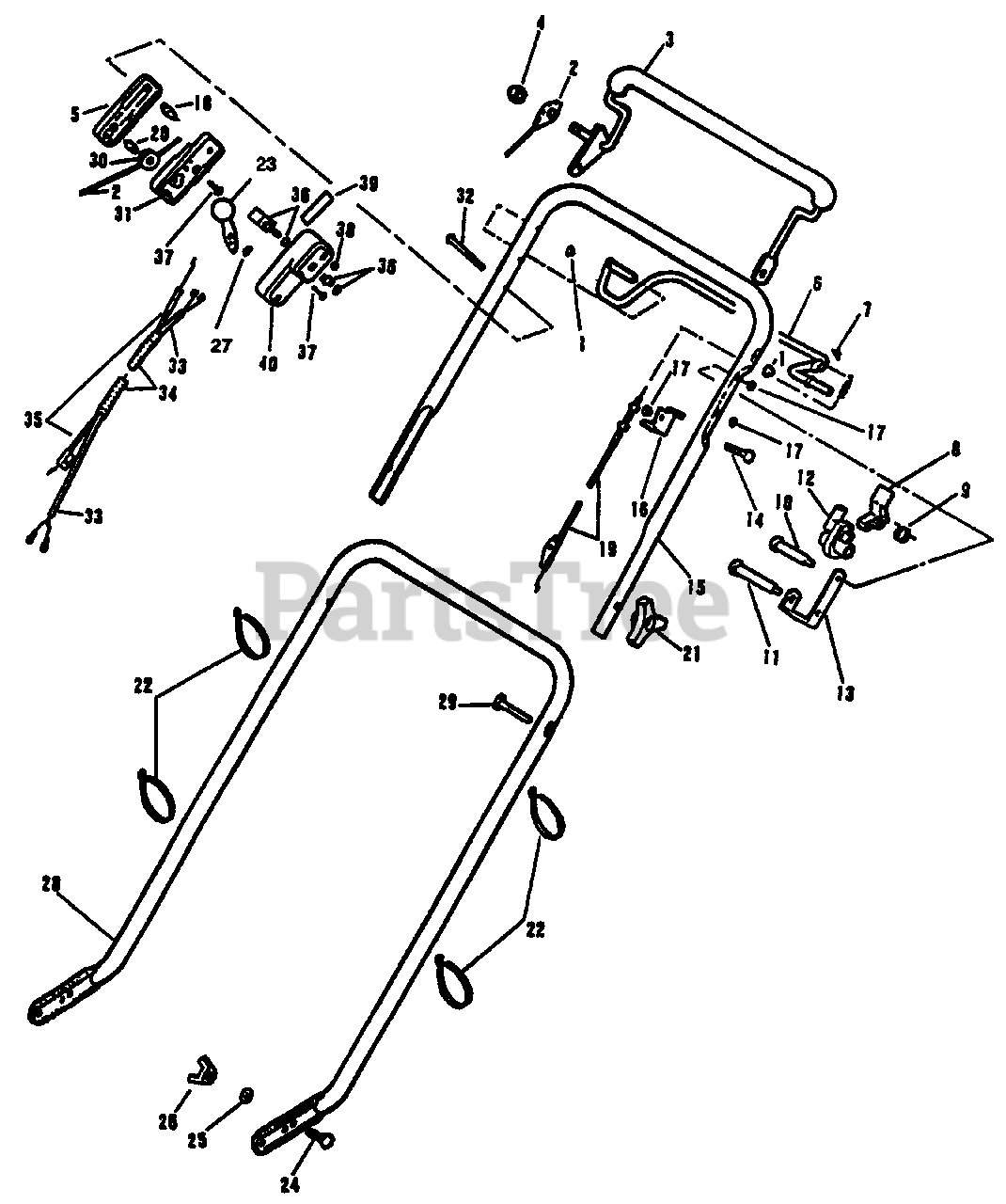

HANDLE MODEL: 680545 Parts Diagram

  • Title

1

Lawn-Boy 605546

Palnut
(Superseded to 32112-11)

Note: Important Note: Replacement pans may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

2

Lawn-Boy 683941

Control Cable Assembly

Note: Important Note: Replacement pans may not always be available in matching colors.

$170.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 153704

Control Lever Assembly
(Superseded to 683478)

Note: Important Note: Replacement pans may not always be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 612168

Acorn Nut

Note: Important Note: Replacement pans may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 611777

Control Case-Outer

Note: Important Note: Replacement pans may not always be available in matching colors.

$32.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 684313

Control Lever-Bail

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 609975

Palnut

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 154793

Stop-Latch Lever

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Currently unavailable

9

Lawn-Boy 145946

Spring-Torsion

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 611795

Bolt-Shoulder

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 613050

Bolt-Shoulder

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 146085

Cam

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 611791

Bracket

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 610096

Screw

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 613053

Handle-Top

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 146084

Conduit Anchor

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 602315

Nut

Note: Important Note: Replacement pans may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 611541

Column

Note: Important Note: Replacement pans may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 153730

Control Cable Assembly

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 611542

Pin-Pulley

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 614243

Handle Knob
(Superseded to 98-7134)

Note: Important Note: Replacement pans may not always be available in matching colors.

$2.99

$

In Stock, Qty 15

0

22

Lawn-Boy 614249

Tie Strap

Note: Important Note: Replacement pans may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

23

Lawn-Boy 683663

Lever & Knob Assembly

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 800358

Bolt
(Superseded to 3230-22)

Note: Important Note: Replacement pans may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

25

Lawn-Boy 146258

Washer
(Superseded to 3253-4)

Note: Important Note: Replacement pans may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 145577

Wing Nut

Note: Important Note: Replacement pans may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 612586

Washer

Note: Important Note: Replacement pans may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

28

Lawn-Boy 613048

Handle-Lower
(Superseded to 92-2920-05)

Note: Important Note: Replacement pans may not always be available in matching colors.

$131.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 145498

Screw
(Superseded to 614697)

Note: Important Note: Replacement pans may not always be available in matching colors.

$2.49

$

In Stock, Qty 13

0

30

Lawn-Boy 612564

Pulley

Note: Important Note: Replacement pans may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 612633

Throttle Case-Center

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 611799

Screw

Note: Important Note: Replacement pans may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 683936

Wire Harness Assembly

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 611424

Spiral Tubing

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 612567

Throttle Cable

Note: Important Note: Replacement pans may not always be available in matching colors.

$83.99

$

In Stock, only 2 left!

0

36

Lawn-Boy 683847

Switch Assembly

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 611543

Screw

Note: Important Note: Replacement pans may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

38

Lawn-Boy 611258

Nut

Note: Important Note: Replacement pans may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

39

Lawn-Boy 612698

Decal-Throttle Control

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 612863

Throttle Case-Inner

Note: Important Note: Replacement pans may not always be available in matching colors.

$

$

Not available
