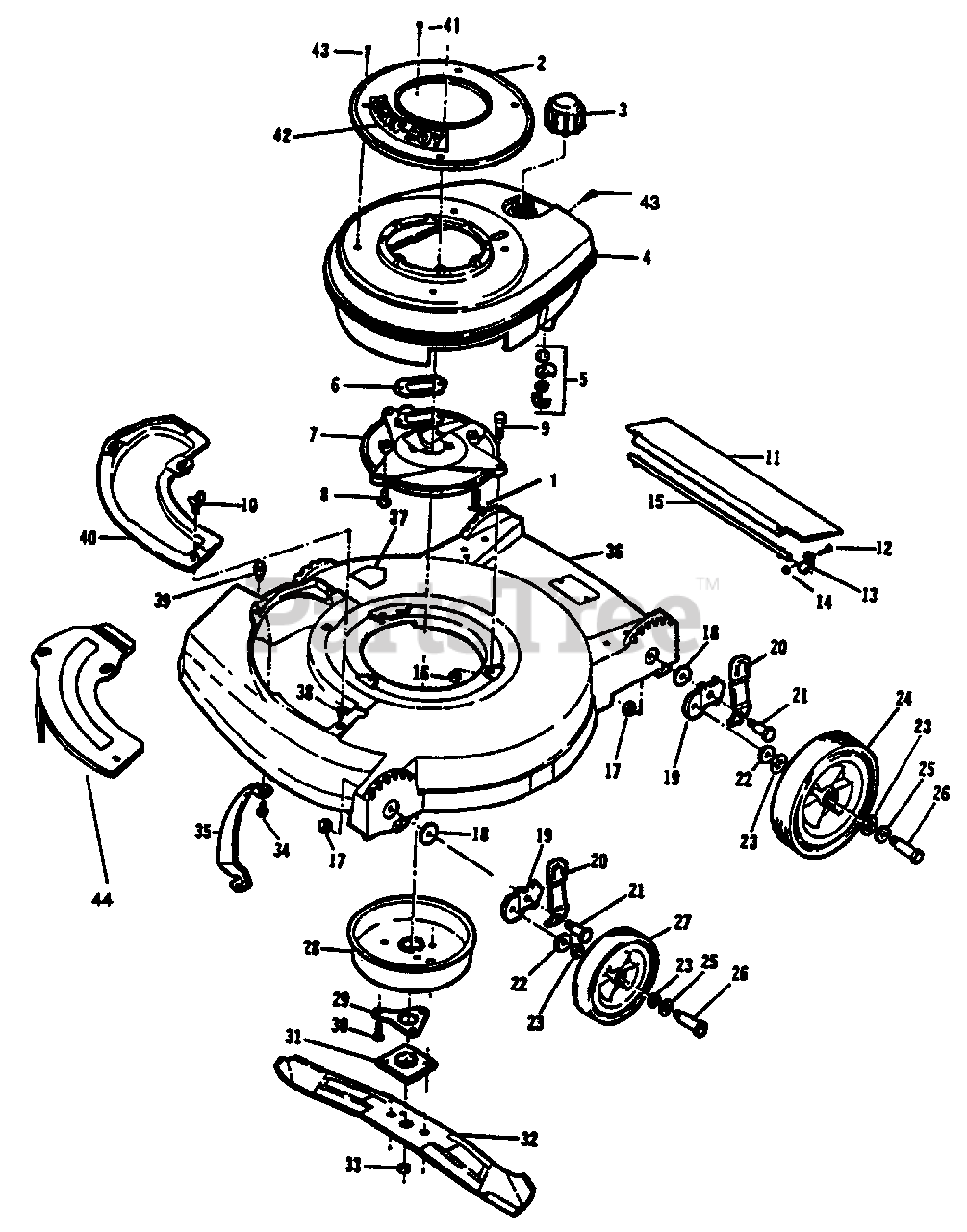

680542 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) HOUSING AND SHROUD MODEL: 680542 Parts Diagram

Walk-Behind Mower

HOUSING AND SHROUD MODEL: 680542 Parts Diagram

  • Title

1

Lawn-Boy 613500

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 684570

Starter Base

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Replacement parts may not always be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

Lawn-Boy 607213

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 609150

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 11

0

4

Lawn-Boy 684630

Shroud-Engine (Inc. 5)
(Superseded to 16-5539)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 681818

Fuel Shut on Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 5

0

7

Lawn-Boy 611802

Plate-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$243.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 607601

Screw-Muffler Pit. to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 611774

Screw-Muffler Pit. to Hsg.

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 606733

Wing Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.99

$

In Stock, Qty 6

0

11

Lawn-Boy 611014

Shield-Trailing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 609891

Screw-Trailing Shield
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 608161

Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

15

Lawn-Boy 608160

Rod-Trailing Shied

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 608311

Nut-Muffler Pit. to Hsg.

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 603773

Nut-Wheel Ht. Adjust

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 608834

Washer-Wheel Ht. Adjust

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 608833

Bracket-Wheel Ht. Adjust
(Superseded to 608833-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 153444

Knob & Spring Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 603620

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 682974

Wheel-Rear
(Superseded to 131-4520)

Note: Important Note: Replacement parts may not always be available in matching colors.

$33.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 605256

Washer-Wheel Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 603441

Bolt-Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 678636

Wheel-Front

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 682876

Muffler Cover Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$143.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 609786

Support-Crankshaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$20.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 609471

Screw-Muff. to Muff. Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

31

Lawn-Boy 677525

Collar & Plate Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 682909

Blade 19"
(Superseded to 612079-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 603164

Nut
(Superseded to 121-3611)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

35

Lawn-Boy 608159

Toe Bar

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 684521

Housing Assembly (Inc. 37-38)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 6

0

38

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 13

0

39

Lawn-Boy 607809

Screw-Plate Mounting
(Superseded to 614677)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 16

0

40

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

Note: Important Note: Replacement parts may not always be available in matching colors.

$30.99

$

In Stock, only 1 left!

0

41

Lawn-Boy 612428

Screw-Starter Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

42

Lawn-Boy 614265

Applique

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 611395

Screw-Shroud
(Superseded to 611543)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 6

0

Lawn-Boy 146014

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 146015

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

44

Lawn-Boy 684712

Mulch Plate Accessory

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable
