680542 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) HANDLE MODEL: 680542 Parts Diagram

Walk-Behind Mower

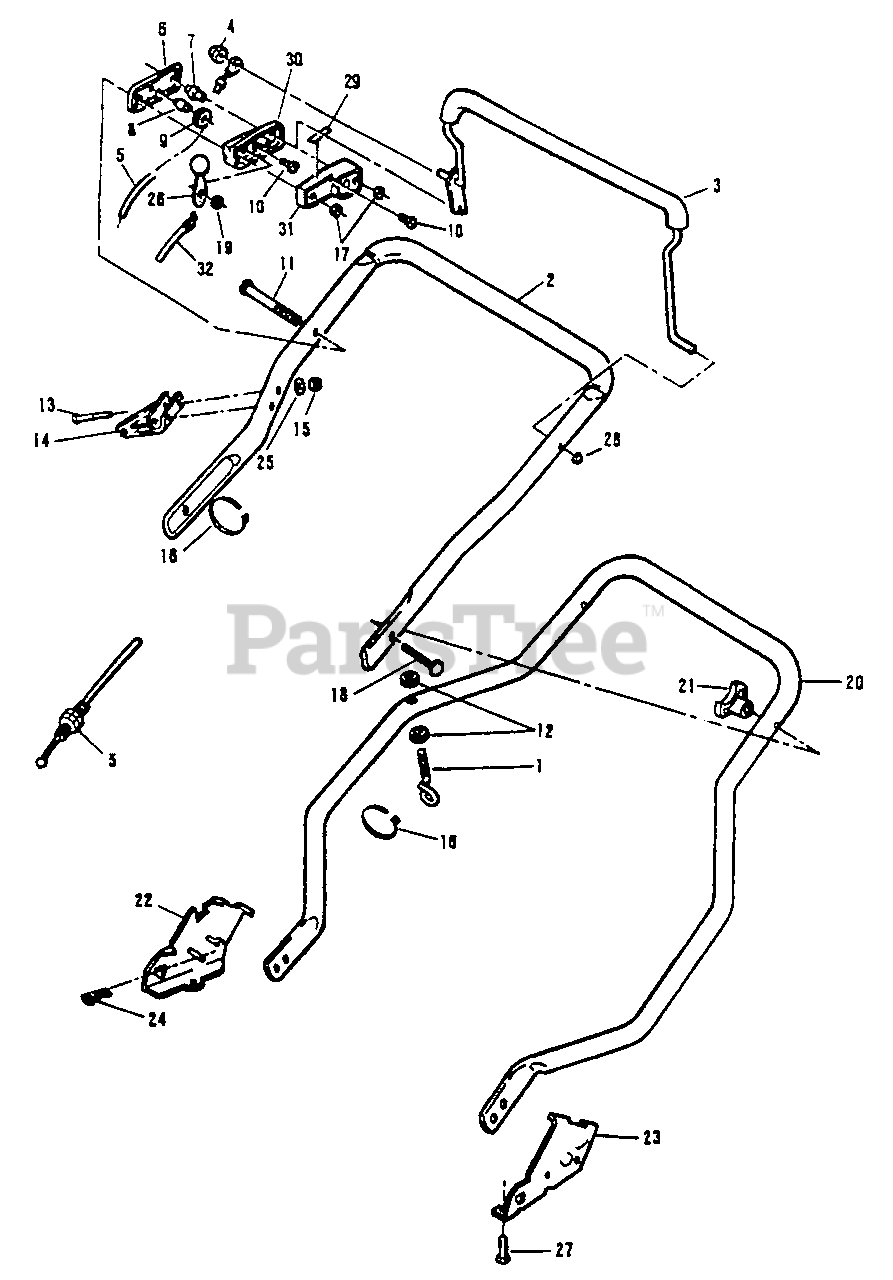

HANDLE MODEL: 680542 Parts Diagram

  • Title

1

Lawn-Boy 611571

Eye Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 612683

Top Handle & Grip Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 683478

Control Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 612168

Nut-Acorn

Note: Important Note: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 683041

Control Cable Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 611777

Control Case Outer

Note: Important Note: Replacement parts may not always be available in matching colors.

$32.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 611541

Column

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611542

Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 612564

Pulley

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611543

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

11

Lawn-Boy 611799

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 602315

Lock Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 611233

Screw-Truss Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 153254

Rope Guide Assembly
(Superseded to 682684)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 614249

Tie Strap

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

17

Lawn-Boy 611258

Nut-Hex-Centerlock

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 145498

Screw-Folding Handle
(Superseded to 614697)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 13

0

19

Lawn-Boy 612586

Washer-Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

20

Lawn-Boy 613363

Handle-Bottom

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 614243

Knob-Folding Handle
(Superseded to 98-7134)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 15

0

22

Lawn-Boy 683926

Bracket-Handle-R.H.
(Superseded to 683926-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 683925

Bracket-Handle-L.H.
(Superseded to 683925-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 605803

Hair Pin-Handle Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 602945

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 683663

Lever & Knob Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 607188

Screw-Handle Bracket to Hsg

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

28

Lawn-Boy 605546

Nut-Push
(Superseded to 32112-11)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

29

Lawn-Boy 612698

Decal-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 612633

Case-Throttle-Center

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 612634

Case-Throttle-Inner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 612588

Throttle Cable

Note: Important Note: Replacement parts may not always be available in matching colors.

$60.99

$

In Stock, only 2 left!

0
