Lawn-Boy 680539 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) DRIVE MODEL: 680539 Parts Lookup with Diagrams

Lawn-Boy 684488

Transmission Assy (Inc. 1-29)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

1

Lawn-Boy 613023

Tensioner Bracket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

2

Lawn-Boy 611835

O-Ring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, only 1 left!

3

Lawn-Boy 609892

Hex Hd. Cap Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

4

Lawn-Boy 611828

Gearcase-Upper

(Superseded to 683624) 

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

5

Lawn-Boy 146093

Plug

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

6

Lawn-Boy 611830

Packing

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

7

Lawn-Boy 683186

Bearing & Seal-Gearcase

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

8

Lawn-Boy 608030

Thrust Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

9

Lawn-Boy 381791

Thrust Bearing

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

10

Lawn-Boy 611878

Thrust Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

11

Lawn-Boy 611822

Thrust Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

12

Lawn-Boy 607676

Retaining Ring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

13

Lawn-Boy 611814

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

14

Lawn-Boy 613022

Driveshaft

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

15

Lawn-Boy 611815

Driven Sleeve

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

16

Lawn-Boy 611821

Driver

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

17

Lawn-Boy 611827

Gasket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

18

Lawn-Boy 683187

Bearing

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

19

Lawn-Boy 683343

Worm Wheel & Shaft (Inc. 20)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

20

Lawn-Boy 613454

Worm Wheel

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$188.99

$

Usually ships in 3-6 days

21

Lawn-Boy 612406

Gearcase-Lower

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

22

Lawn-Boy 602315

Nut, Lock

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

23

Lawn-Boy 684684

Collar, Brg & Disc Kit (Inc. 24-29)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

24

Lawn-Boy 613245

Shift Fork

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

25

Lawn-Boy 612428

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

26

Disc Plate Kit

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

27

Collar

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

28

Thrust Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

29

Bearing

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

30

Lawn-Boy 700029

Set Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

31

Lawn-Boy 614180

Pulley-Engine

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

32

Lawn-Boy 684194

Bracket & Idler Assy (Inc. 33-35)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

33

Lawn-Boy 612371

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

34

Lawn-Boy 607978

Pulley-Idler

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$27.99

$

Usually ships in 3-6 days

35

Lawn-Boy 610358

Nut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 12

36

Lawn-Boy 603773

Nut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

37

Lawn-Boy 611839

Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

38

Lawn-Boy 611838

Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

39

Lawn-Boy 611836

Pulley-Upper Half

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

40

Lawn-Boy 613368

V-Belt

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$54.99

$

Usually ships in 3-6 days

41

Lawn-Boy 611837

Pulley-Lower Half

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

42

Lawn-Boy 612994

Extension Spring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

43

Lawn-Boy 613043

Conduit Anchor Bracket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

44

Lawn-Boy 145929

Spacer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

45

Lawn-Boy 145926

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

46

Lawn-Boy 609005

Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

47

Lawn-Boy 145935

Extension Spring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

48

Lawn-Boy 153635

Shift Arm & Hub Assembly

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

49

Lawn-Boy 145928

Spacer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

50

Lawn-Boy 608311

Nut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

51

Lawn-Boy 145875

Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

52

Lawn-Boy 610404

Screw

(Superseded to 146209) 

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

53

Lawn-Boy 800358

Square Neck Bolt

(Superseded to 3230-22) 

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

54

Lawn-Boy 611224

Retaining Ring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

55

Lawn-Boy 611840

Key

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

56

Lawn-Boy 611834

Seal Guide

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

57

Lawn-Boy 602315

Nut-Lock

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

58

Lawn-Boy 607676

Retaining Ring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

59

Lawn-Boy 608030

Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

60

Lawn-Boy 612064

Pinion

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$29.99

$

Usually ships in 3-6 days

61

Lawn-Boy 612066

key

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

62

Lawn-Boy 612067

Spring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

63

Lawn-Boy 612068

Spacer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$18.99

$

Usually ships in 3-6 days

64

Lawn-Boy 146015

Washer-Shim

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

65

Lawn-Boy 603441

Wheel Bolt

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 16

66

Lawn-Boy 605255

Felt Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

67

Lawn-Boy 605256

Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

68

Lawn-Boy 613512

Wheel Cover

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

69

Lawn-Boy 614413

Felt Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

70

Lawn-Boy 683626

Wheel Assay (Inc. 71-72)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

71

Lawn-Boy 611831

Lube Fitting

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

72

Lawn-Boy 145439

Bushing

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

Not available 

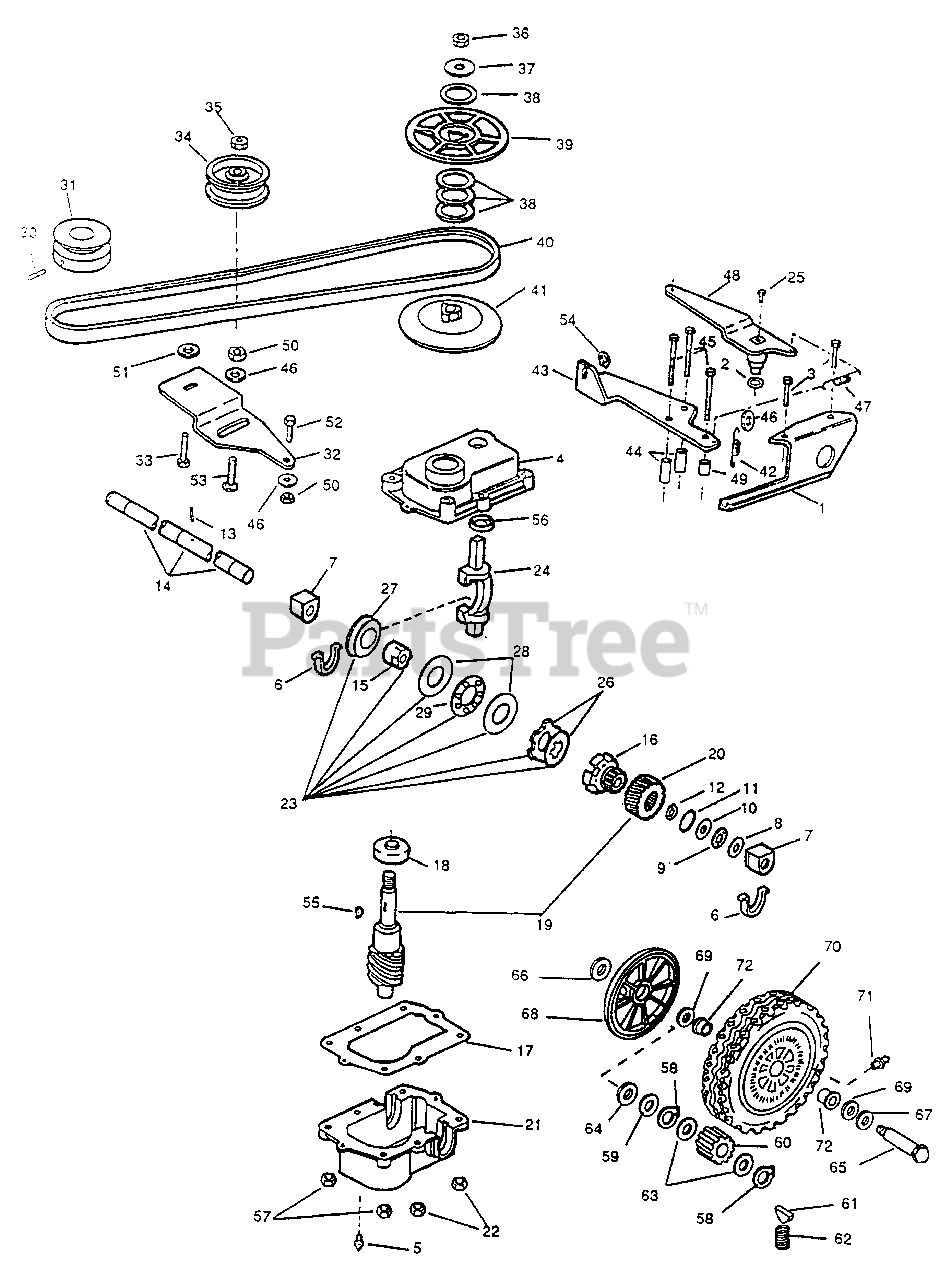

680539 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) DRIVE MODEL: 680539 Parts Diagram
