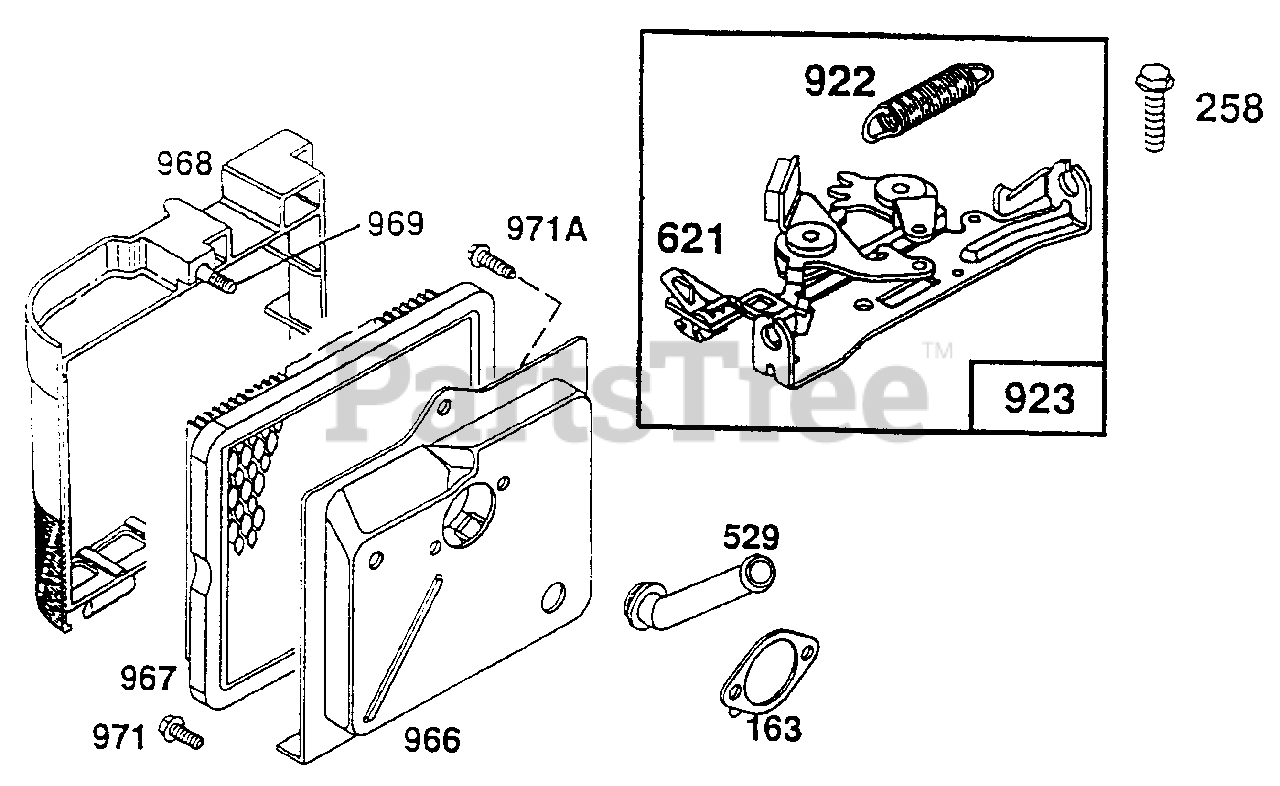

680539 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) B & S ENGINE MODELS: 680539 Parts Diagram

Walk-Behind Mower

B & S ENGINE MODELS: 680539 Parts Diagram

  • Title
163

Lawn-Boy 272296

Gasket-Air Cleaner

Note: Included in Gasket Set-Part No. 493263.

$

$

Currently unavailable

258

Lawn-Boy 94512

Screw-Hex. Head

$

$

Currently unavailable

529

Lawn-Boy 280943

Grommet-Breather

$

$

Currently unavailable

621

Lawn-Boy 396847

Switch-Stop

$

$

Currently unavailable

922

Lawn-Boy 262640

Spring-Brake

$

$

Currently unavailable

923

Lawn-Boy 492918

Brake Ass'y

$

$

Currently unavailable

966

Lawn-Boy 492363

Base-Air Cleaner

$

$

Currently unavailable

967

Lawn-Boy 491588

Filter-Air

$

$

Currently unavailable

968

Lawn-Boy 281069

Cover-Air Cleaner

$

$

Currently unavailable

969

Lawn-Boy 94120

Screw-Cover Mtg.

$

$

Currently unavailable

971

Lawn-Boy 94269

Screw-Air Cleaner

$

$

Currently unavailable

971A

Lawn-Boy 94121

Screw-Base to Carb

$

$

Currently unavailable
