680539 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) B & S ENGINE MODELS: 680539 Parts Diagram

Walk-Behind Mower

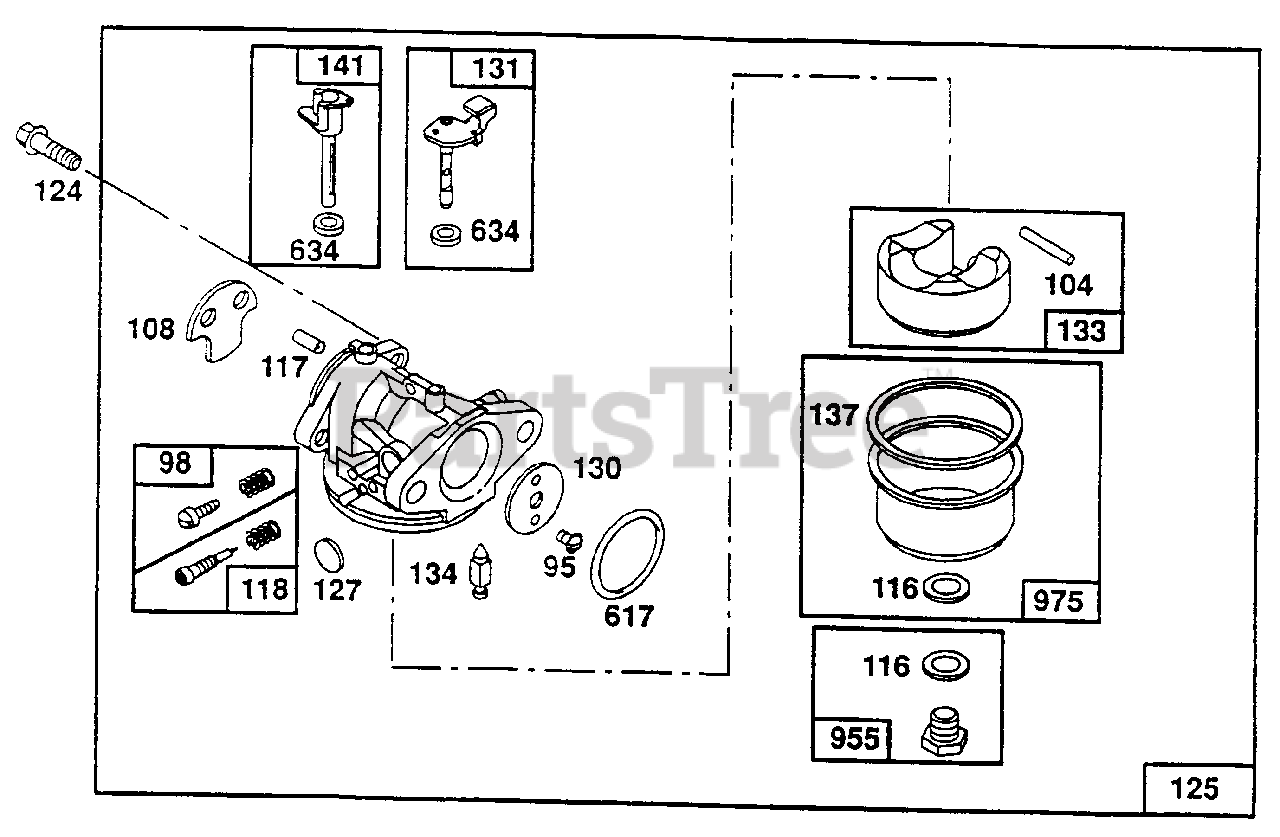

B & S ENGINE MODELS: 680539 Parts Diagram

  • Title

95

Lawn-Boy 94098

Screw-Throttle Valve

$

$

Currently unavailable

98

Lawn-Boy 398185

Screw-ldle Adjust

$

$

Currently unavailable

104

Lawn-Boy 231371

Pin-Float Hinge
(Superseded to 701979)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

108

Lawn-Boy 223471

Valve-Choke

$

$

Currently unavailable

116

+ Gasket (Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

117

Jet (Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

118

Lawn-Boy 493765

Valve & Spring

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

124

Lawn-Boy 94525

Screw-Carb Mtg.

$

$

Currently unavailable

125

Lawn-Boy 494217

Carburetor Ass'y

$

$

Currently unavailable

127

Plug-Welch(Kit Only)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

130

Lawn-Boy 223470

Valve-Throttle

$

$

Currently unavailable

131

Lawn-Boy 493267

Shaft & Lever

$

$

Currently unavailable

133

Lawn-Boy 398187

Float Assy.-Carb

$

$

Currently unavailable

134

Lawn-Boy 398188

Valve-Inlet(Inc. Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

137

+ Gasket (Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

141

Lawn-Boy 494218

Shaft-Choke

$

$

Currently unavailable

617

Lawn-Boy 270344

+ Seal-Intake Tube

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

634

+ Washer (Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

955

Lawn-Boy 493869

Screw-Bowl Mtg.

$

$

Currently unavailable

975

Lawn-Boy 493640

Bowl Assembly-Carb

$

$

Currently unavailable
