680538 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) B & S ENGINE MODELS: 680538 Parts Diagram

Walk-Behind Mower

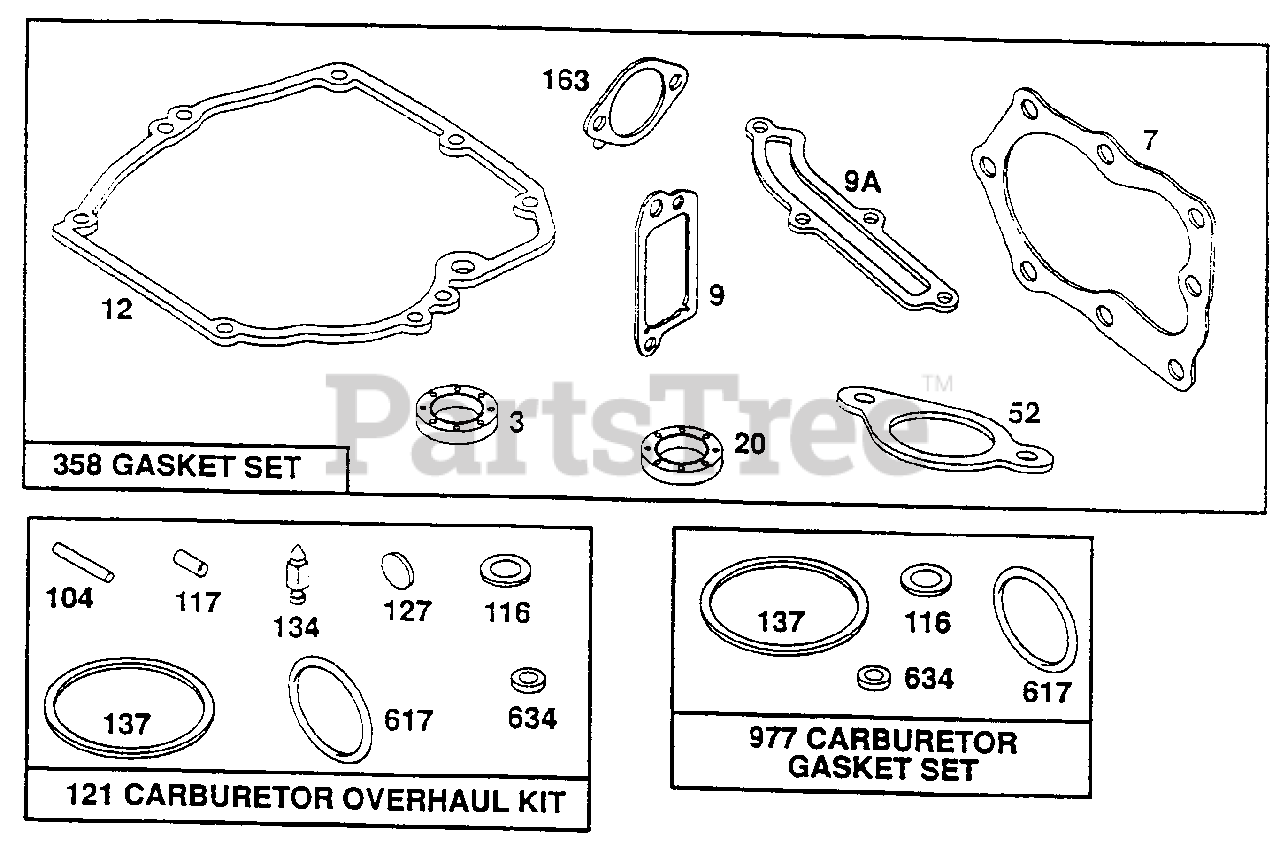

B & S ENGINE MODELS: 680538 Parts Diagram

  • Title

3

Lawn-Boy 299819

Seal-Oil

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

7

Lawn-Boy 272200

Gasket-Cylinder Hd.

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

9

Lawn-Boy 271904

Gasket-Valve Cover

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

9A

Lawn-Boy 272238

Gasket-Baffle Plate

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

12

Lawn-Boy 272198

Gasket-Crankcase

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

20

Lawn-Boy 399781

Seal-Oil

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

52

Lawn-Boy 272199

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

91

Lawn-Boy 684720

Height Adj. Ass'y L.H. (Inc. 89-90)(Self Propelled)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

104

Lawn-Boy 231371

Pin-Float Hinge
(Superseded to 701979)

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

116

+ Gasket (Kit Only)

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

117

Jet (Kit Only)

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

121

Lawn-Boy 493762

Carb Overhaul Kit

$

$

Currently unavailable

127

Plug-Welch(Kit Only)

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

134

Lawn-Boy 398188

Valve-Inlet(Inc. Seat)

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

137

+ Gasket (Kit Only)

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

163

Lawn-Boy 272296

Gasket-Air Cleaner

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

358

Lawn-Boy 493263

Gasket Set

$

$

Currently unavailable

617

Lawn-Boy 270344

+ Seal-Intake Tube

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

634

+ Washer (Kit Only)

Note: Included in Gasket Set-Part No. 493263. Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

977

Lawn-Boy 490937

Gasket Set-Carb

$

$

Currently unavailable
