680538 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) B & S ENGINE MODELS: 680538 Parts Diagram

Walk-Behind Mower

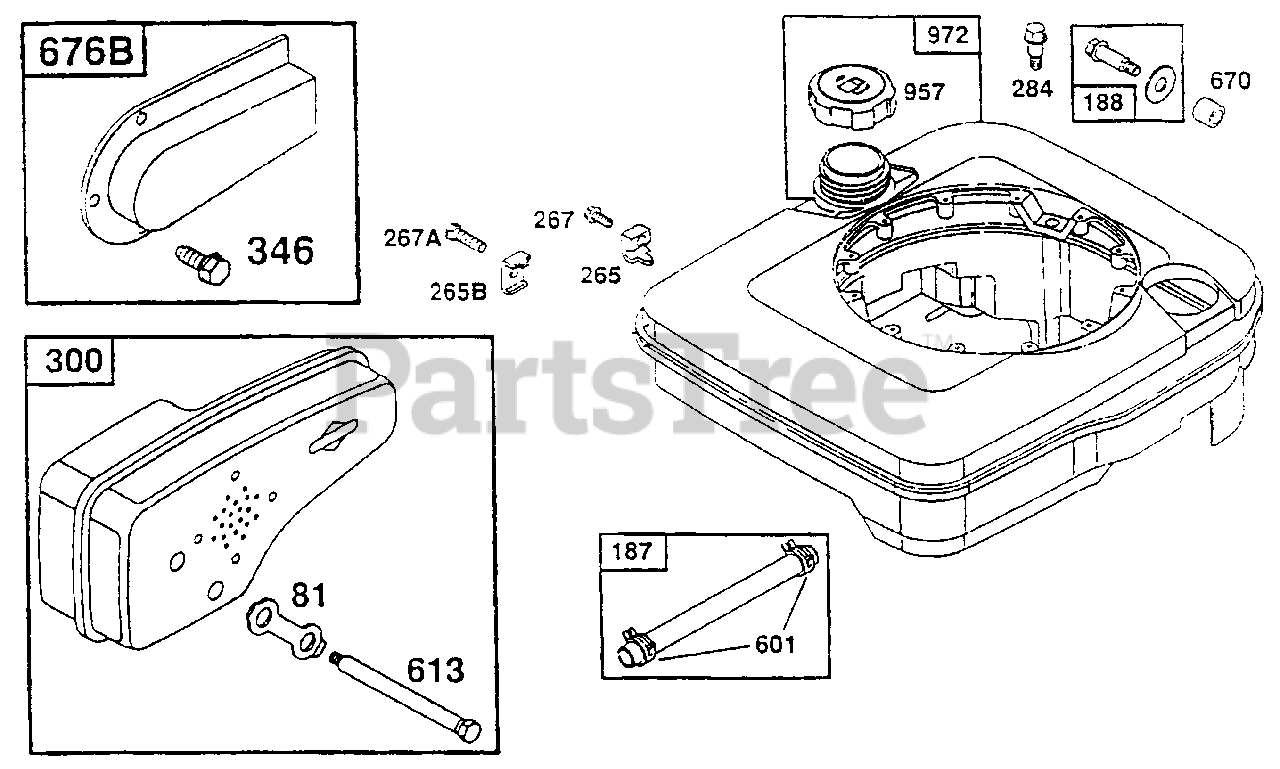

B & S ENGINE MODELS: 680538 Parts Diagram

  • Title

81

Lawn-Boy 223664

Lock-Muffler Screw

$

$

Currently unavailable

91

Lawn-Boy 684720

Height Adj. Ass'y L.H. (Inc. 89-90)(Self Propelled)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

187

Lawn-Boy 492790

Hose-Fuel

$

$

Currently unavailable

188

Lawn-Boy 398540

Screw-Tank Mtg.

$

$

Currently unavailable

265

Lawn-Boy 213146

Clamp-Casing

$

$

Currently unavailable

265B

Lawn-Boy 221535

Clamp-Casing

$

$

Currently unavailable

267

Lawn-Boy 94204

Screw-Clamp Mtg.

$

$

Currently unavailable

267A

Lawn-Boy 93469

Screw-Clamp Mtg.

$

$

Currently unavailable

284

Lawn-Boy 94511

Screw-Hex. Hd.

$

$

Currently unavailable

300

Lawn-Boy 490547

Muffler-Exhaust

$

$

Currently unavailable

346

Lawn-Boy 93705

Screw-Hex Head

$

$

Currently unavailable

601

Lawn-Boy 93053

Clamp-Hose

$

$

Currently unavailable

613

Lawn-Boy 94231

Screw-Muffler Mtg.

$

$

Currently unavailable

670

Lawn-Boy 280512

Spacer-Fuel Tank

$

$

Currently unavailable

676B

Lawn-Boy 493871

Deflector-Muffler

$

$

Currently unavailable

957

Lawn-Boy 397974

Cap Ass'y-Fuel

$

$

Currently unavailable

972

Lawn-Boy 494560

Tank Ass'y-Fuel

$

$

Currently unavailable
