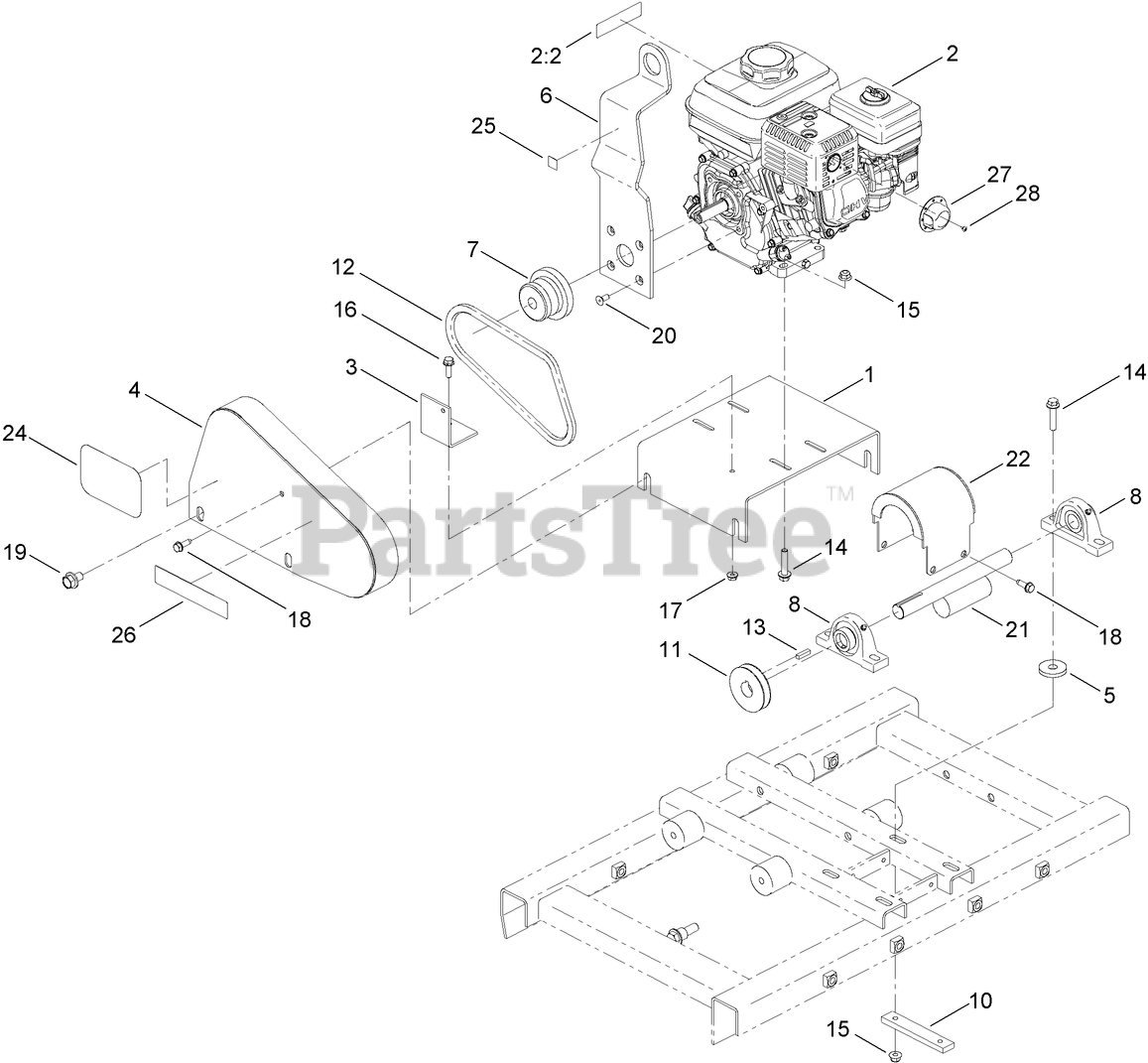

68053 (VS-800) - Toro Screed (SN: 313000001 - 313999999) (2013) ENGINE, BELT AND ECCENTRIC ASSEMBLY Parts Diagram

Screed

ENGINE, BELT AND ECCENTRIC ASSEMBLY Parts Diagram

  • Title

1

Toro 125-8715-03

BASE-MOTOR, SCREED

$

$

Currently unavailable

2

Toro 127-2824

ENGINE-HONDA, GX160

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2:2

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

3

Toro ST29310-03

BRACKET-GUARD, BELT

$20.99

$

Usually ships in 3-6 days

0

4

Toro ST26445-01

GUARD-BELT

$113.99

$

Usually ships in 3-6 days

0

5

Toro ST26326

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

6

Toro ST28318-03

PLATE-EYE, LIFT

$150.99

$

Usually ships in 3-6 days

0

7

Toro ST34627

CLUTCH

$317.99

$

Usually ships in 3-6 days

0

8

Toro ST32208

BEARING-BLOCK, PILLOW

$158.99

$

Usually ships in 3-6 days

0

10

Toro ST26640-03

NUT-PLATE

$

$

Currently unavailable

11

Toro ST34633

SHEAVE

$110.99

$

Usually ships in 3-6 days

0

12

Toro ST34617

BELT-V

$11.99

$

Usually ships in 3-6 days

0

13

Toro 5-7280

KEY

$5.49

$

In Stock, only 1 left!

0

14

Toro 3234-19

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 3234-17

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

17

Toro 32128-26

NUT-FLANGE

$6.49

$

Usually ships in 3-6 days

0

18

Toro 701243

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 98-7993

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

20

Toro ST80171

SCREW

$3.99

$

Usually ships in 3-6 days

0

21

Toro ST26442-03

ECCENTRIC

$127.99

$

Usually ships in 3-6 days

0

22

Toro ST26448-03

GUARD-ECCENTRIC

$106.99

$

Usually ships in 3-6 days

0

24

Toro 104-3989

DECAL

$60.99

$

In Stock, only 4 left!

0

25

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

26

Toro 125-8202

DECAL-VS-800

$

$

Currently unavailable

27

Toro 125-3866

DEFLECTOR

$43.99

$

Usually ships in 3-6 days

0

28

Toro 120-1884

SCREW-PPHTF

$1.49

$

Usually ships in 3-6 days

0
