680528 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) HOUSING AND SHROUD MODEL: 680528 Parts Diagram

Walk-Behind Mower

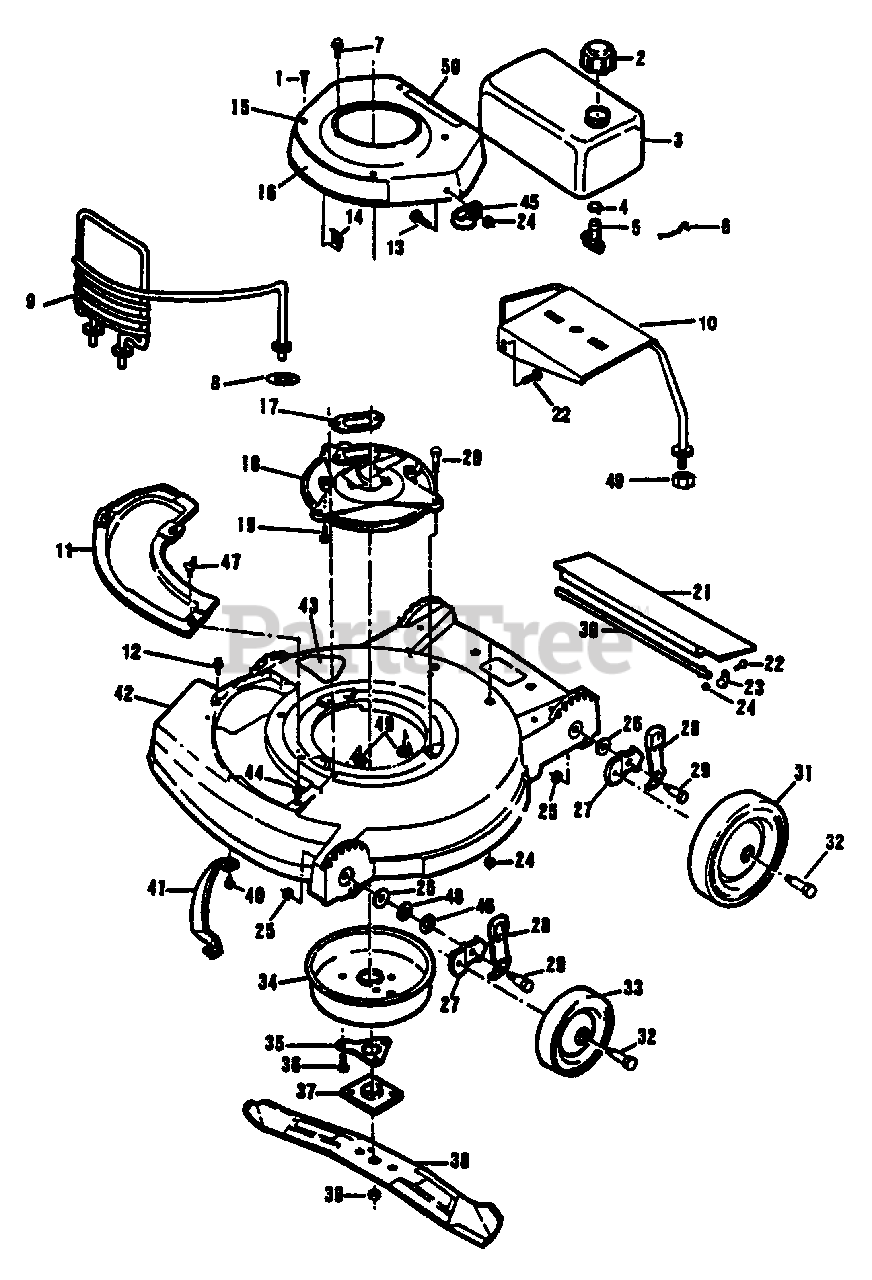

HOUSING AND SHROUD MODEL: 680528 Parts Diagram

  • Title

1

Lawn-Boy 611395

Screw-Shroud to Base
(Superseded to 611543)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 6

0

2

Lawn-Boy 682755

Fuel Cap Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

Lawn-Boy 609150

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 11

0

Lawn-Boy 607213

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 609829

Fuel Tank
(Superseded to 145476)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 312387

Clamp-Valve to Tank

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 8

0

5

Lawn-Boy 677052

Shut-Off Valve & Screen

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 609830

Spring-Fuel Tank Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 6

0

7

Lawn-Boy 612428

Screw-Starter

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

8

Lawn-Boy 145815

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

9

Lawn-Boy 684649

Engine Guard
(Superseded to 94-1618)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 684583

Fuel Tank Bracket
(Superseded to 684583-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

Note: Important Note: Replacement parts may not always be available in matching colors.

$30.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 607809

Screw-SEMS-Cover Plate
(Superseded to 614677)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 16

0

13

Lawn-Boy 608418

Screw-Clamp to Shroud
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

14

Lawn-Boy 145945

Retainer-Applique

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 683638

Shroud

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 612754

Applique

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 5

0

18

Lawn-Boy 611802

Muffler Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$243.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 607601

Screw-Muffler Plate to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 611774

Screw-Muffler Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 611016

Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$95.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 609891

Screw
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 608161

Clamp-Shield Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

25

Lawn-Boy 603773

Locknut-Wheel Brkt. to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 608834

Washer-Wheel Brkt. to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 608833

Wheel Height Adjust Bracket
(Superseded to 608833-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

28

Lawn-Boy 153444

Height Adjust Knob & Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 610646

Shoulder Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 608174

Trailing Shield Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 683464

Rear Wheel-8"

Note: Important Note: Replacement parts may not always be available in matching colors.

$79.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 603567

Wheel Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$13.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 684159

Front Wheel-6"

Note: Important Note: Replacement parts may not always be available in matching colors.

$68.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 682876

Muffler Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$143.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 609786

Crankshaft Support Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$20.99

$

In Stock, only 2 left!

0

36

Lawn-Boy 609471

Screw-Plate to Muffler Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

37

Lawn-Boy 677525

Collar and Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 1 left!

0

38

Lawn-Boy 683682

21" Blade
(Superseded to 612543-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$29.99

$

In Stock, only 3 left!

0

39

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 608418

Screw-Toe Bar To Housing
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

41

Lawn-Boy 608175

Toe Bar

Note: Important Note: Replacement parts may not always be available in matching colors.

$75.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 684658

Housing Assembly (Inc. 43-44)
(Superseded to 684555)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1190.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 6

0

44

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 13

0

45

Lawn-Boy 611504

Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 146015

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

47

Lawn-Boy 606733

Wing Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.99

$

In Stock, Qty 6

0

48

Lawn-Boy 146014

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 608311

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 612753

Decal-Fuel Mixture

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
