680527 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) ENGINE MODELS: 680527 Parts Diagram

Walk-Behind Mower

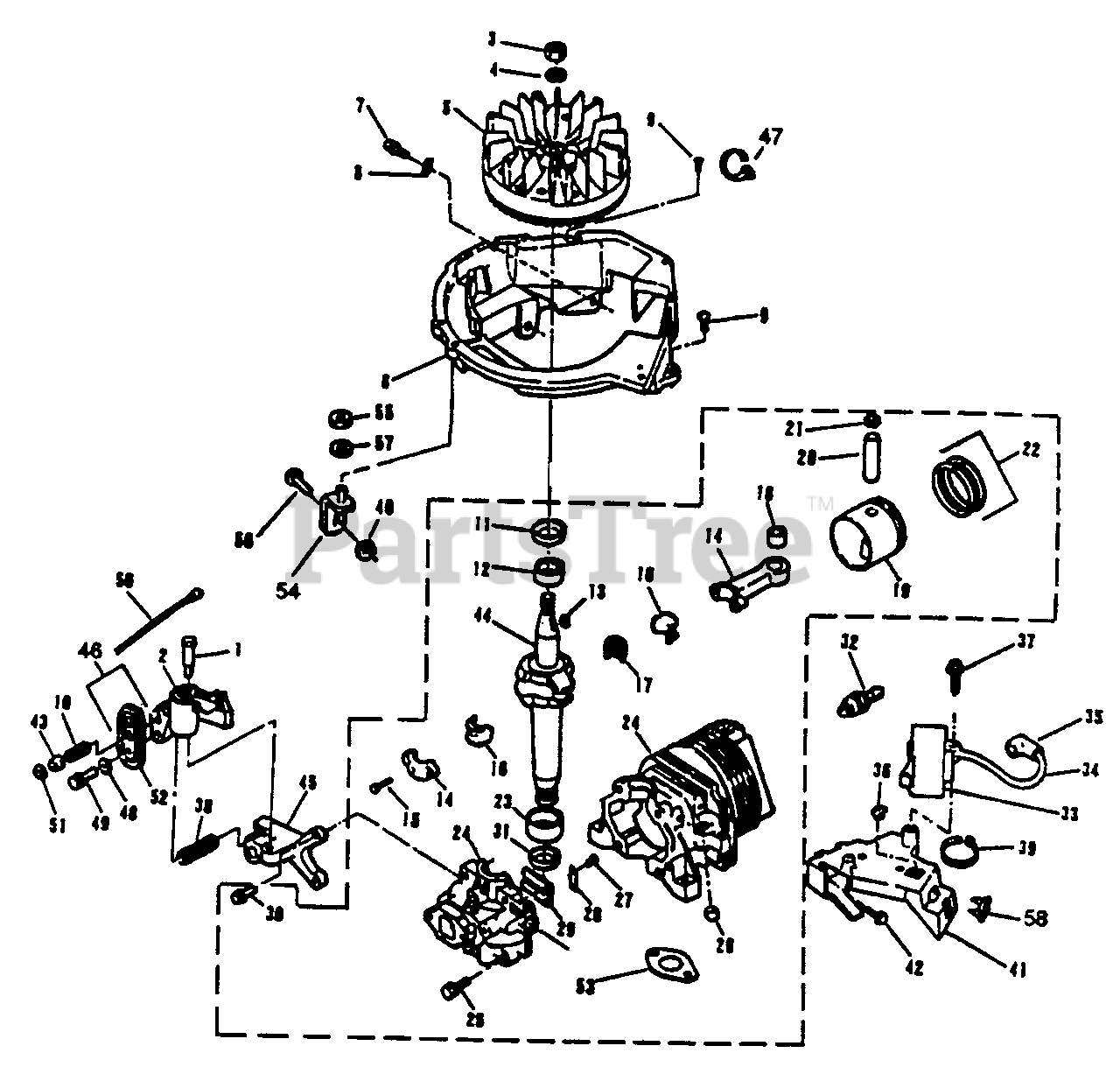

ENGINE MODELS: 680527 Parts Diagram

  • Title

1

Lawn-Boy 613529

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$13.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 682683

Brake Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 130743

Nut-Flywheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 6

0

4

Lawn-Boy 316959

Lockwasher
(Superseded to 325-36)

Note: Important Note: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 683580

Flywheel Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$318.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 612427

Base-Shroud

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 609947

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611191

Clip-"J"

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 609808

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611214

Spring-Cable Return

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 611396

Oil Seal-Upper

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 681830

Bearing-Main-Upper

Note: Important Note: Replacement parts may not always be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 607199

Key-Flywheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 9

0

Lawn-Boy 682677

Piston & Connecting Rod Asy. (Inc. 14-22)
(Superseded to 92-4925)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 682970

Connecting Rod Assy (Inc. 15-18)
(Superseded to 92-4921)

Note: Important Note: Replacement parts may not always be available in matching colors.

$241.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 611393

Screw-Cap

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 677982

Liner Split

Note: Important Note: Replacement parts may not always be available in matching colors.

$46.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 683911

Needle Bearing Set

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, Qty 5

0

18

Lawn-Boy 679144

Bearing Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 682986

Piston & Ring Set (Inc. 20-22)
(Superseded to 92-4923)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

Note: Important Note: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 303712

Retaining Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 11

0

22

Lawn-Boy 681737

Ring Set

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 681831

Bearing-Main-lower

Note: Important Note: Replacement parts may not always be available in matching colors.

$24.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 683702

Cylinder & Crankcase Cover Asy. (Inc. 25-30)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 610372

Sealant-Cyl. To Crankcase

Note: Important Note: Replacement parts may not always be available in matching colors.

$27.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 613110

Screw-Cover to Crankcase

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 609123

Plug

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 612872

Screw-Reed to C'case Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 5

0

28

Lawn-Boy 602587

Plate-Reed Hold Down

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 602588

Reed

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 613233

Screw-Brake Mounting Bkt.

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 611396

Oil Seal-Lower

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 614009

Spark Plug

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

33

Lawn-Boy 683215

C.D. Ignition Module & Lead Asy (Inc. 34-35)
(Superseded to 100-2948)

Note: Important Note: Replacement parts may not always be available in matching colors.

$125.99

$

In Stock, only 1 left!

0

34

Lawn-Boy 681678

High Tension Lead & Cvr (Inc. 35)

Note: Important Note: Replacement parts may not always be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 684698

Cover & Terminal Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 605120

Grommet

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 9

0

37

Lawn-Boy 607526

Screw-C.D. Mounting
(Superseded to 32105-12)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 611211

Spring-Brake

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 614249

Tie Strap

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

40

Lawn-Boy 608311

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

41

Lawn-Boy 613073

Bracket-C.D. Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 614343

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

43

Lawn-Boy 611509

Actuator-Brake Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

44

Lawn-Boy 610747

Crankshaft
(Superseded to 94-5713)

Note: Important Note: Replacement parts may not always be available in matching colors.

$292.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 611192

Bracket-Brake

Note: Important Note: Replacement parts may not always be available in matching colors.

$129.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 683968

Switch Assembly (Inc. 47-52)
(Superseded to 93-4307)

Note: Important Note: Replacement parts may not always be available in matching colors.

$50.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 317893

Tie Strap

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 306407

Washer
(Superseded to 3256-22)

Note: Important Note: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

49

Lawn-Boy 609891

Screw
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 683821

Lead Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 611213

Retainer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

52

Lawn-Boy 683819

Case Assembly-Only
(Superseded to 93-4301)

Note: Important Note: Replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 609420

Exhaust Gasket
(Superseded to 93-1233)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 6

0

54

Lawn-Boy 683581

Brace Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

56

Lawn-Boy 603014

Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 306407

Washer
(Superseded to 3256-22)

Note: Important Note: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

58

Lawn-Boy 609900

Speed Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.49

$

Usually ships in 3-6 days

0
