680523 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) HOUSING AND SHROUD MODEL: 680523 Parts Diagram

Walk-Behind Mower

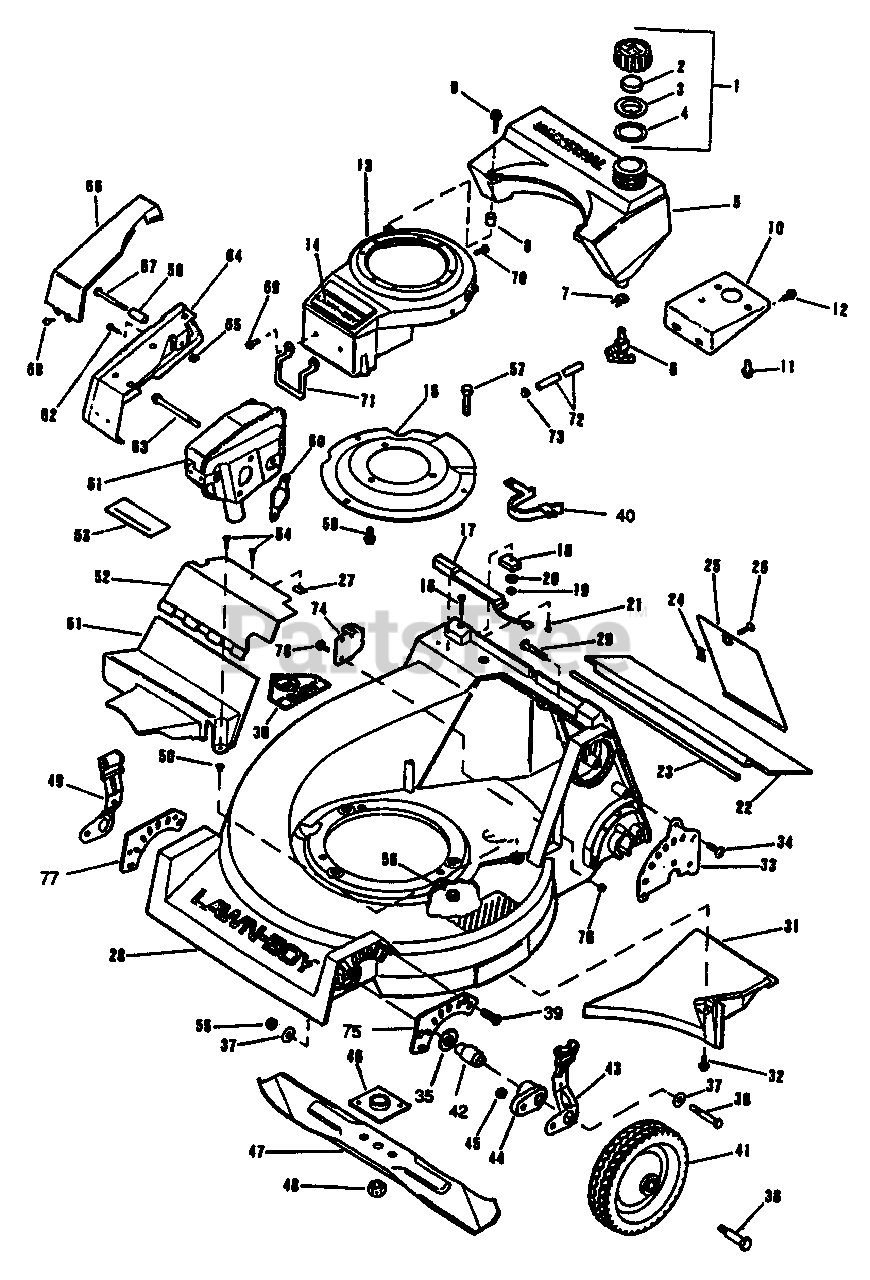

HOUSING AND SHROUD MODEL: 680523 Parts Diagram

  • Title

1

Lawn-Boy 684106

Fuel Cap Assy (Inc. 2-4)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 609150

Baffle

Note: Important note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 11

0

3

Lawn-Boy 614271

Baffle-Cover

Note: Important note: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 613311

Gasket

Note: Important note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

Lawn-Boy 684314

Fuel Tank Assy (Inc. 5-8)
(Superseded to 684516)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 613817

Fuel Tank
(Superseded to 684516)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 677052

Valve and Screen

Note: Important note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 312387

Clamp

Note: Important note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 8

0

8

Lawn-Boy 614022

Spacer

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 613912

Screw-Fuel Tank to Shroud

Note: Important note: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 613819

Fuel Tank Mounting Bracket

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 700094

Screw-Fuel Tank to Bracket
(Superseded to 112-0167)

Note: Important note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, only 4 left!

0

12

Lawn-Boy 613337

Screw-Tank Bracket to Block

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 684311

Shroud & Applique Assy (Inc. 14)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 614041

Applique

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 613206

Engine Mtg. Plate

Note: Important note: Replacement parts may not always be available in matching colors.

$126.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 303724

Screw-Magnet to Housing

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 684366

Bag Interlock Switch

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 684193

Magnet

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 130450

Nut-Magnet to Housing

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 613625

Lockwasher-Magnet to Hsg

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 613749

Screw-Interlock Switch to Hsg

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 613322

Trailing Shield
(Superseded to 99-6408)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 610026

Trailing Shield Pivot Rod

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 613340

Speed Nut

Note: Important note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 613346

Access Door

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 613339

Screw-Access Door to Hsg

Note: Important note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 613341

Speed Nut

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 684687

Housing Assy (Inc. 29-32)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 613321

Handle Mounting Bolt

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 6

0

31

Lawn-Boy 613289

Baffle-Chute Floor

Note: Important note: Replacement parts may not always be available in matching colors.

$39.99

$

Usually ships in 3-6 days

0

Lawn-Boy 613910

Washer-R.H. Handle Bolt
(Superseded to 5-3177)

Note: Important note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 608418

Screw-Baffle to Housing
(Superseded to 46-6811)

Note: Important note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

33

Lawn-Boy 613323

Height Adjust Plate

Note: Important note: Replacement parts may not always be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 613381

Screw-Plate to Housing

Note: Important note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 1 left!

0

35

Lawn-Boy 614163

Flat Washer

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 613320

Screw-Front Height Adjust Arm

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 610361

Washer-Front Height Adjust Arm

Note: Important note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 614028

Shoulder Bolt-Front Wheel

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 614166

Flat Head Screw

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 613809

Belt Guide-Engine

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 683464

Wheel & Tire Assy

Note: Important note: Replacement parts may not always be available in matching colors.

$79.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 614161

Front Height Adjust Bushing

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 684220

Knob & Spring Assy-Front L.H.

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 613917

Front Height Adjust Arm

Note: Important note: Replacement parts may not always be available in matching colors.

$91.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 610358

Nut-Front Wheel Bolt

Note: Important note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

46

Lawn-Boy 677525

Collar and Plate

Note: Important note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 1 left!

0

47

Lawn-Boy 683682

21" Blade
(Superseded to 612543-03)

Note: Important note: Replacement parts may not always be available in matching colors.

$29.99

$

In Stock, only 4 left!

0

48

Lawn-Boy 603164

Locknut-Blade
(Superseded to 121-3611)

Note: Important note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 684219

Knob & Spring Assy-Front R.H.

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 611380

Grommet

Note: Important note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

51

Lawn-Boy 613532

Lower Drive Cover

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 684547

Upper Drive Cvr w/Decal (Inc. 53)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 613840

Decal-Warning

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 608997

Screw-Drive Cover to Housing

Note: Important note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 2 left!

0

55

Lawn-Boy 603773

Nut-Height Adjust Arm

Note: Important note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

56

Lawn-Boy 608311

Locknut-Mting Plate to Housing

Note: Important note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 611774

Screw-Mting Plate to Housing

Note: Important note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

58

Lawn-Boy 613371

Spacer-Muffler Guard

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 613483

Screw-Mounting Plate to Engine

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 613266

Exhaust Gasket

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 684091

Muffler
(Superseded to 684579)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 700056

Screw-Muffler Guard

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 613282

Screw-Muffler

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 684299

Muffler Guard Assy (Inc. 65-66)

Note: Important note: Replacement parts may not always be available in matching colors.

$130.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 613329

Pushnut

Note: Important note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

66

Lawn-Boy 613760

Muffler Cover

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

67

Lawn-Boy 613372

Screw-Muffler Guard

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

68

Lawn-Boy 613576

Screw-Muffler Guard

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

69

Lawn-Boy 613814

Hex Flange Head Screw

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

70

Lawn-Boy 613281

Screw-Shroud to Engine
(Superseded to 3274-31)

Note: Important note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

71

Lawn-Boy 613816

Spark Plug Guard

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

72

Lawn-Boy 613866

Fuel Line

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

73

Lawn-Boy 613489

Clamp-Fuel Line to Carburetor

Note: Important note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

74

Lawn-Boy 614522

Cable Anchor

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

75

Lawn-Boy 614165

Front Height Adj. Plate-LH.

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

76

Lawn-Boy 602315

Locknut-Cable Anchor to Hsg

Note: Important note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

77

Lawn-Boy 614164

Front Height Adj. Plate-R.H.

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

78

Lawn-Boy 700748

Screw-Cable Bracket to Hsg

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available
