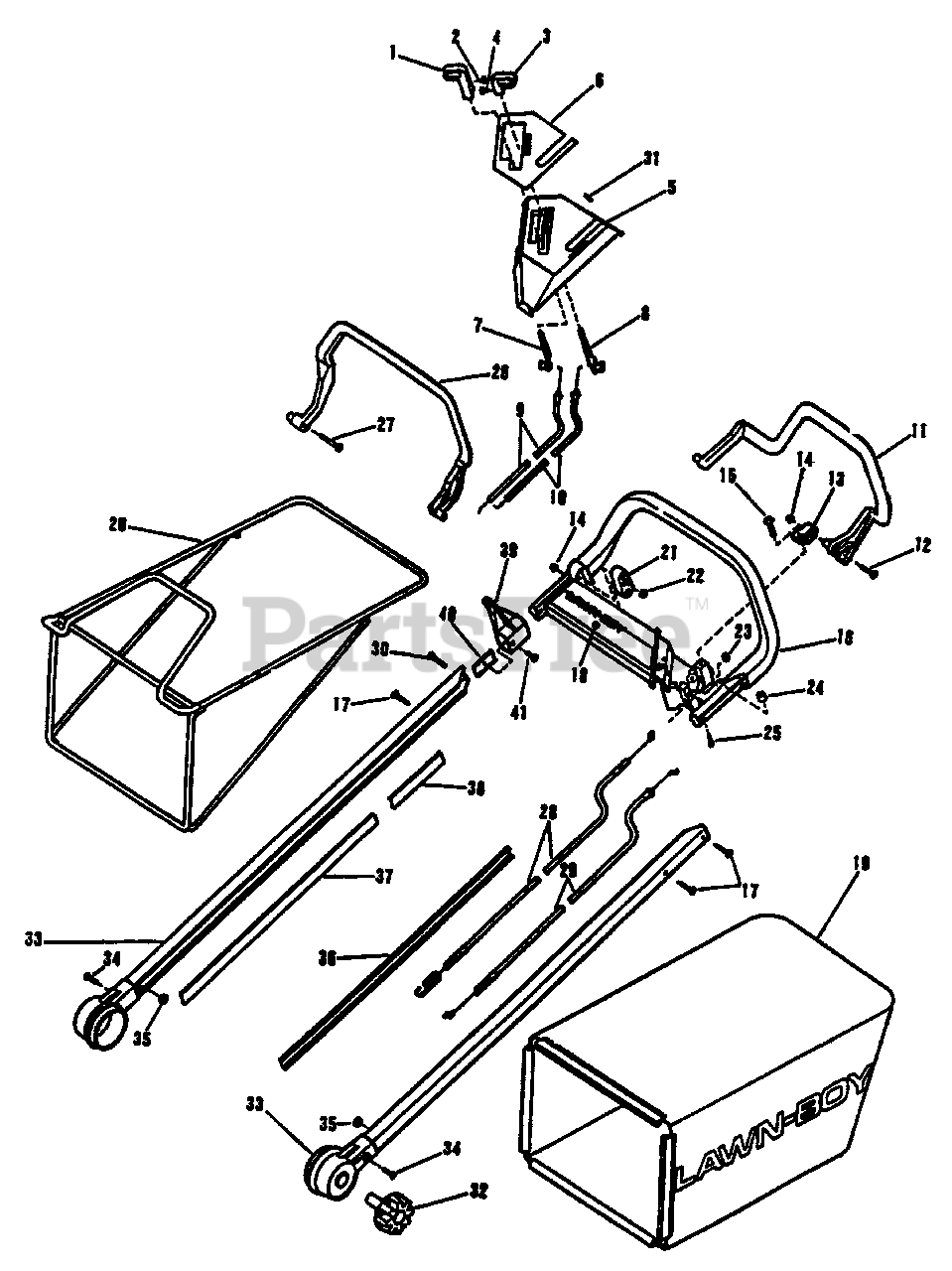

680523 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) HANDLE MODEL: 680523 Parts Diagram

Walk-Behind Mower

HANDLE MODEL: 680523 Parts Diagram

  • Title

1

Lawn-Boy 684400

Knob Assy-Gear Select (Inc. 2)

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 614013

Set Screw

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 684399

Knob Assy-Throttle (Inc. 4)

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 614013

Set Screw

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 684427

Upper Cover Assy (Inc. 6)

Note: Important note: Replacement pans may not always be available in matching colors.

$210.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 614567

Plate

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 684445

Gear Select Lever

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 684446

Throttle Lever

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 684212

Cable Assembly-Gear Select

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 684210

Cable Assembly-Throttle

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 613417

Self-propelled Bail

Note: Important note: Replacement pans may not always be available in matching colors.

$167.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 613553

Screw

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 613409

Bail Pivot

Note: Important note: Replacement pans may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 613406

Locknut

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 613551

Screw

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 684581

Handle & Decal Assy (Inc. 17-18)

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 613023

Thread Forming Screw

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 613980

Decal-Lawn-Boy

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

19

Rear Grass Bag (Accessory Part #684189)

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 684130

Frame

Note: Important note: Replacement pans may not always be available in matching colors.

$237.45

$

In Stock, only 1 left!

0

21

Lawn-Boy 613412

Bail Block

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 602315

Nut

Note: Important note: Replacement pans may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

23

Lawn-Boy 613550

Nut-Self-propelled Cable

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 700790

Bumper

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 613549

Screw

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 613416

Engine Brake Bail

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 613555

Screw

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 684697

Cable Assy-Self-propelled

Note: Important note: Replacement pans may not always be available in matching colors.

$128.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 684209

Cable Assy-Engine Brake

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 613405

Screw

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 145482

Plug

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 613358

Knob-Handle Mounting

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 634695

Handle Shaft Assy (Inc. 34-35)
(Superseded to 684695)

Note: Important note: Replacement pans may not always be available in matching colors.

$204.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 613401

Screw

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 613406

Nut

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 614518

Handle Insert-Cable Side

Note: Important note: Replacement pans may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 613408

Handle Insert

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 613601

Handle Insert

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 684151

Rope Guide

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 613393

Nut Plate

Note: Important note: Replacement pans may not always be available in matching colors.

$8.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 611499

Screw

Note: Important note: Replacement pans may not always be available in matching colors.

$

$

Not available
