680522 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) CARBURETOR GROUP MODELS: 680522 Parts Diagram

Walk-Behind Mower

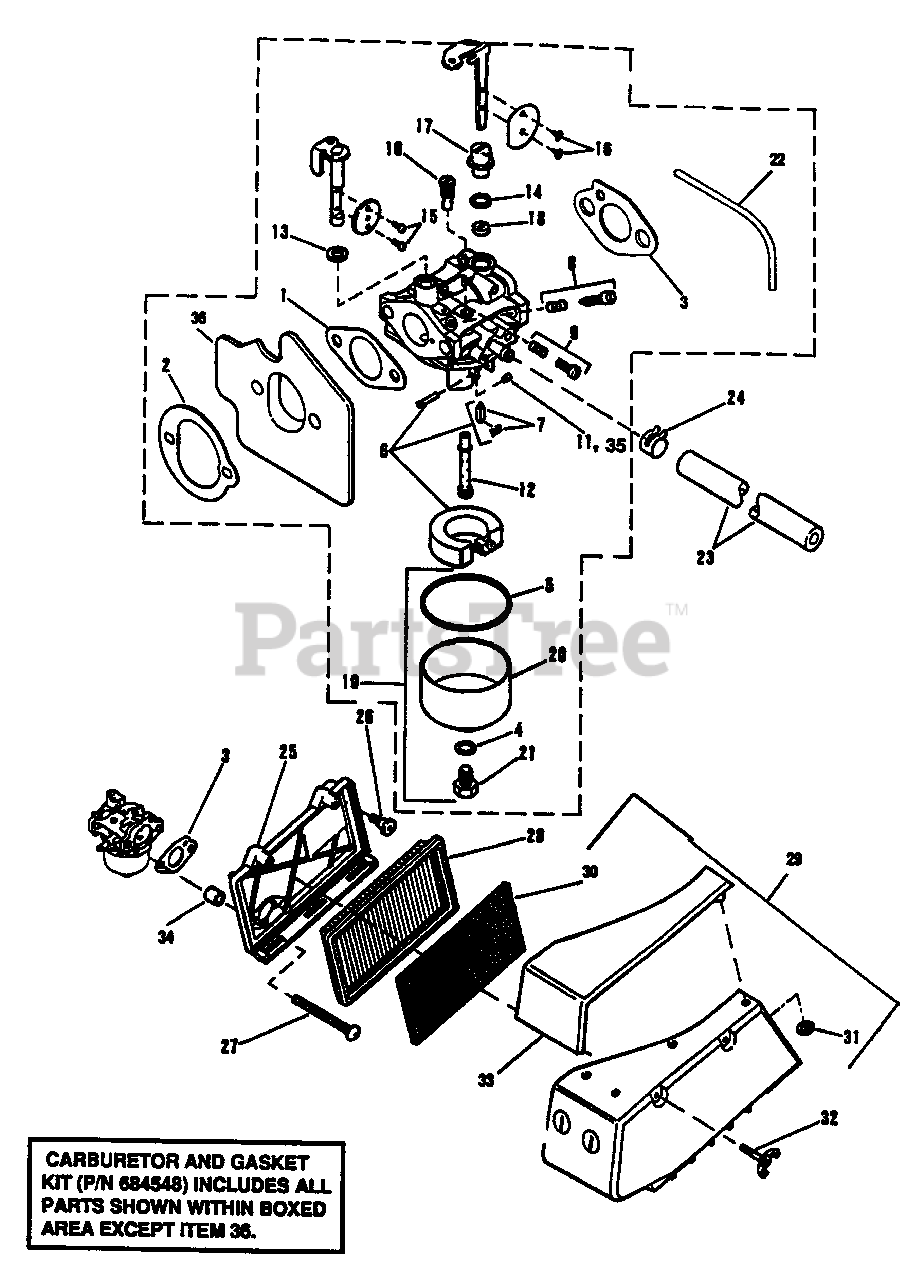

CARBURETOR GROUP MODELS: 680522 Parts Diagram

  • Title

Lawn-Boy 684548

Carb & Gasket Kit (Inc. 1-22)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

1

Lawn-Boy 613180

Gasket-Carburetor to Spacer

Note: Important note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 613181

Gasket-Spacer to Engine

Note: Important note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 613748

Gasket-Air Filter Base

Note: Important note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 6

0

Lawn-Boy 684280

Gasket Kit (Inc. 4-5)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 613641

Gasket-Fuel Retainer

Note: Important note: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 613642

Gasket-Fuel Bowl

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 684281

Float & Needle Kit (Inc. 7)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 684282

Needle & Clip

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 684283

Idle Needle & Spring Kit

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 684284

Idle Speed Kit

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 613647

Pilot Jet

Note: Important note: Replacement parts may not always be available in matching colors.

$20.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 613918

Main Jet

Note: Important note: Replacement parts may not always be available in matching colors.

$28.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 613649

Nozzle

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 613650

Thottle Shaft Seal

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 613651

Choke Shaft Seal

Note: Important note: Replacement parts may not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 613655

Screw-Throttle Valve

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 613656

Screw Choke Valve

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 613657

Upper Choke Shaft Pivot

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 613658

Lower Choke Shaft Pivot

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 684478

Bowl Kit (Inc. 20-21)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 614175

Fuel Bowl

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 614176

Screw-Bowl Retainer

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684280

Gasket Kit

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 614239

Carb Vent

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 613866

Gas Line

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 613489

Hose Clamp

Note: Important note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 613348

Air Filter Base

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 613353

Bolt

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 613327

Screw-Carburetor to Engine

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 613361

Air Filter

Note: Important note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 4 left!

0

29

Lawn-Boy 684563

Air Filter Cover Assy (Inc. 30-33)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 614245

Pre-Filter

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 613329

Pushnut

Note: Important note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 614140

Wing Screw

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 613761

Air Box Cover

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 613352

Spacer

Note: Important note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

35

Lawn-Boy 613893

Main Jet-High Altitude

Note: Important note: Replacement parts may not always be available in matching colors. Above 3, 500 feel

$

$

Not available

36

Lawn-Boy 613262

Spacer

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available
