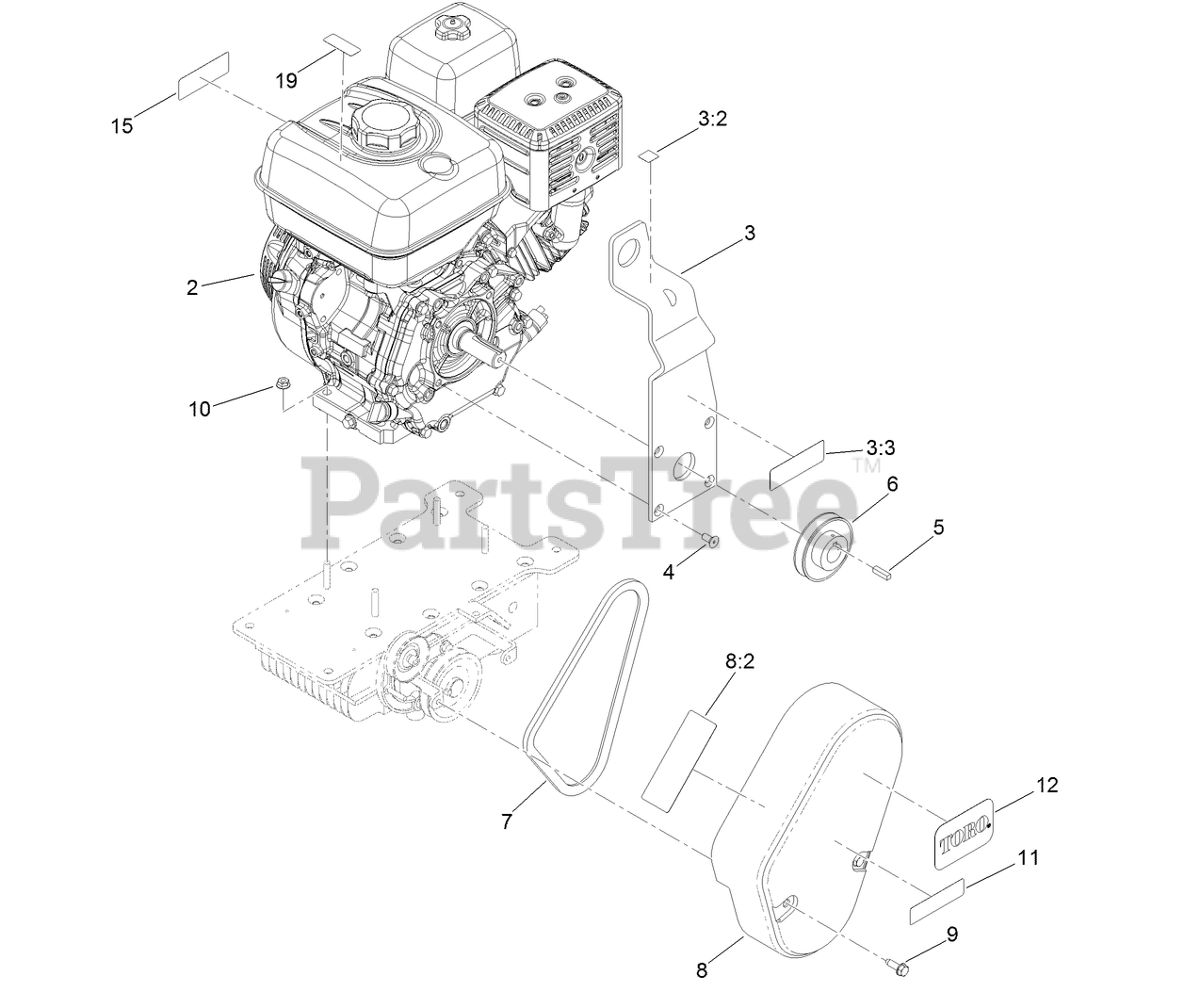

68051 (PT-46 PP) - Toro Power Trowel (SN: 413000000 - 999999999) Engine Assembly Parts Diagram

Power Trowel

Engine Assembly Parts Diagram

  • Title

2

ENGINE-HONDA, GX240

Note: Not serviced separately

$

$

Not available

2

ENGINE-HONDA, GX240

Note: Obtain parts from www.honda-engines.com

$

$

Not available

3

Toro 127-5586

PLATE-EYE, LIFT

$127.99

$

Usually ships in 3-6 days

0

3:2

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

3:3

Toro 117-4979

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

4

Toro ST80171

SCREW

$3.99

$

Usually ships in 3-6 days

0

5

Toro ST80674

KEY-SQUARE

$16.99

$

Usually ships in 3-6 days

0

6

Toro ST34834

SHEAVE

$75.99

$

Usually ships in 3-6 days

0

7

Toro ST35333

BELT-V

$96.99

$

Usually ships in 3-6 days

0

8

Toro 127-2801

BELT GUARD ASM

$225.99

$

Usually ships in 3-6 days

0

8:2

Toro 125-4933

DECAL-WARNING

$5.49

$

Usually ships in 3-6 days

0

9

Toro 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

10

Toro 32128-26

NUT-FLANGE

$6.49

$

Usually ships in 3-6 days

0

11

Toro 125-4932

DECAL

$

$

Currently unavailable

12

Toro 105-6971

DECAL

$8.99

$

Usually ships in 3-6 days

0

15

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

19

Toro 130-8322

DECAL-WARNING, ETHANOL

$2.49

$

Usually ships in 3-6 days

0
