680501 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) HOUSING AND SHROUD MODEL: 680501 Parts Diagram

Walk-Behind Mower

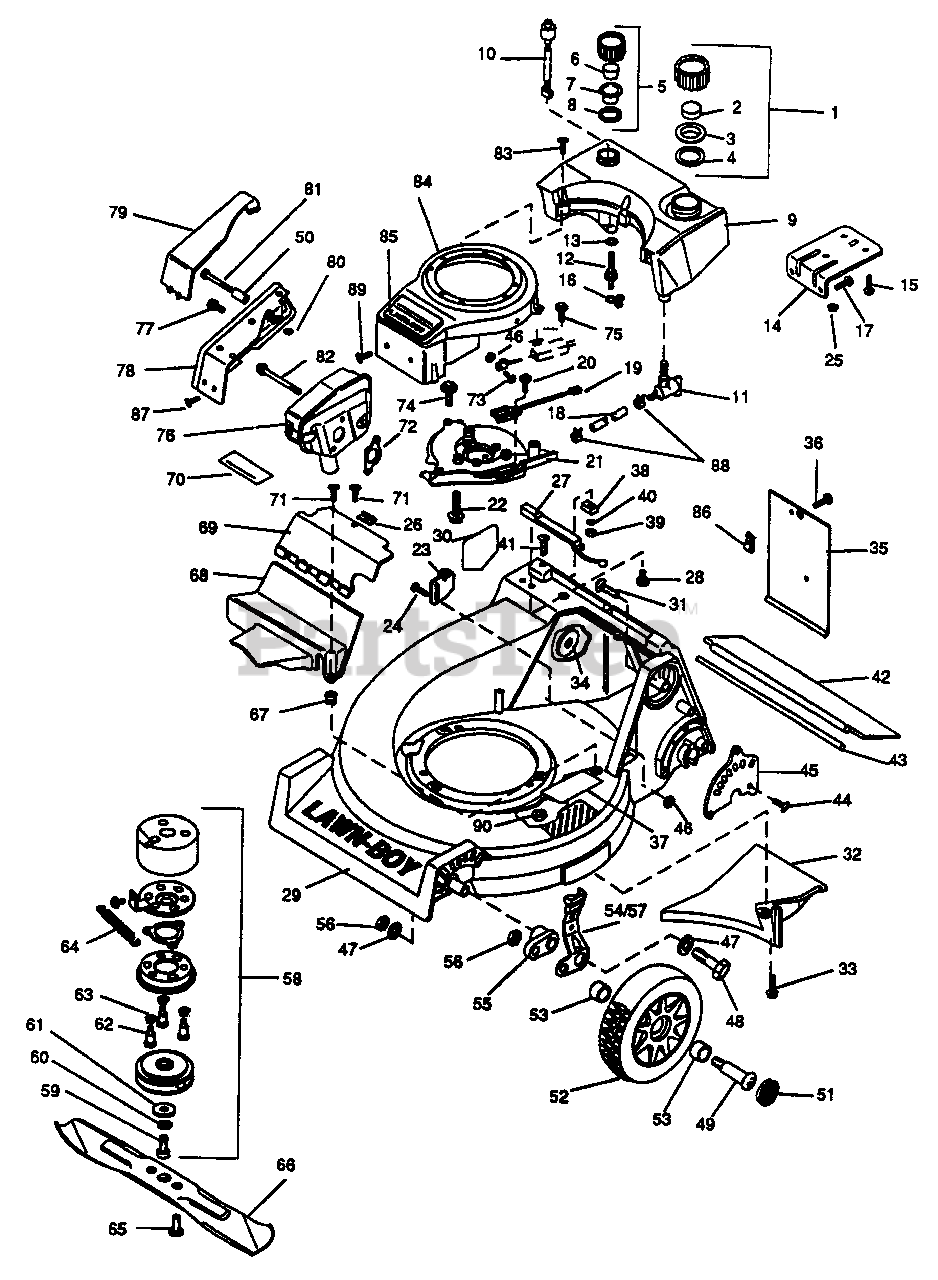

HOUSING AND SHROUD MODEL: 680501 Parts Diagram

  • Title

1

Lawn-Boy 684104

Fuel Cap Assembly (Inc. 2-4)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 609150

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 11

0

3

Lawn-Boy 614271

Baffle Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 613311

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 684105

Oil Cap Assembly (Inc. 6-8)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 614274

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 614272

Baffle Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 613313

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 684375

Fuel/Oil Tank (Inc. 10-13)
(Superseded to 93-1208)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 684376

Switch-Low Oil

Note: Important Note: Replacement parts may not always be available in matching colors.

$131.99

$

Usually ships in 3-6 days

0

Lawn-Boy 705137

Nut-Oil Switch

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 684093

Fuel Shut-Off Valve

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 684336

Oil Fitting Assy (Inc. 13)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 613948

O-Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 614173

Fuel Tank Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 614181

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 613516

Clamp-Oil Hose

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 613337

Screw-Tank Bracket to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 613531

Fuel Line

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 684368

Brake Interlock Switch
(Superseded to 98-2861)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 613504

Screw-Interlock Switch to Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 613273

Engine Mounting Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 613500

Screw-Mounting Plate to Engine

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 614522

Cable Anchor

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 700748

Screw-Anchor to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 700098

Nut-Hex Flange

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 613341

Speednut

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 684366

Switch Assy-Bag Lock

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 613749

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 684688

Housing Assy (Inc. 30-34)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1574.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 612284

Decal-Blade Contact Warning
(Superseded to 56-6270)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 613321

Handle Mounting Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 613289

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

34

Lawn-Boy 613910

Washer-R.H. Handle Mounting
(Superseded to 5-3177)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

35

Lawn-Boy 613346

Access Door

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 613339

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 613624

Decal-Foot Pad

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 684193

Magnet Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 130450

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 613625

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 303724

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 613322

Trailing Shield
(Superseded to 99-6408)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 610026

Rod-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 613381

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 1 left!

0

45

Lawn-Boy 614433

Height Adjust Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

47

Lawn-Boy 610361

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

48

Lawn-Boy 613320

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 614430

Bolt-Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 613371

Spacer-Muffler Guard

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 614428

Cap-Hub

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

52

Lawn-Boy 684645

Wheel & Tire Assy (Inc. 53)
(Superseded to 684777)

Note: Important Note: Replacement parts may not always be available in matching colors.

$59.99

$

In Stock, only 2 left!

0

53

Lawn-Boy 27-625

Bushing-Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

54

Lawn-Boy 684220

Knob & Spring Assy-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 613917

Front Height Adj Arm

Note: Important Note: Replacement parts may not always be available in matching colors.

$106.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 610358

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

57

Lawn-Boy 684219

Knob & Spring Assy-R.H. (Not Shown)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 684092

Clutch & Brake Assy (Inc. 59-64)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 611417

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 611413

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 611412

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$34.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 611399

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 611418

Spring-Compression

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 611415

Spring-Extension

Note: Important Note: Replacement parts may not always be available in matching colors.

$67.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 611398

Screw-Blade

Note: Important Note: Replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

66

Lawn-Boy 683683

21" Blade

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

67

Lawn-Boy 611380

Grommet

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

68

Lawn-Boy 613532

Lower Drive Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

69

Lawn-Boy 684337

Upper Drive Cover w/Decal (Inc. 70)
(Superseded to 684329)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

70

Lawn-Boy 613840

Decal-Warning

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

71

Lawn-Boy 609807

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

72

Lawn-Boy 613266

Exhaust Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

73

Lawn-Boy 611318

Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

74

Lawn-Boy 612640

Screw-Mtg Plate To Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

75

Lawn-Boy 611774

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

76

Lawn-Boy 684579

Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

77

Lawn-Boy 700056

Screw-Muffler Guard

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

78

Lawn-Boy 684157

Muffler Guard Assy (Inc. 79-80)

Note: Important Note: Replacement parts may not always be available in matching colors.

$203.99

$

Usually ships in 3-6 days

0

79

Lawn-Boy 613378

Muffler Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

80

Lawn-Boy 613329

Pushnut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

81

Lawn-Boy 613372

Screw-Muffler Guard

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

82

Lawn-Boy 613282

Screw-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

83

Lawn-Boy 613330

Screw-Fuel Tank

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

84

Lawn-Boy 684429

Shroud & Applique Assy (Inc. 85)
(Superseded to 93-1219)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

85

Lawn-Boy 614041

Applique

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

86

Lawn-Boy 613340

Speednut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

87

Lawn-Boy 613576

Screw-Muffler Guard

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

88

Lawn-Boy 613489

Clamp-Fuel Line

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

89

Lawn-Boy 613281

Screw-Shroud
(Superseded to 3274-31)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

90

Lawn-Boy 608311

Locknut-Mounting Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0
