68049 (PT-36 PP) - Toro Power Trowel (SN: 404320000 - 410199999) Gearbox Assembly No. 125-4991 Parts Diagram

Power Trowel

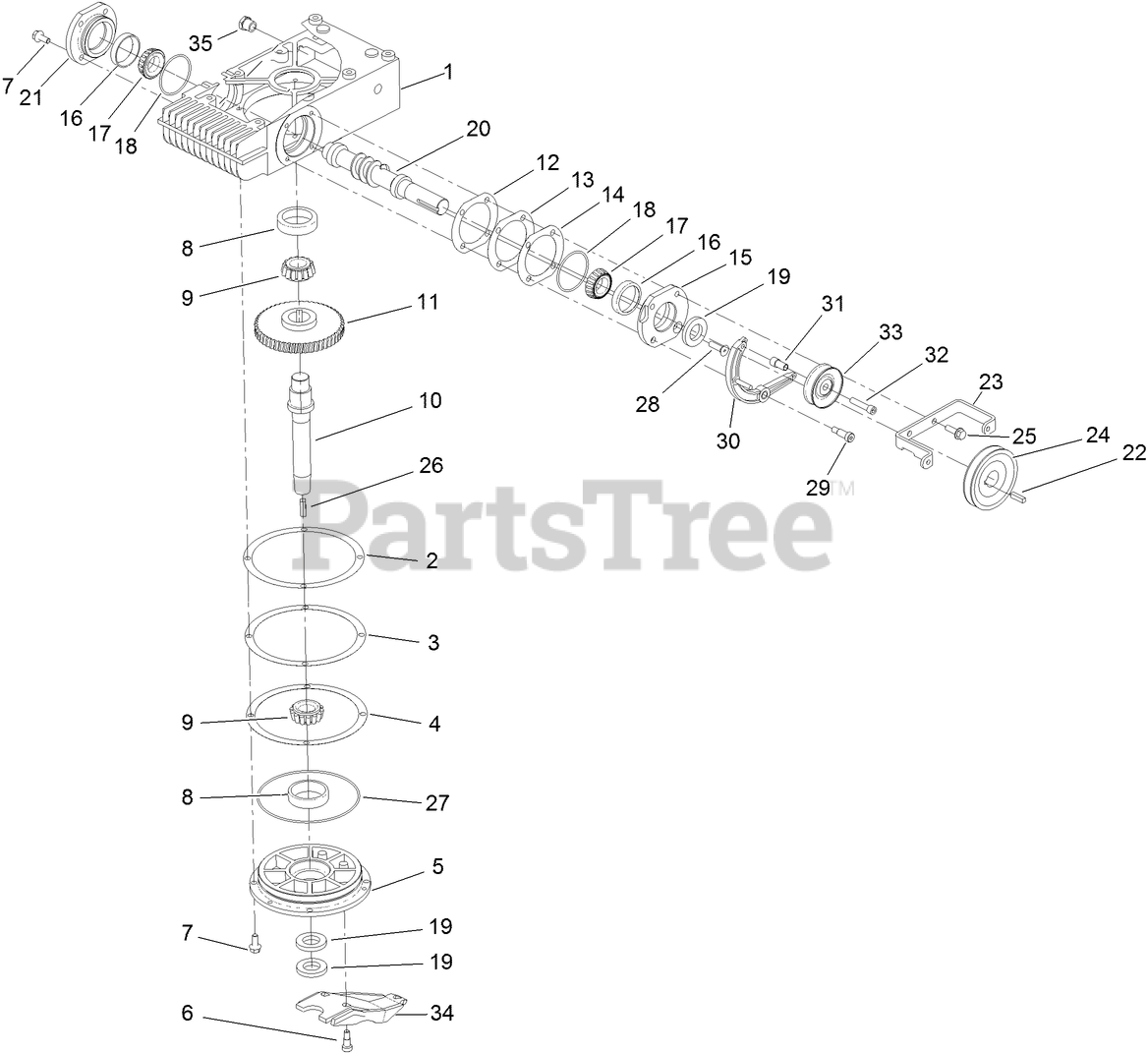

Gearbox Assembly No. 125-4991 Parts Diagram

  • Title

1

Toro ST39547

GEARCASE

$1063.99

$

In Stock, only 1 left!

0

2

Toro ST47333

SHIM-COVER, BOTTOM (.001 INCH)

$10.99

$

Usually ships in 3-6 days

0

3

Toro ST47334

SHIM-COVER, BOTTOM (.005 INCH)

$5.49

$

Usually ships in 3-6 days

0

4

Toro ST47335

SHIM-COVER, BOTTOM (.010 INCH)

$9.99

$

Usually ships in 3-6 days

0

5

Toro ST42720

CAP-BEARING, BOTTOM

$189.99

$

Usually ships in 3-6 days

0

6

Toro ST80285

SCREW-HSBH

$10.99

$

Usually ships in 3-6 days

0

7

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

8

Toro 127-5561

BEARING-CUP

$158.99

$

Usually ships in 3-6 days

0

9

Toro 127-5560

BEARING-CONE

$217.99

$

Usually ships in 3-6 days

0

10

Toro ST42715

SHAFT-OUTPUT

$486.99

$

Usually ships in 3-6 days

0

11

Toro ST39009

GEAR-WORM

$496.99

$

Usually ships in 3-6 days

0

12

Toro ST47336

SHIM-COVER, SIDE (.001 INCH)

$4.99

$

Usually ships in 3-6 days

0

13

Toro ST47337

SHIM-COVER, SIDE (.005 INCH)

$2.49

$

Usually ships in 3-6 days

0

14

Toro ST47338

SHIM-COVER, SIDE (.010 INCH)

$3.49

$

Usually ships in 3-6 days

0

15

Toro ST42718

COVER-BEARING, SHEAVE END

$150.99

$

Usually ships in 3-6 days

0

16

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0

17

Toro 254-94

BEARING-CONE, TAPERED

$9.99

$

In Stock, Qty 20+

0

18

Toro 400-0261

O-RING

$4.49

$

Usually ships in 3-6 days

0

19

Toro ST39014

SEAL-SHAFT

$29.99

$

Usually ships in 3-6 days

0

20

Toro ST42712

SHAFT-INPUT

$506.99

$

Usually ships in 3-6 days

0

21

Toro ST42719

COVER-BEARING, BLIND END

$171.99

$

Usually ships in 3-6 days

0

22

Toro 5-7280

KEY

$5.99

$

In Stock, Qty 11

0

23

Toro ST42787-01

BRACKET-GUARD, BELT

$37.99

$

Usually ships in 3-6 days

0

24

Toro ST34835

SHEAVE

$99.99

$

Usually ships in 3-6 days

0

25

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

26

Toro ST80744

KEY-HARDENED

$21.99

$

Usually ships in 3-6 days

0

27

Toro ST32272

O-RING

$8.49

$

Usually ships in 3-6 days

0

28

Toro ST80105

SCREW

$8.99

$

Usually ships in 3-6 days

0

29

Toro 119-6915

SCREW-SHOULDER, HSH

$10.99

$

Usually ships in 3-6 days

0

30

Toro 127-1662

CLUTCH LEVER ASM

$71.99

$

In Stock, only 2 left!

0

31

Toro 127-7628

SPACER-IDLER, TROWEL

$19.99

$

Usually ships in 3-6 days

0

32

Toro 3274-83

SCREW-HSH

$3.99

$

In Stock, only 2 left!

0

33

Toro 127-7629

IDLER-V, TROWEL

$27.99

$

Usually ships in 3-6 days

0

34

Toro 125-8707-01

LEVER-TILT

$93.99

$

Usually ships in 3-6 days

0

35

Toro ST34096

PLUG-SIGHT, OIL

$52.99

$

Usually ships in 3-6 days

0
